Collaboration systems

}

QR1 DSP w/ AEC & USB Card Solaro QR1-UC Xilica

Product Code: XI-QR1-SOLARO-UC

Brand
Xilica
RRP $3,799.00


Quantity In Cart:
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
No refurbished products
5 Year
Technical Specifications
Brands Xilica
Product type Signal Processor
  • Details
  • Downloads
  • Where to Buy
  • Ordering

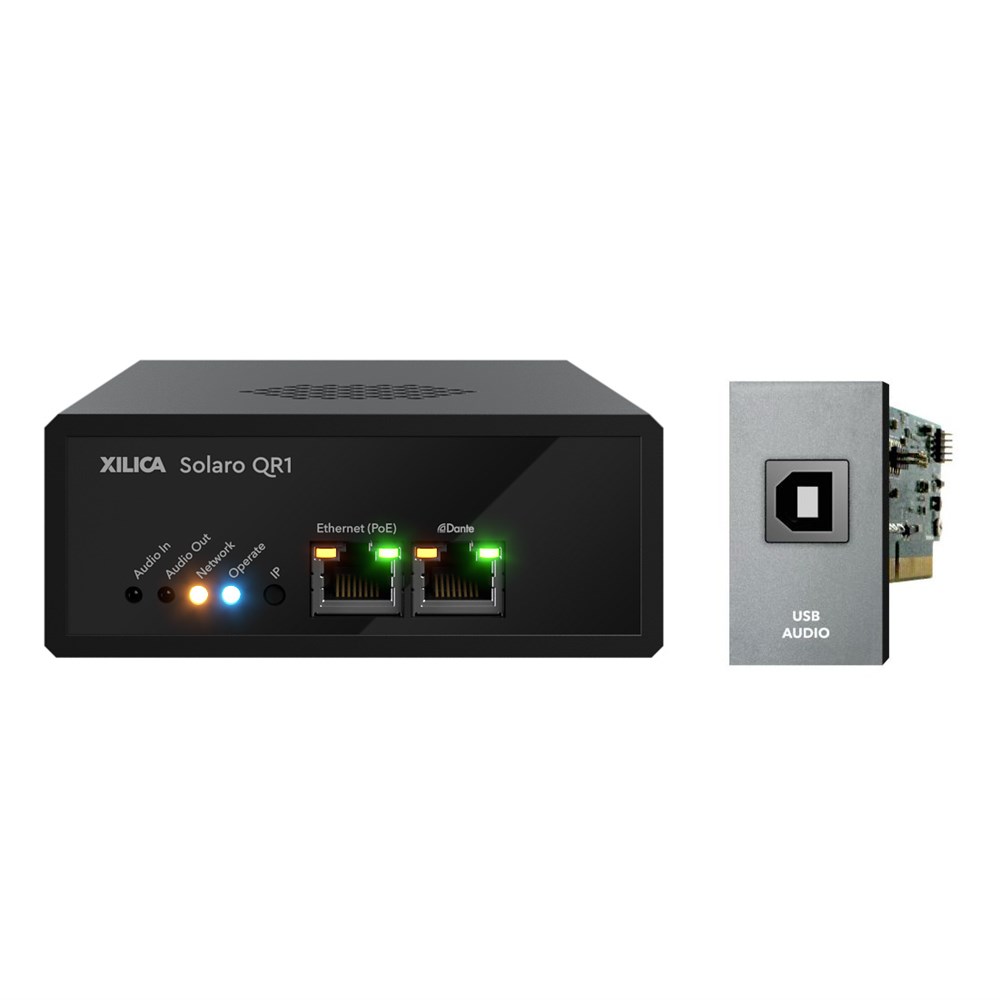

QR1-SOLARO



pre-installed with HearClear AEC and 2x2 USB I/O card.

Includes surface-mount bracket

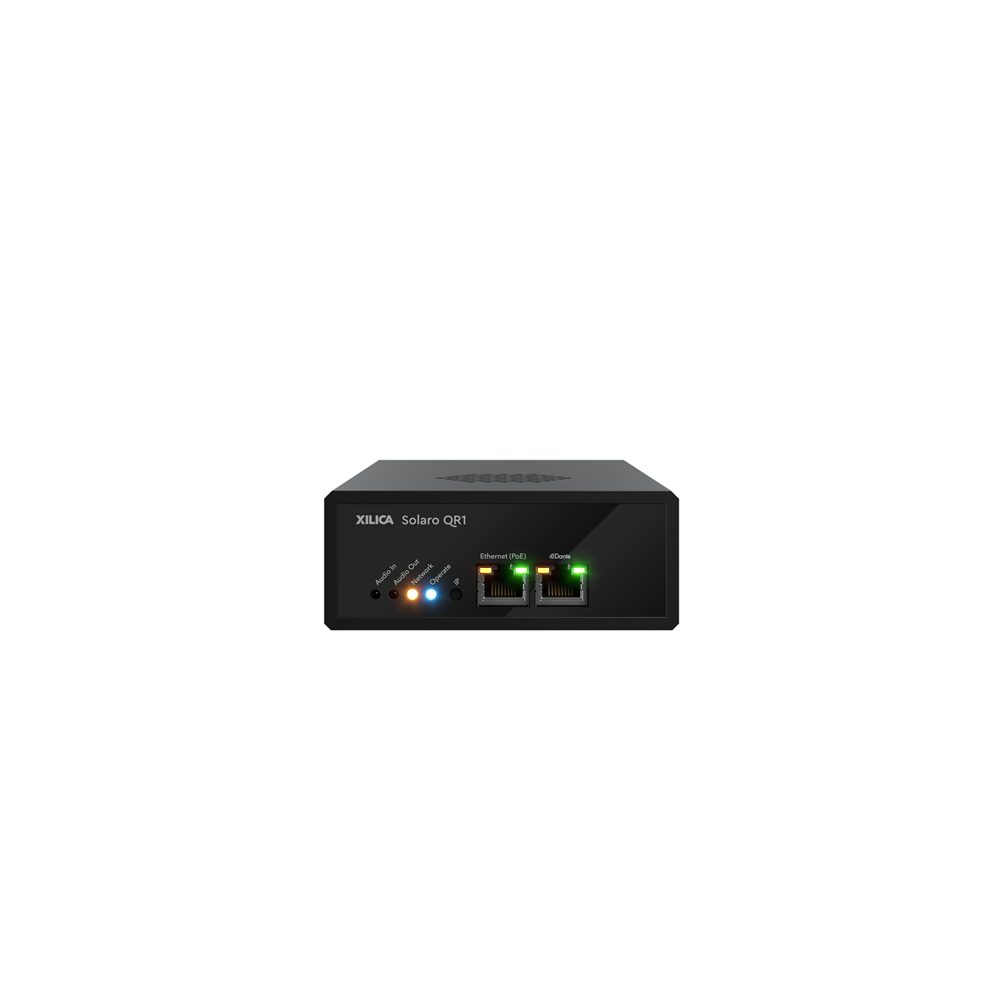

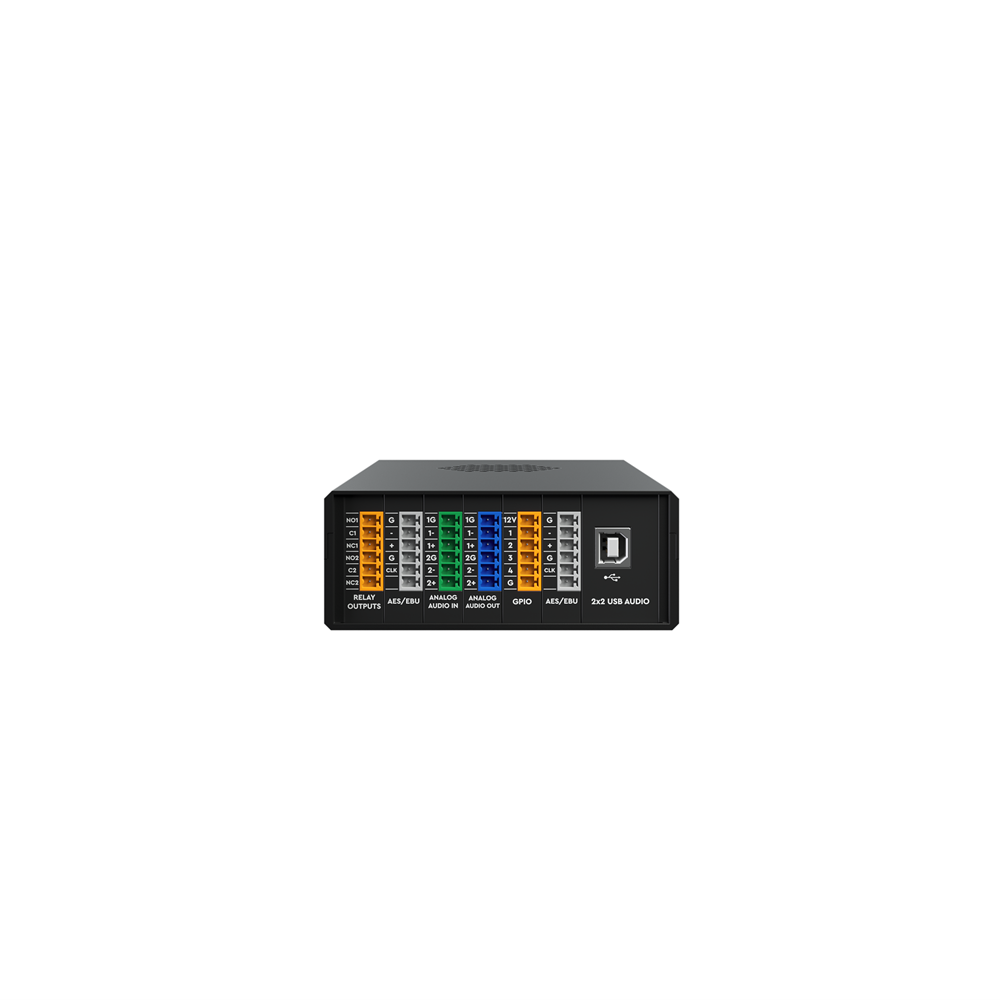

Deliver exceptional audio quality to every space with the ultra-small-footprint Solaro QR1, a PoE-powered digital signal processor with eight user-configured I/O card slots. This open-architecture product can be populated with all combinations of Solaro Series I/O card, offering capabilities including analog audio, USB (with volume/mute status sync), GPIO, relay control and AES/EBU digital audio. Additionally, Solaro QR1 connects to an installed network over standard CatX cable with in-built 4x4 Dante audio networking, for streamlined connection of ceiling microphones and other IP-based audio products. With license-activated HearClearTM acoustic echo cancellation and an integrated control engine capable of Lua scripting, Solaro QR1 is an ideal solution for individual conference rooms, classrooms and legislative spaces at an exceptional price-point.

Mounting easily under a table, behind a display or in a drop-ceiling, Solaro QR1's small size and included installation brackets enable exceptional audio quality to be deployed in rooms that previously couldn't accommodate a DSP. With its single Ethernet port for power and data, and a dedicated DanteTM networked audio port, Solaro QR1 caters to enterprise, education and government customers who demand physical separation of audio and their traditional installed CatX network. Designed around collaboration and conferencing, Solaro QR1 offers Microsoft Teams volume and mute status sync over HID (with XC-SUB) for a flawless user experience.

BENEFITS

  • Enable frictionless communication anywhere with the ultra-small-footprint Solaro QR1, mounting under tables, behind a display or in a dropped ceiling and powered by PoE.

  • Support BYOD in collaboration spaces with Gio USB and Gio Bluetooth connectivity, and create a superior user-experience with Microsoft Teams volume/mute status sync for USB peripherals.

  • Eliminate third-party control systems with no-code programming and leverage pre-built DSP designs for turn-key deployment.

  • Lower total-cost-of-ownership with agile, modular I/O that scales to meet functional demand.

  • Harness Xilica HearClear™ acoustic echo cancellation to eliminate noise and echo on conference calls.

Specifications

  • THD+N (22Hz to 22kHz): 0.002% (1kHz @ +4dBu)
  • EIN: <125dBu, unweighted (20Hz to 20kHz)
  • Dynamic Range: 110dB, unweighted
  • Propagation Delay: 4ms
  • Crosstalk, input to input, 1kHz: <110dB
  • Sampling Rate: 48kHz
  • A/D-D/A Converters: 32-bit
  • Acoustic Echo Cancellation: Requires HearClear™ license; 250ms latency at eight channels, 100ms at 16 channels
  • BTU/Heat Load: 44 BTU/hr
  • Processor Type: 40-bit floating point
  • Phantom Power: +48VDC (with XC-SML) up-to 75mA maximum
  • Power Supply: IEEE 802.3af, Class 0 Power-over-Ethernet
  • Power Consumption: 13W maximum
  • Ambient Operating Temperature: 32-104°F (0–40°C)
  • Humidity: 0–98%, non-condensing
  • Altitude: 0-6,600 feet (0–2000 Meters) MSL
  • Network Connections: 2x RJ45 (≥Cat 5e) including dedicated 1000Mbps Dante™ connection and, separate Ethernet port for control and Power-over-Ethernet
  • USB (with XC-SUB):
    • Bit depth: 16-bit
    • Number of channels: 2×2, send and receive
    • Driver sample rate: 48kHz
    • Card sample rate: follows DSP settings
    • Connector: USB B, female
  • Dante™: 4×4 bi-directional; AES67


  • Card Slots: Eight (8) user-configurable
  • Controls, Service & Indicators: Indicators: audio in, audio out, network, operate. Recessed IP reset. Factory service micro-USB.
  • Weight: 2.2lbs; 1kg
  • Dimensions:
    • Height: 1.65″ / 43mm
    • Width: 4.25″ / 108mm
    • Depth: 6″ / 152mm
  • Mounting:
    • Includes two (2) mounting brackets for installation onto flat surface.
    • Compatible with standard 19″ 1U rack shelf.


SOLARO XC-SUB
Solaro XC-SUB is a 2x2 (send/receive) USB audio card for Solaro Series processors.

The XC-SUB offers volume and mute status sync for Microsoft Teams and connects over a USB 2.0, Class 1 Audio Type B female connector. Solaro XC-SUB is an essential for conferencing, education and hybrid applications demanding high quality computer-based audio, leveraging Xilica proprietary signal processing algorithms and HearClear acoustic echo cancellation.

  • Channel(s)
    Two input, two output
  • Interface
    USB 2.0, Class 1 Audio
  • Bit-Depth
    16 bit
  • Sampling Rate
    48kHz
  • USB Audio Profile(s)
    1 x 1 – Speakerphone (HFP host, AEC disabled)
    1 x 1 – Speakerphone (HFP host, AEC enabled)
    2 x 2 – General line in/out soundcard (A2DP)
  • USB HID/OS
    Control integration for mute, volume sync with Windows and Mac OS
    Mute status sync for Microsoft Teams
  • Connector(s)
    USB Type B female
