Technical Specifications
Brands PSB Speakers
Series Custom Sound Series
Size 2 x 5.25"
Speaker Type In-ceiling
  • Details
  • Downloads
  • Where to Buy
  • Ordering

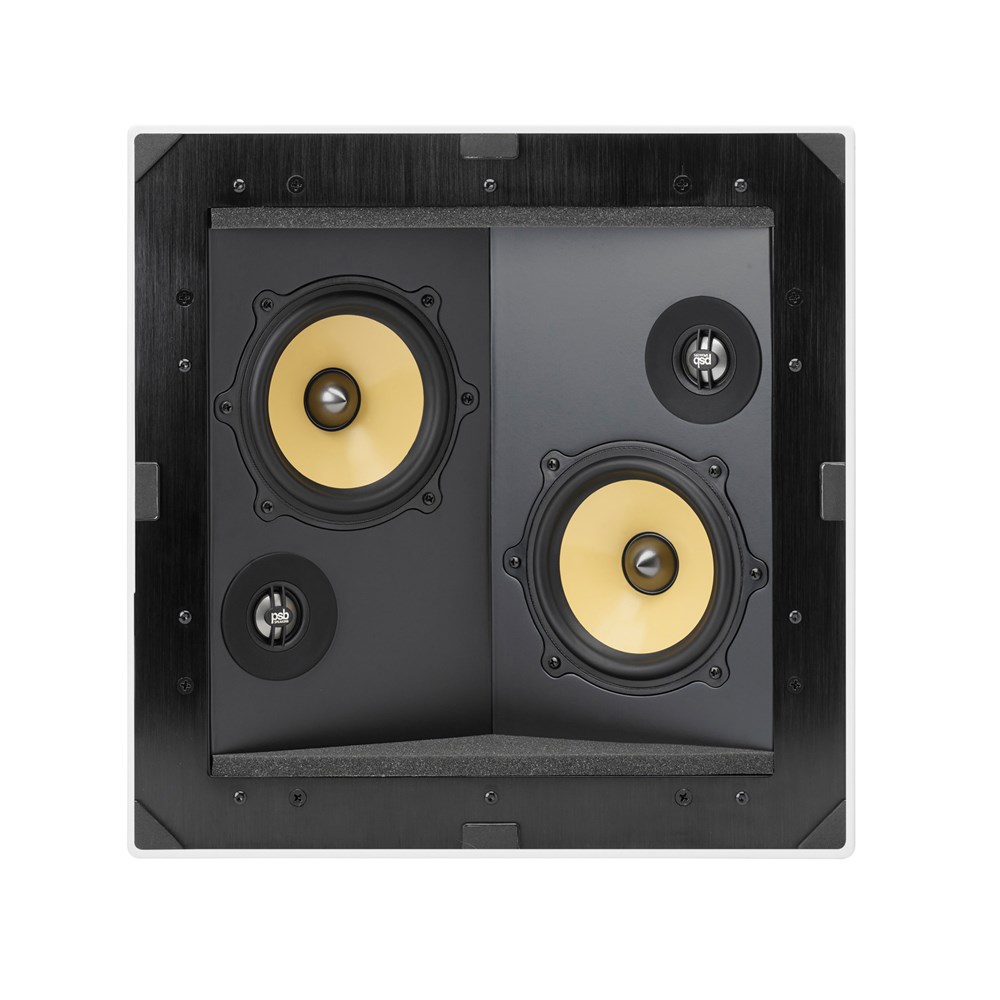

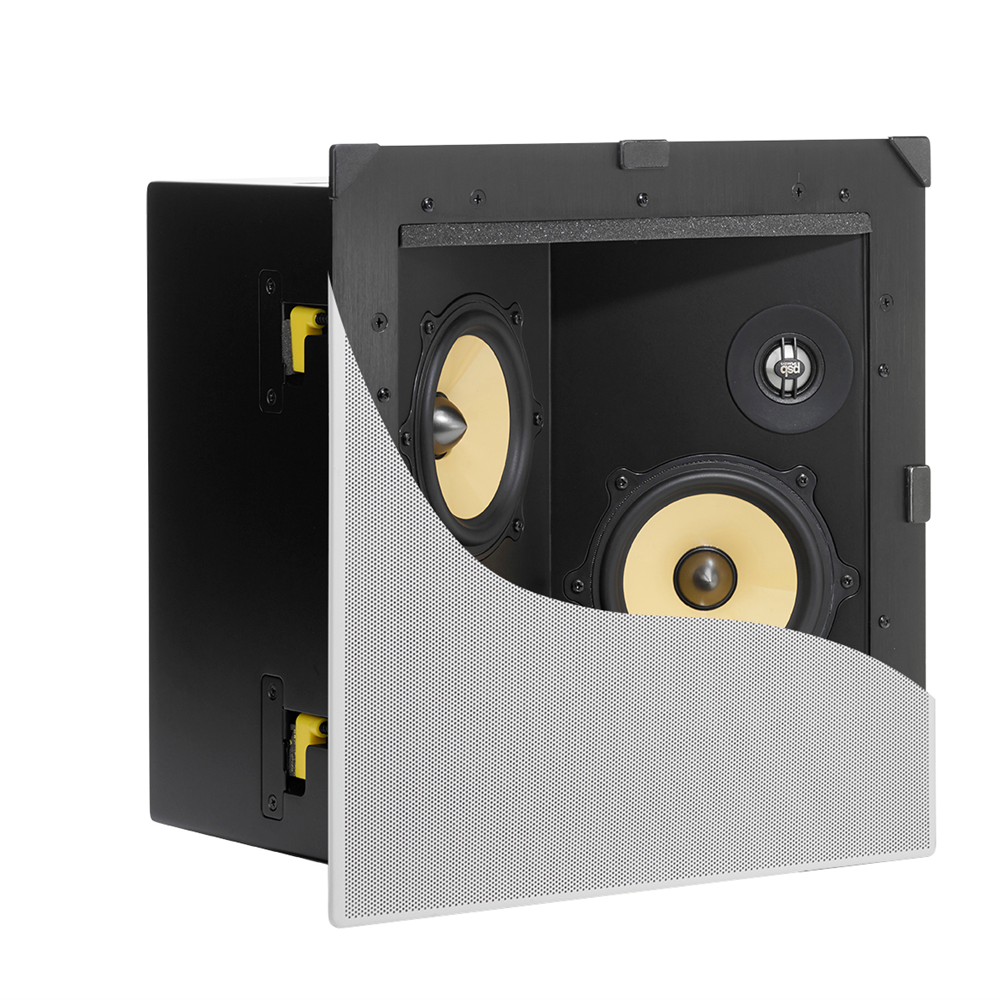

C-SUR – In-Ceiling Speaker

One speaker, multiple applications
Like all PSB speakers, the CustomSound C-SUR is prized for its true-to-nature sound. It is also highly versatile, offering several placement options for creating an immersive home theatre experience. Capable of handling 150 watts of amplifier power, the C-SUR is the robust yet discreet in-ceiling speaker your high-end home theatre system deserves.

  • Two 5¼” (133mm) clay/ceramic reinforced polypropylene cone woofers
  • Two 1″ (25mm) titanium done, ferrofluid-cooled tweeters
  • Frequency response: 70-23,000Hz (±3dB)
  • Dual-input design features dedicated speaker-wire inputs for each woofer and tweeter pair
  • Includes magnetic “frameless” grille with fabric scrim

Bring big sound to small rooms
The CustomSound C-SUR in-ceiling speaker uses two 5¼” (133mm) woofers and two 1″ (25mm) tweeters in a unique 5.1/7.1 dual-mode configuration that allows for an unusual installation option. Because each woofer/tweeter pair has its own crossover and input, a single C-SUR can be used for both the surround and surround-back channels, providing an ideal solution for a 7.1 theatre in smaller rooms.

Create the ideal soundstage
The CustomSound C-SUR is also an excellent height-channel speaker because of its diffuse soundfield. This speaker helps pull the sound “off the walls” to create a truly immersive experience. Combine the C-SUR with other speakers in the CustomSound line, such as the C-LCR and W-LCR2, to create a superb home theatre surround sound system.

Designed for acoustic integrity
Housed inside a meticulously engineered enclosure that ensures the acoustic integrity of the design in any installation, the CustomSound C-SUR is uncompromising in its performance, both visually and sonically. As an added benefit, the enclosure reduces sound transmission into adjoining rooms. This is the concealed-speaker system your home is waiting for.

Frequency Response
  • On Axis @ 0° ±3dB    70-23,000Hz
  • On Axis @ 0° ±1 1/2dB    75-20,000Hz
  • LF Cutoff -10dB    65Hz
Sensitivity
  • Anechoic Chamber    89dB
  • Listening Room    91dB
Impedance
  • Nominal    6 Ohms
  • Minimum    4 Ohms
Input Power
  • Recommended    20 - 150 Watts
  • Program    150 Watts
Acoustic Design
  • Tweeter (Nominal)    2 x 1” (25mm) Titanium Dome with Ferrofluid
  • Woofer (Nominal)
    • 2 x 5 1/4” (133mm) Clay/Ceramic reinforced Polypropylene Cone
    • Rubber Surround
  • Crossover    1500Hz, LR4
  • Internal Volume    0.4 cu ft (11.2L)
  • Design Type    Sealed
Dimensions / Weights / Finish
  • Size (W x H x D)
    • Cutout Dimensions - 13 3/16 x 13 3/16” * (335 x 335mm)
    • Mounting Depth - 7 3/4” * (196mm) *
    • Grille Dimensions - 14 3/4 x 14 3/4 x 3/8” * (373 x 373 x 7mm)
  • Weight    Net - 17.6lb (8.8kg)/each
  • Shipping - 24lb (10.9kg)/each
  • Finish    White
Notes    * Non-metric measurements are approximate.
All specifications are subject to change without notice.
