NETGEAR Insight Managed WiFi 7 BE9400 Tri Band Access Point WBE718 4-Year Insight sub

Product Code: NE-WBE710-100APS

Brand
Netgear
$769.00 inc GST
RRP $769.00

Pre-Order Now
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



3 Year
Technical Specifications
Brands Netgear
Product type Wireless access points and controllers
  • Details
  • Downloads
  • Where to Buy
  • Ordering

Cloud Managed WiFi 7 Access Point (WBE710)

Tri-Band PoE 2.5G Insight Manageable WiFi 7 Access Point

  • Tri-band access point delivering 9.4Gbps of data throughput
  • Multi-gig Ethernet port ensures full bandwidth connection for maximum speed
  • Up to 8 separate wireless networks (SSIDs)
  • 37 MIMO per group for faster data transmission
  • WPA3 encryption for the highest level of WiFi connection security
  • Cloud management without the need for a controller
  • Small form factor for a more incognito appearance
  • Simplified deployment with PoE+ for single cable power & data
  • Backwards compatible with older WiFi devices for a futureproof solution

The WBE710 expands the NETGEAR Insight Cloud Access Point products to offer a next generation tri-band access point that includes a new and ultra wide, ultra fast WiFi frequency band. The WBE710 is a 2.4GHz, 5GHz and 6GHz tri-band design delivering up-to 9.4Gbps total WiFi throughput, supported by a 2.5G Power-overEthernet port, and industry leader of technology innovation and performance in its product class.

The WBE710 enables industry's next generation WiFi standard, WiFi 7 operating on 6GHz band in addition to 2.4GHz and 5GHz, delivering unprecedented data throughput speed and available channels for WiFi connectivity with smartphones, IoT devices, and computers.

The newly expanded 6GHz band provides up to 2.4 times more channels for WiFi communication, enabling the WBE710 to deliver faster speed, handling more client devices in a significantly less congested environment.

WiFi 6 operates in 2.5GHz and 5GHz, with 160MHz channelization in the 5GHz band. By contrast, WiFi 7 operates in 2.4GHz, 5GHz, and 6GHz bands, with 320MHz channelization in the 6GHz band. By enabling the 320MHz channels, the WBE710 delivers up to twice the speed in the 5GHz band than WiFi 6 access points.

The WBE710 is ideal in high density client device environments such as schools, hotels, restaurants and conference centers, and provides enterprise-grade WiFi network security.

Equipped with the latest WiFi 7 (802.11be) technology, including features such as Multi-Link Operation (MLO), 4K QAM, and 320 MHz channel width operation in the 6 GHz band, the WBE710 not only offers increased speeds, coverage, and capacity but also ensures that you are equipped with high-performance WiFi ready for the future. Experience enhanced reliability as you connect more devices to your business network without any slowdowns or coverage gaps.

Together with Insight Cloud Management, the WBE710 facilitates effortless network management for businesses, even without IT expertise, ensuring a robust WiFi connection that keeps every customer satisfied. This WiFi 7 access point works seamlessly with your current NETGEAR Insight managed switches, Pro Routers, and previous generation WiFi devices access points of WiFi 5, WiFi 6 and WiFi 6E

Business features for higher speed, greater coverage and higher density tri-band WiFi

  • Business-class WiFi based on next generation 802.11be WiFi 7 technology on 6GHz, 5GHz and 2.4GHz bands. (Backward compatible to  802.11b/g/b/n/a/ac/ax)
  • Support 320MHz channelization in the 6GHz channel 160MHz and in the 5GHz channel to deliver 2.4 times the throughput compared to previous generation
  • Tri-band, 2.4GHz, 5.0GHz, 6.0GHz, 6 streams of data for an aggregate throughput of up to 9.4Gbps
  • Instant WiFi Mesh forming wireless backhaul with other Pro WiFi Insight managed access points to form a WiFi mesh network
  • 100% more throughput in 2-stream 5.0GHz band compared to previous generation
  • Enterprise security and Enhanced Open security, such as WPA3, WPA2 Enterprise, WPA3 Enterprise, 8x SSID, Dynamic VLAN and VLAN
  • Basic Service Set Coloring (BSS Coloring) enabling significant improvement in radio frequency channel effeciency and reduction of interference
  • Orthogonal Frequency Division Multiple Access (OFDMA) allowing simultaneous services to multiple devices in the same channel thus improving bandwidth efficiency and reducing latency
  • 2.5G/Multi-Gigabit PoE+ (802.3at) Ethernet port, compatible with 100M/1G/2.5G connections. Best supported by NETGEAR MS510TXUP, MS324TXUP, MS108TUP, and other Multi-Gigabit Ethernet switches
  • Multi-Link Operation (MLO) brings significant improvements in throughput, latency, and reliability by aggregating multiple channels across different frequency bands into a single connection.
  • Preamble puncturing,† reduces signal interference, which allows WiFi devices to use part of different channels to transmit data, significantly reducing signal congestion.
  • Remote management and monitoring from NETGEAR Insight app or Cloud portal for unrivaled management experience of your wireless network.
  • Quick installation and setup through NETGEAR Insight app or Cloud portal. No additional hardware needed.
  • Market leading 5-year warranty with 24x7 chat support for peace of mind

Specifications

  • WiFi Standards
    • 6GHz: 802.11ax/be
    • 5GHz: 802.11a/n/ac/ax/be
    • 2.4GHz: 802.11b/g/n/ax/be
  • Wireless Mode (Transmit x Receive)
    • 2x2 in 6.0GHz
    • 2x2 in 5.0GHz
    • 2x2 in 2.4GHz
  • Channelization
    • 6GHz: 20/40/80/160/320MHz
    • 5GHz: 20/40/80/160MHz
    • 2.4GHz: 20/40MHz
  • OFDM/OFDMA
    • OFDM and OFDMA
  • BSS Coloring
    • Yes
  • Bidirectional MU-MIMO
    • 37 per group
  • Target Wake Time (TWT)
    • Yes
  • Maximum Wireless Theoretical Throughput
    • 9.4Gbps
  • Maximum Wireless Theoretical Throughput per Band
    • 6GHz: 5,765Mbps
    • 5GHz: 2,882Mbps
    • 2.4GHz: 688Mbps
  • Max Number of Users per Radio/Total
    • 200/600
  • Antenna Gain
    • Internal 3.45/5.39/5.49 dBi (2.4GHz/5GHz/6GHz)
  • Power over Ethernet (PoE)
    • 802.3at
  • PoE Power Consumption
    • 25W
  • Secure Socket Layer (SSL)
      • Yes

Wireless Distribution System(WDS)

  • Repeater: Yes
  • Bridge Point-to-point/Multi-point: Yes
  • Simultaneous Bridge and Wireless Client Association: Yes

Security

  • WiFi Protected Access (WPA2 WPA3), 802.11i: Yes
  • MAC address filtering with access control: Yes
  • 802.1x RADIUS support with EAP TLS, TTLS, PEAP: Yes
  • Neighbor AP detection: Yes
  • Block SSID Broadcast: Yes
  • VLAN Support: Yes
  • Guest Network/Captive Portal: Yes
  • Bandwidth management: Yes
  • Link Layer Discovery Protocol: Yes
  • Bandsteering: Yes
  • WiFi Protected Access® (WPA2, WPA3): Yes
  • WPA2 and WPA3 Enterprise: Yes
  • Wireless access control to identify authorized wireless network devices: Yes
  • MAC address authentication: Yes
  • Access Control List (ACL): Yes

Instant WiFi Mesh

  •  Wireless backhaul to form Mesh Network: Yes

Standards

  • IEEE 802.11be WiFi 7 standard: Yes
  • WMM Wireless Multimedia Prioritization: Yes
  • WDS Wireless Distribution System: Yes
  • Power over Ethernet (PoE) IEEE 802.3af: Yes, max throughput will reduce by 50% on 2.4GHz, 25% on 5GHz and No 6GHz
  • Power over Ethernet (PoE) IEEE 802.3bt: Yes

Physical Specifications

  • Dimensions W x D x H: 157 x 157 x 40 mm (6.2 X 6.2 X 1.6 in)
  • Weight: 0.69 kg (2.09 lb)

Environmental Specifications

  • Operating temperature: 0° to 40°C (32° to 104°F)

Physical Interfaces

  • Interface: One 2.5G /Multi-Gigabit PoE+ port (IEEE 802.3af, IEEE802.3at and IEEE 802.3bt)
  • Power adapter (not included): 12V DC, 2.5A; plug is localized to country of sale
  • LED: Single multi color LED

Network Management

  • NETGEAR Insight Cloud Management: App management for setup, monitoring and management

Advanced Wireless

  • Wireless Distribution System (WDS)
    • Repeater mode
    • Adjustable Transmit Power Control (TPC)
    • Device detection
    • Identify type of wireless clients in the network

Package Contents

  • WBE710 Insight Manageable Access Point

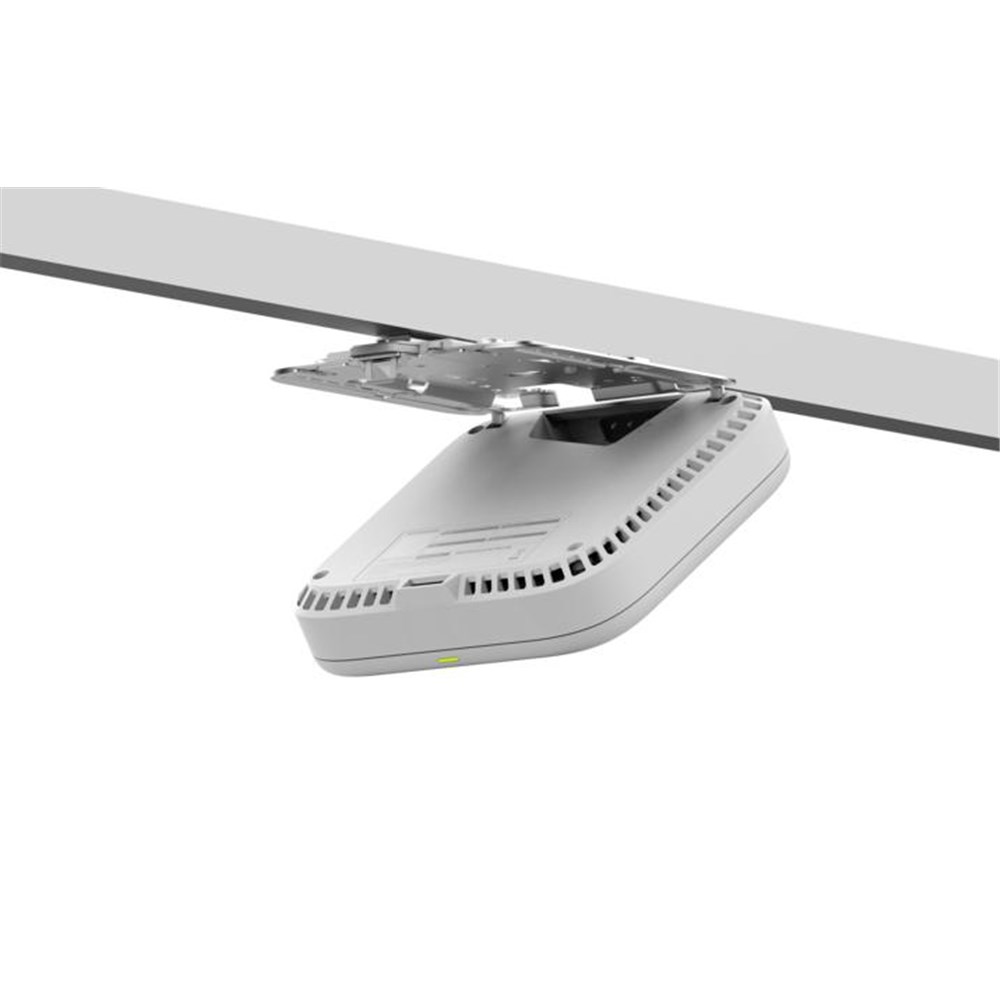

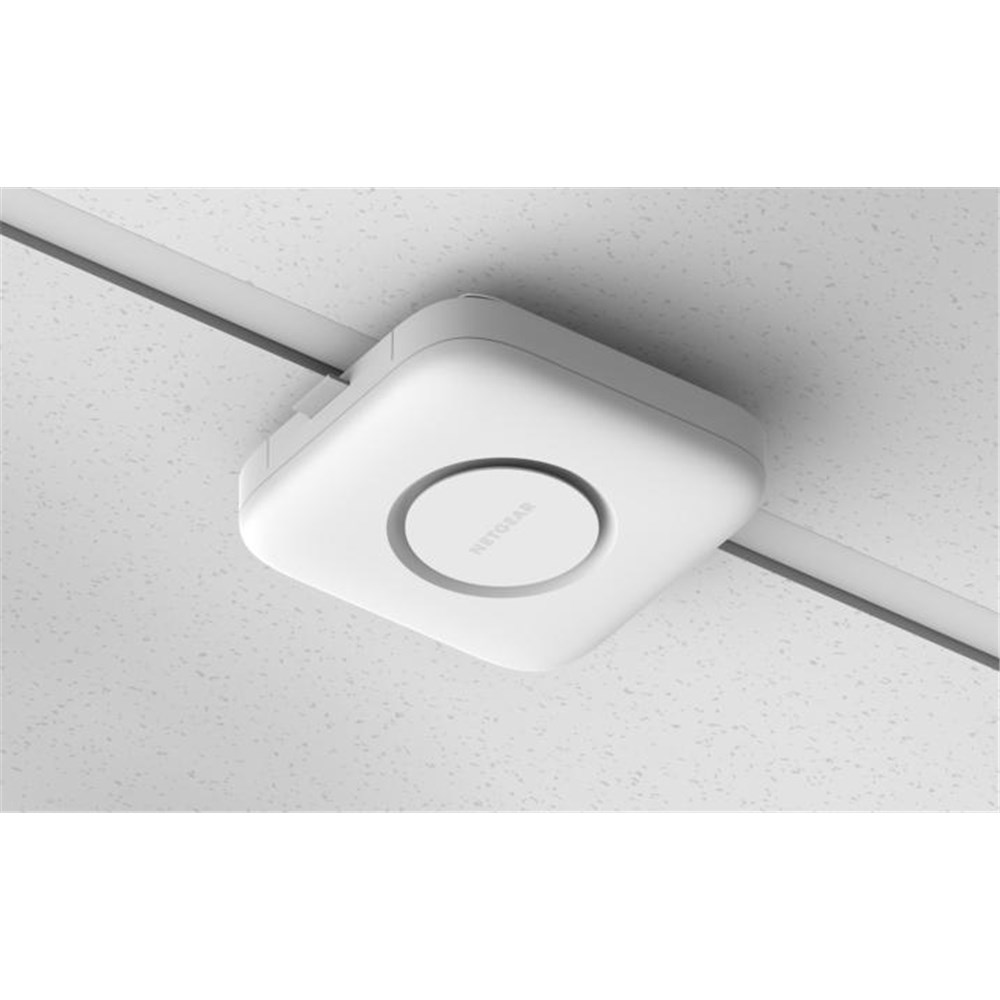

  • Wall/ceiling mount kit
  • Installation guide
