Radial HEADLIGHT - Guitar Amp Selector

Product Code: RA-HEADLIGHT

Brand
Radial Engineering
RRP $519.00
*Recommended Retail Price may not be a true representation of the market price

Quantity In Cart:
Unit of Measure
EACH



3 Year
Technical Specifications
Brands Radial Engineering
Product Category Guitar effects
Product type Switchers
  • Details
  • Downloads
  • Where to Buy
  • Ordering

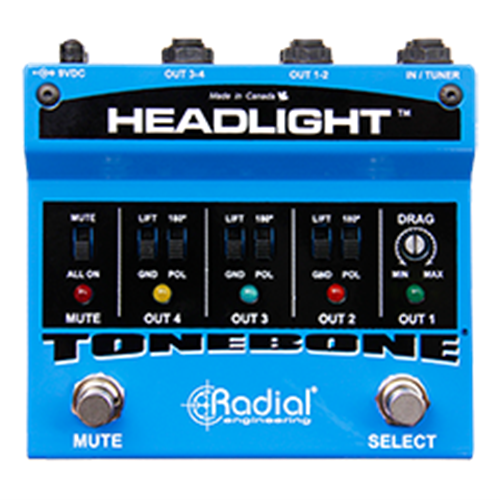

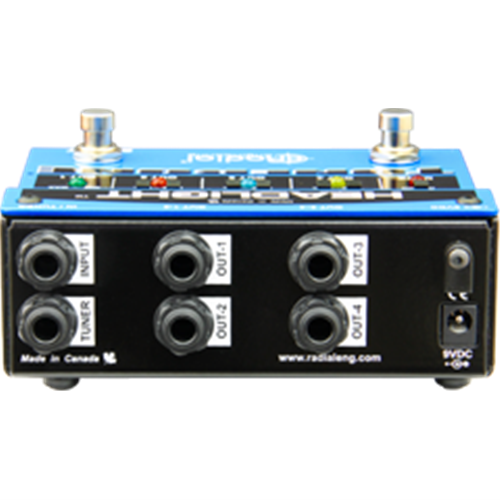

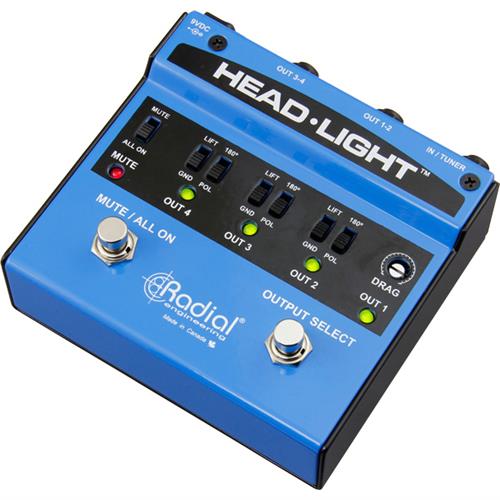

Headlight Guitar Amp Selector


Part No. R800 7096 00

  • Four output guitar amp selector with sequential switching
  • Class-A input buffer with Drag™ Control load correction
  • Isolated outputs to eliminate hum and buzz from ground loops
  • Mute switch and tuner out for quiet on-stage tuning

The Headlight™ is a unity gain guitar amp selector designed to easily integrate on a pedalboard and allow the artist to seamlessly switch between as many as four amps using a single footswitch. The magic behind the compact design is the combination of ¼" switching output jacks and an innovative sequential footswitch that advances through the connected outputs depending on how many amps are connected. You merely stomp on the footswitch to go from one output to the next. This enables the Headlight to be used with one, two, three or even four amps. High visibility LEDs provide instant output status on busy stages.

The design begins with Radial’s legendary Class-A input buffer for optimal signal transfer and minimal distortion without artefact. Drag™ Control load correction is used to replicate the tone and feel as if connected directly to an amplifier. The signal is then sent to the four outputs, three of which are transformer isolated to prevent hum and buzz caused by ground loops. Each output is augmented with a ground lift switch to further aid in reducing nose. To ensure all amplifiers play in phase, 180° polarity reverse switches may be set as needed. A mute footswitch works double duty as either a mute that turns off all the outputs except for the dedicated tuner out or as an "all-on" switch if driving multiple amps at the same time is desired.

The Headlight follows Radial’s pedigree for exceptional build quality with 14-gauge steel construction throughout. This not only protects the sensitive inner workings from outside stress, it also helps prevent noise from nearby magnetic fields from polluting the inner workings. To accommodate pedalboards, the Headlight is powered by a standard 9V supply for easy integration with a multi-pedal power brick.

The Headlight delivers the perfect balance between compact size, easy functionality and great tone.

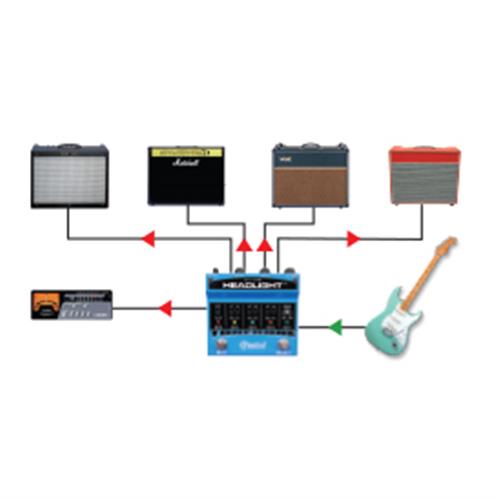

Driving four different amps on stage
Use the Headlight to switch between four stage amps to create the ultimate setup for clean, crunch, overdrive and power solo! Simply depress the selector footswitch to select the amp you want. Super bright LEDs let you know which amp is active. Use the mute footswitch for quiet on-stage tuning.

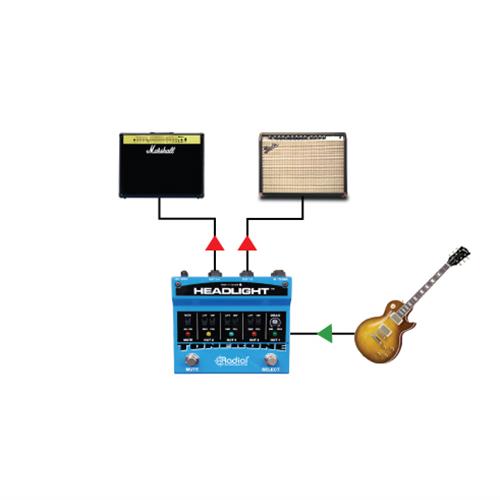

Using the Headlight as an ABY
Connect your two amps using outputs 1 and 2 and select between them using the right-hand footswitch. Set the left-hand footswitch to ALL-ON and when depressed, both amps will play. The isolation transformers will prevent buzz and hum from ground loops when both amps are on.
Using Headlight with DI Boxes and Amplifiers
Using the Headlight you can feed both direct boxes and amplifiers. The outputs from the direct boxes can be sent directly to the mixer and stage amps can be mic'd.
