  • Airplate T8 Pro Twin Fans WH 2 x 120mm 1533PL @19dBA AC Infinity With P/Pack

Airplate T8 Pro Twin Fans WH 2 x 120mm 1533PL @19dBA AC Infinity With P/Pack

Product Code: AI-APT8WKT

Brand
AC Infinity
$339.00 inc GST
RRP $339.00

In Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
Kit Components
Code
Item
Qty
AI-APT8W
Please Use AI-APT8WKT ATC Controler in White AC infinity
1.0
AI-ATCPOWERPACK
ATC Temp control 7.5 Volt NEW 3 Amp Power Pack AC Infinity
1.0
Technical Specifications
Brands AC Infinity
Product Category Cooling
Cooler type Cabinet
  • Details
  • Downloads
  • Where to Buy
  • Ordering

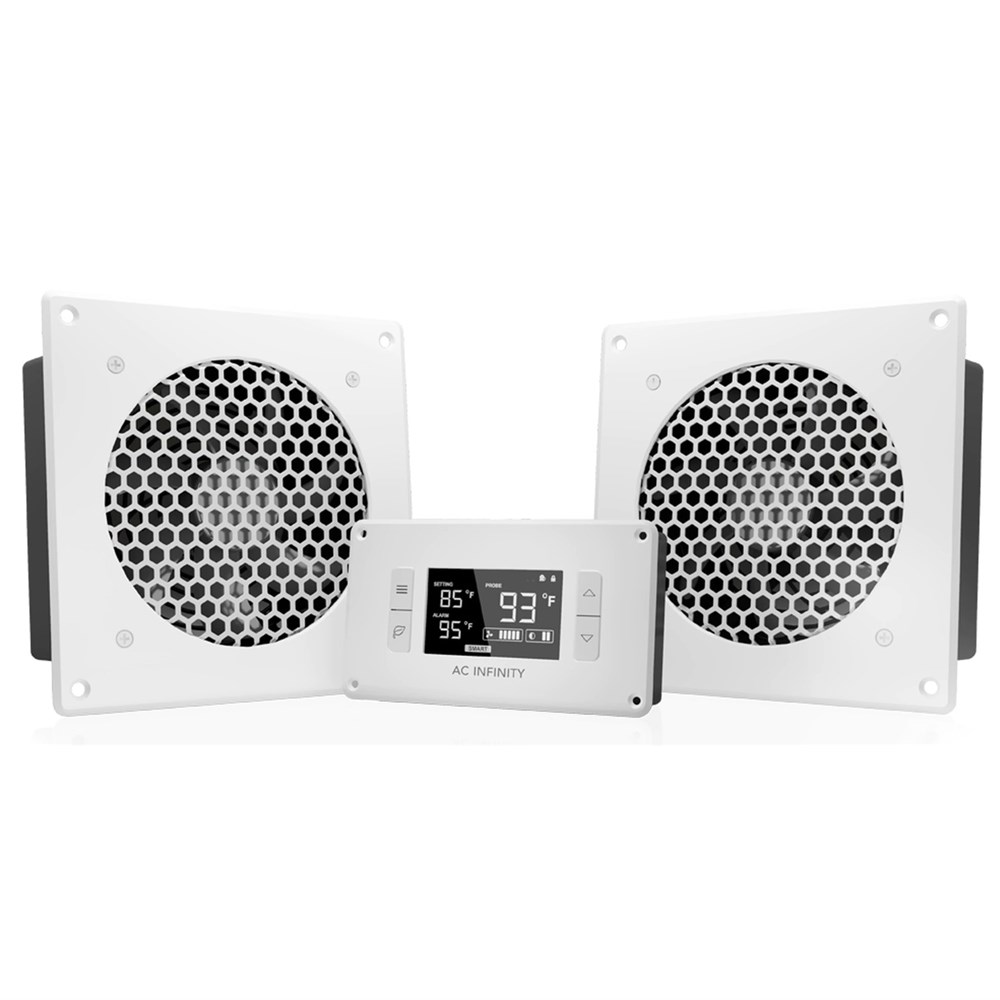

Airplate T8 PRo - Two 6" Single Fans /w Therm. Con. - WHT
QUIET CABINET COOLING DUAL-FAN SYSTEM, 6 INCH

  • An ultra-quiet dual-fan system designed for cooling cabinets that requires minimal noise.
  • Automated programming that self-adjusts cooling power in response to changing temperatures.
  • Features a LCD display with an alarm system, display lock, six fan speeds, two buffer options, and memory.
  • Two fan units with controller, containing CNC machined aluminum frames with a modern matte-white finish.
  • Each Unit's Dimensions: 6.3 x 6.3 x 1.3 in | Total Airflow: 104 CFM | Total Noise: 19 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION
The ultra-quiet dual-fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. This kit includes two single fan units, one exhaust and one intake; plus a thermal controller. Each fan uses a custom motor engineered to minimize noise during speed variations and are certified by CE and RoHS. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame finished with matte-white powder coat paint. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through a standard wall outlet.

THERMAL CONTROLLER

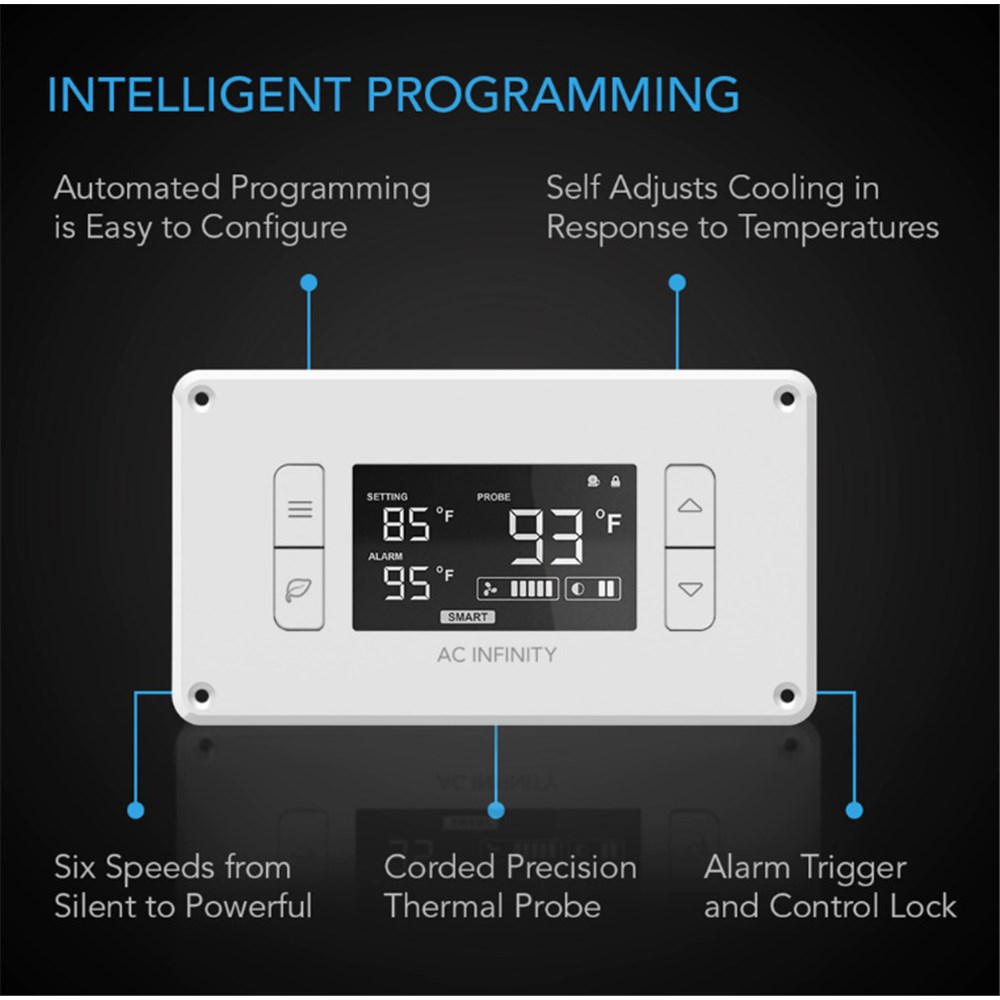

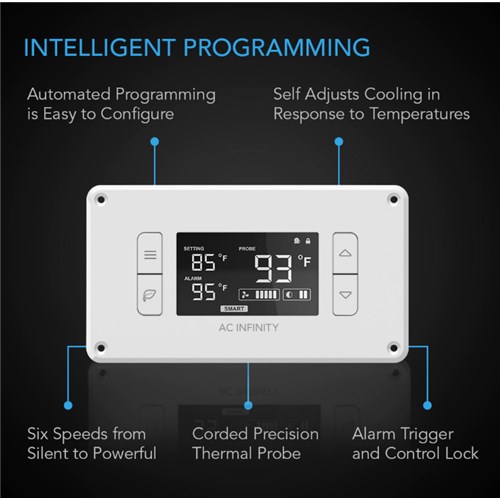

The controller features an on-board processor with active temperature monitoring as well as intelligent programming that will automatically adjust fan speeds to respond to varying temperatures. Additional features includes an alarm system, display lock or off while programs are running, six fan speeds, three back-light settings, two buffer options, and power failure memory. Features a detachable 6-foot precision thermal probe that is water resistant.

CONNECTING ADDITIONAL UNITS

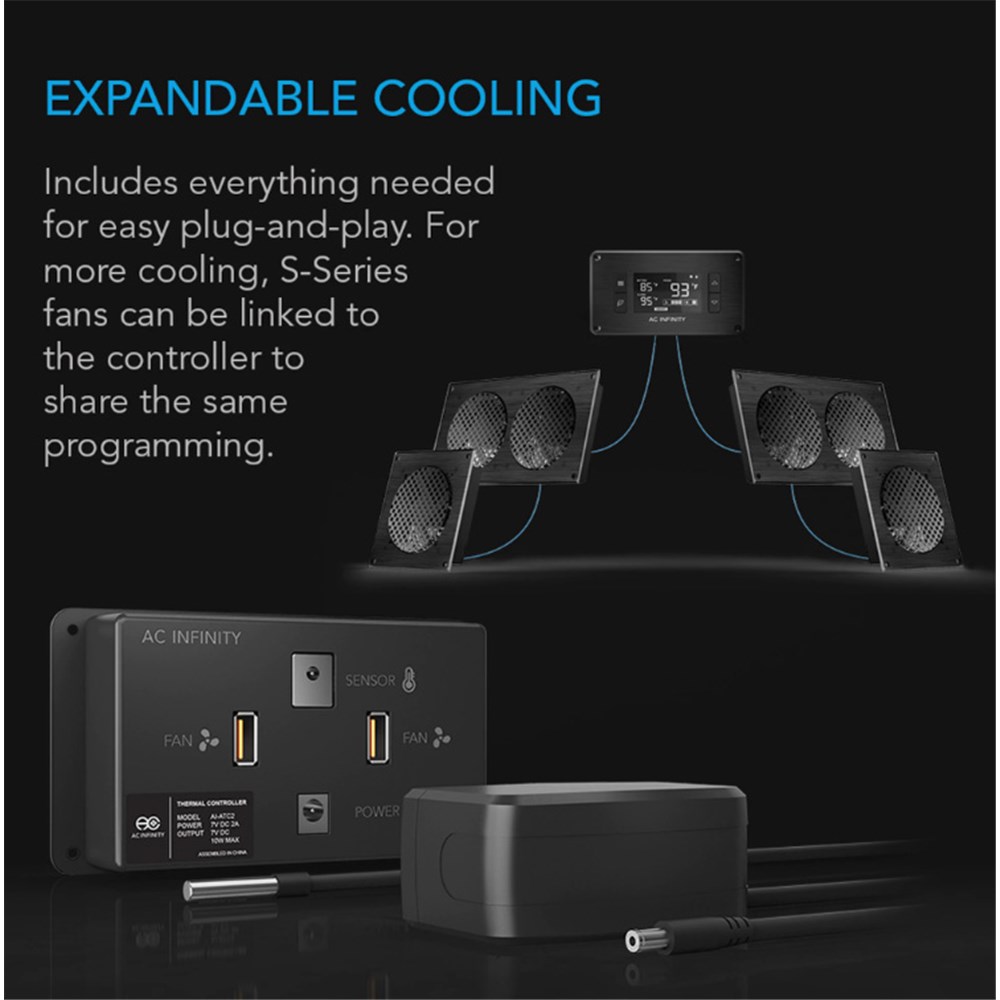

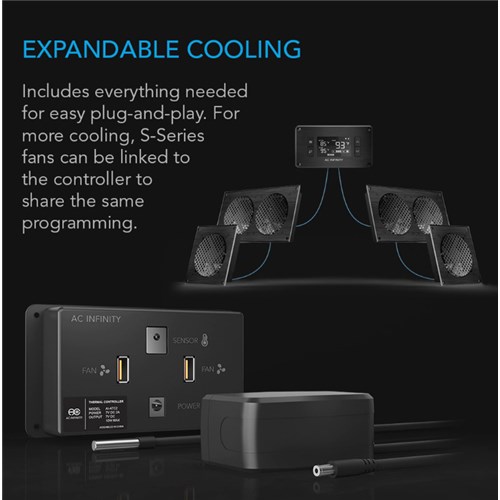

For cabinets that requires more airflow, additional AIRPLATE S series cabinet fans can be connected to the included thermal controller. Up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S3/T3 contains one fan, AIRPLATE S7/T7 contains two fans, and AIRPLATE S9/T9 contains three fans.

APPLICATIONS

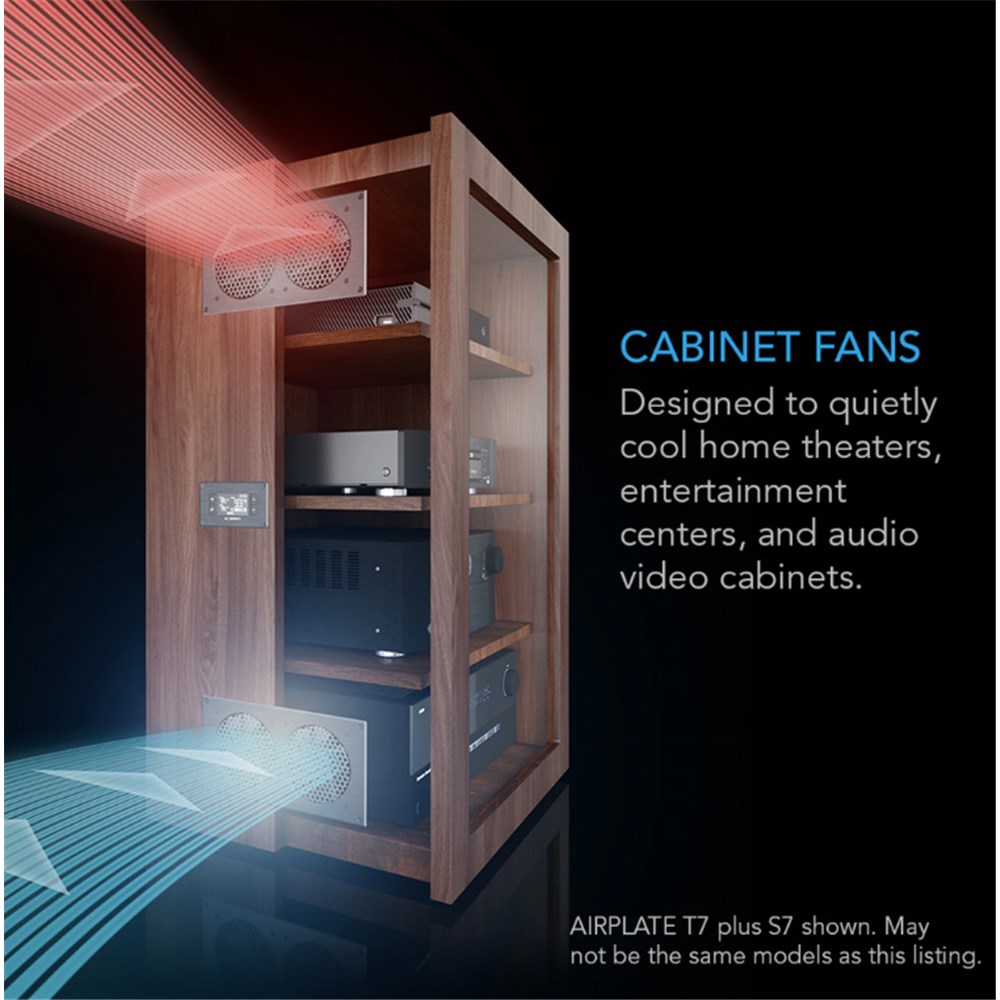

This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.



Product Identification

  • Manufacturer: AC Infinity Inc.
  • Product Name: AIRPLATE T8 White
  • Product Model: AI-APT8-W
  • UPC Code: 819137020504

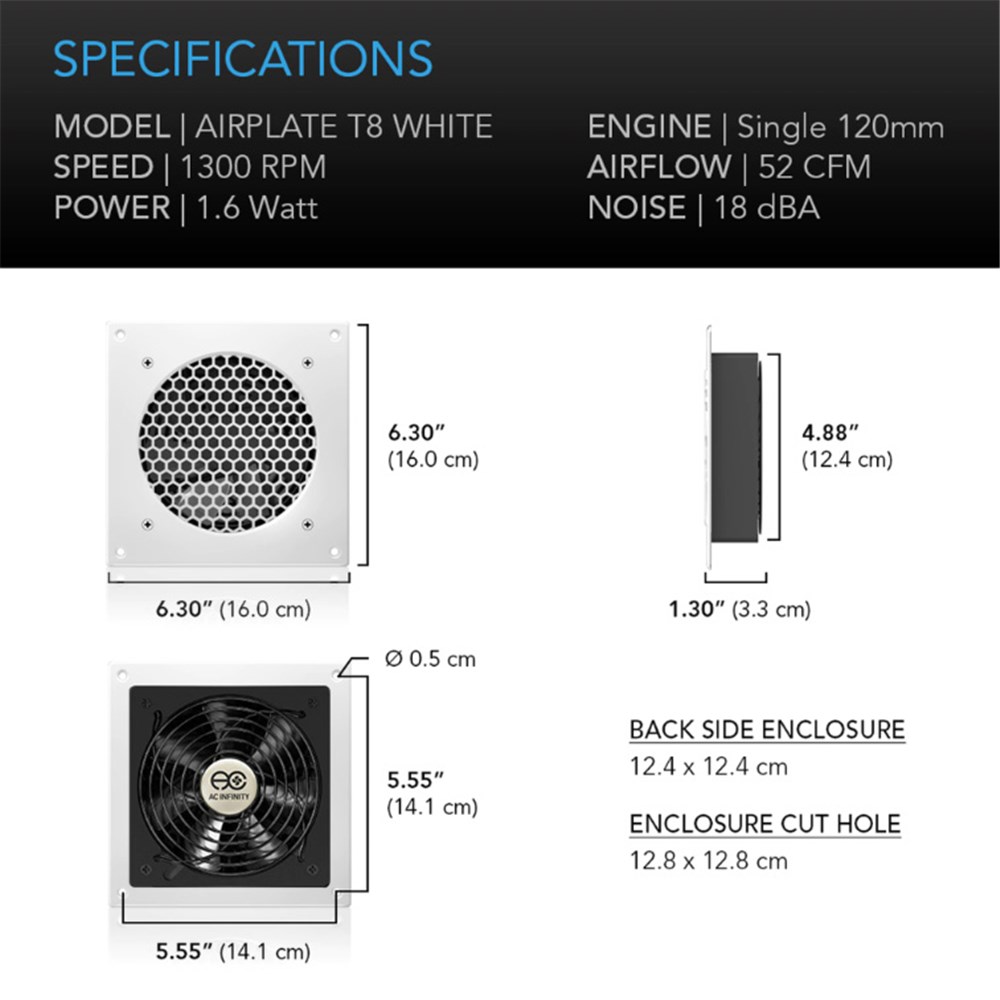

  • Product and Mounting Dimensions - Per Fan Unit:
  • Total Dimensions: 6.30 x 6.30 x 1.30 in (16.0 x 16.0 x 3.3 cm)
  • Backside Enclosure Dimensions: 4.88 X 4.88 in (12.4 x 12.4 cm)
  • Required Mounting Hole: 5.04 x 5.04 in (12.8 x 12.8 cm)
  • Hole to Hole Distance: 5.55 x 5.55 in (14.1 x 14.1 cm)
  • Screw Hole Size: Ø 0.197 in (Ø 0.5 cm)
  • Cord Length: 72 in (6 feet)
Product and Mounting Dimensions - Controller
  • Total Dimensions: 5.20 x 3.11 x 1.10 in. (13.2 x 7.9 x 2.8 cm)
  • Backside Enclosure Dimensions: 4.41 x 2.68 in. (11.2 x 6.8 cm)
  • Required Mounting Hole: 4.48 x 2.76 in. (11.4 x 7.0 cm)
  • Hole to Hole Distance: 4.71 x 2.64 in. (12.0 x 6.7 cm)
  • Screw Hole Size: Ø 0.119 in (Ø 0.3 cm)
  • Display Size: 2.25 x 1.25 in. (4.7 x 3.2 cm)
  • Cord Length: 72 in. (6 feet)
  • Thermal Probe Length: 72 in. (6 feet)
Product Performance and Technical Specs
  • Number of Fans: 2
  • Color Matte: White
  • Total Noise: 19 dBA
  • Static Pressure: 1 mm-H2O
  • Operating Voltage: 3 to 7V DC
  • Power: 3.3 W
  • Current: 0.66 A
  • Wall Adapter Input: 100 to 240V AC
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 14 to 230°F
  • Fan Bearings: Dual Ball
  • L10 Life Expectency: 67,000 Hours
  • Fan Quality Approvals: CE, RoHS
