AV switching and distribution

}

2 input 4K Wireless Presentation Switcher wireless casting

Product Code: WY-SW220TXW

Brand
Wyrestorm
RRP $1,569.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Input/output type Wi-Fi
Product type Switchers
  • Details
  • Downloads
  • Where to Buy
  • Ordering

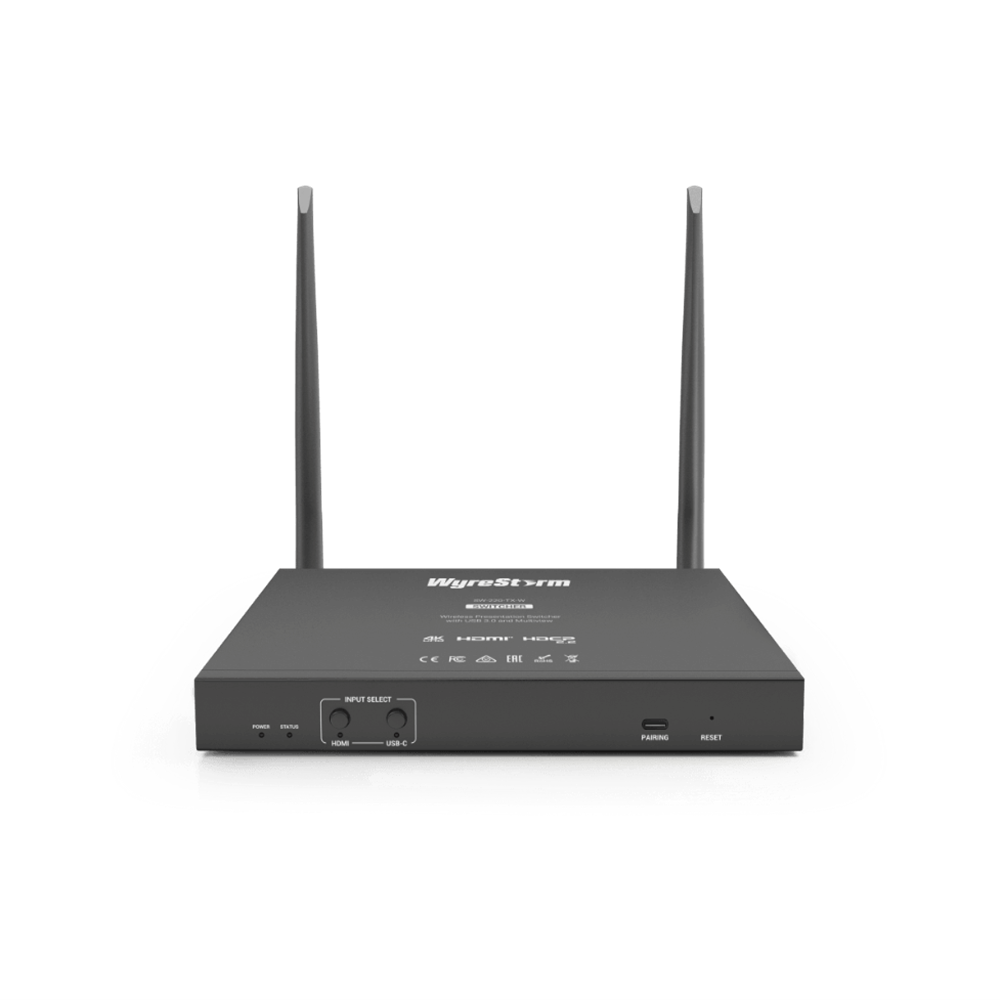

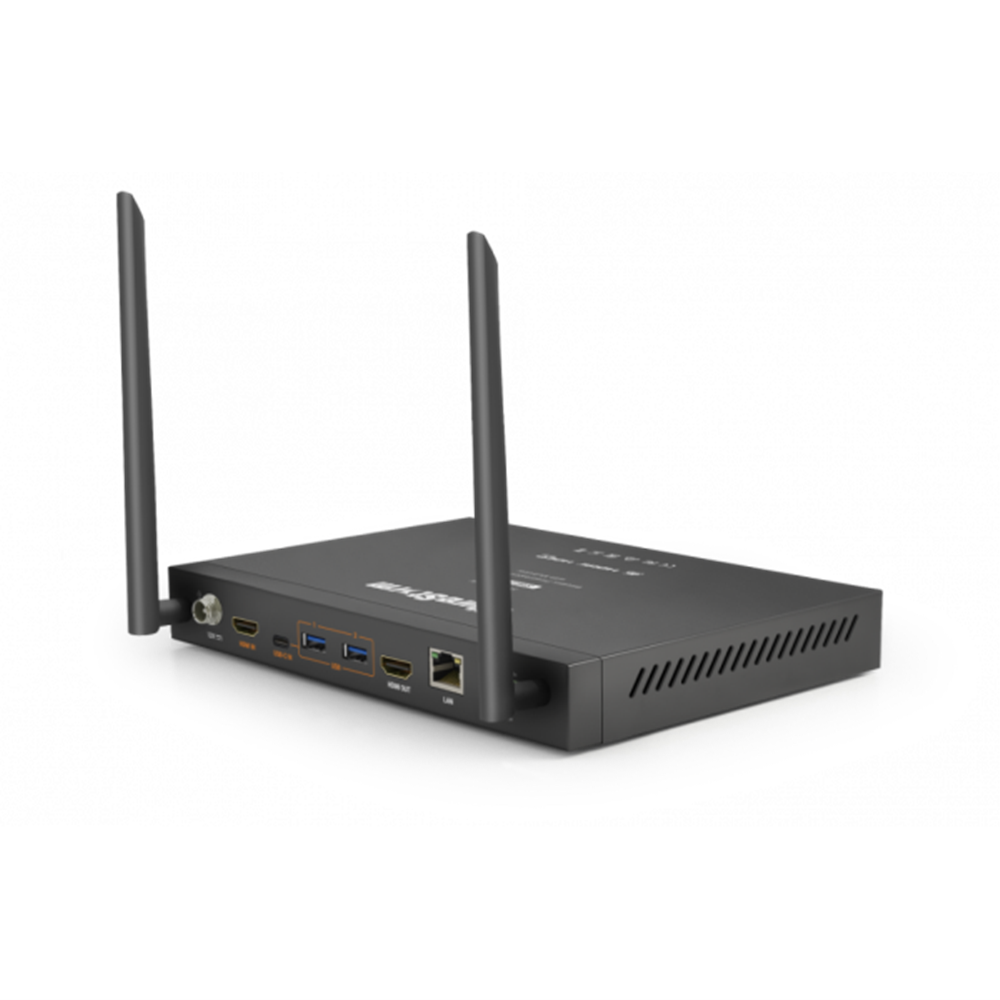

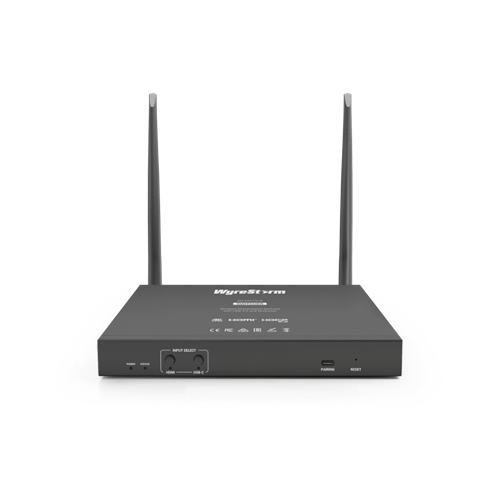

2-Input 4K Presentation Switcher with Wireless Casting

SKU: SW-220-TX-W

The SW-220-TX-W is the perfect solution for today’s huddle spaces and small meeting rooms. This switcher is equipped with the essential connectivity to have a successful meeting. USB-C and HDMI local inputs provide simple methods for sharing content to a display. In addition to the wired inputs, the SW-220-TX-W also supports native wireless casting via Airplay and Miracast so content can be shared easily from a tablet or smartphone. Connect a 4K camera or other highspeed USB devices to the USB 3.0 device ports and take advantage of the power and unification that is USB-C.

WIRELESS CASTING

Wirelessly screenshare from your laptop, phone or tablet by using Apple Airplay or Miracast. Take advantage of the convenience wireless casting has to offer.

DUAL-VIEW

Display up to 2 source devices at the same time. This can be a combination of wired and wireless devices, creating a supportive environment for collaboration between colleagues and teams.

USB-C DONGLE

Compatible with the Apollo APO-DG1 casting dongle, simply plug the dongle into an available USB-C port on your computer and tap the button. Getting connected couldn’t be easier!

USB 3.0

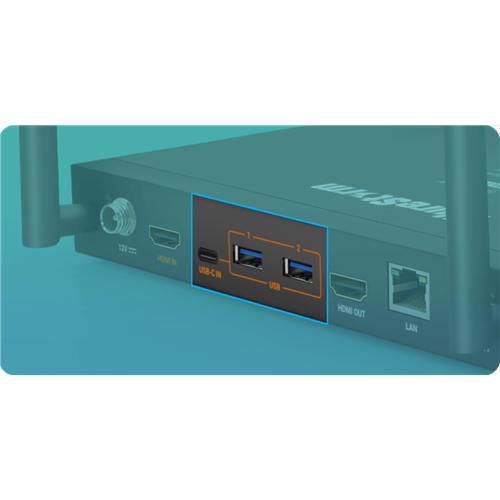

A built-in USB 3.0 hub on the switcher connected to the USB-C input allows local connection of peripherals devices such as a conference speakerphone or 4K camera.

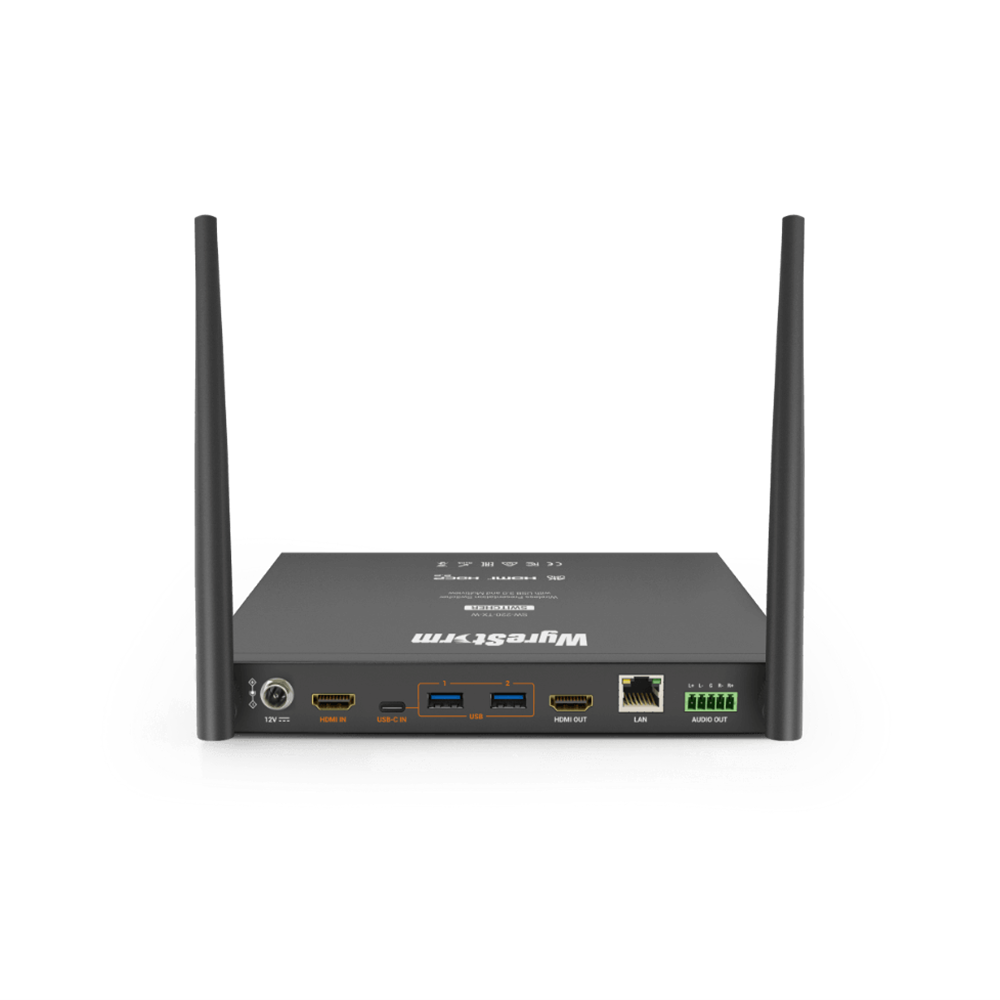

Technical Specifications

AUDIO & VIDEO
  • Inputs:
    • 1x HDMI In
    • 1x USB-C
    • Wireless video from Airplay, Miracast or APO-DG1
  • Outputs:
    • 1x HDMI Out
    • 1x Audio Out: 5-pin balanced phoenix
  • Video Resolution (Max):
    • Wireless Casting: 1920x1080p @30Hz
    • HDMI & USB-C: 3840×2160 @30Hz 4:4:4 8bit
  • Video Encoding: Uncompressed HDMI
  • HDMI Bandwidth: 10.2Gbps
  • Audio Formats: 2ch PCM
  • Supported Standards: DCI | RGB
  • Maximum Pixel Clock: 300MHz
COMMUNICATION & CONTROL
  • HDMI: HDMI 1.4 | HDCP 1.4 | EDID | CEC
  • USB:
    • 2x USB 3.2 Gen1 Type A device ports | USB-1: 5v 1A, USB-2: 5v 500mA
    • 1x USB 3.2 Gen2 Type C host port
  • ETHERNET: 1x 8-pin RJ-45 (API control & WebUI)
  • Wireless: 2x Wi-Fi Antennas | IEEE 802.11 a/b/g/n/ac | Dual-band 2.4 & 5GHz | WEP, TKIP, AES, WPA, WPA2
POWER
  • Power Supply: 12V DC 2A
  • Power Consumption: 12w

In the Box

  • 1x SW-220-TX-W
  • 1x 12V DC Power Supply (UK/US/EU/AU)
  • 1x 5-pin Terminal Block
  • 2x Mounting Brackets with Screws
  • 1x Quickstart Quide
