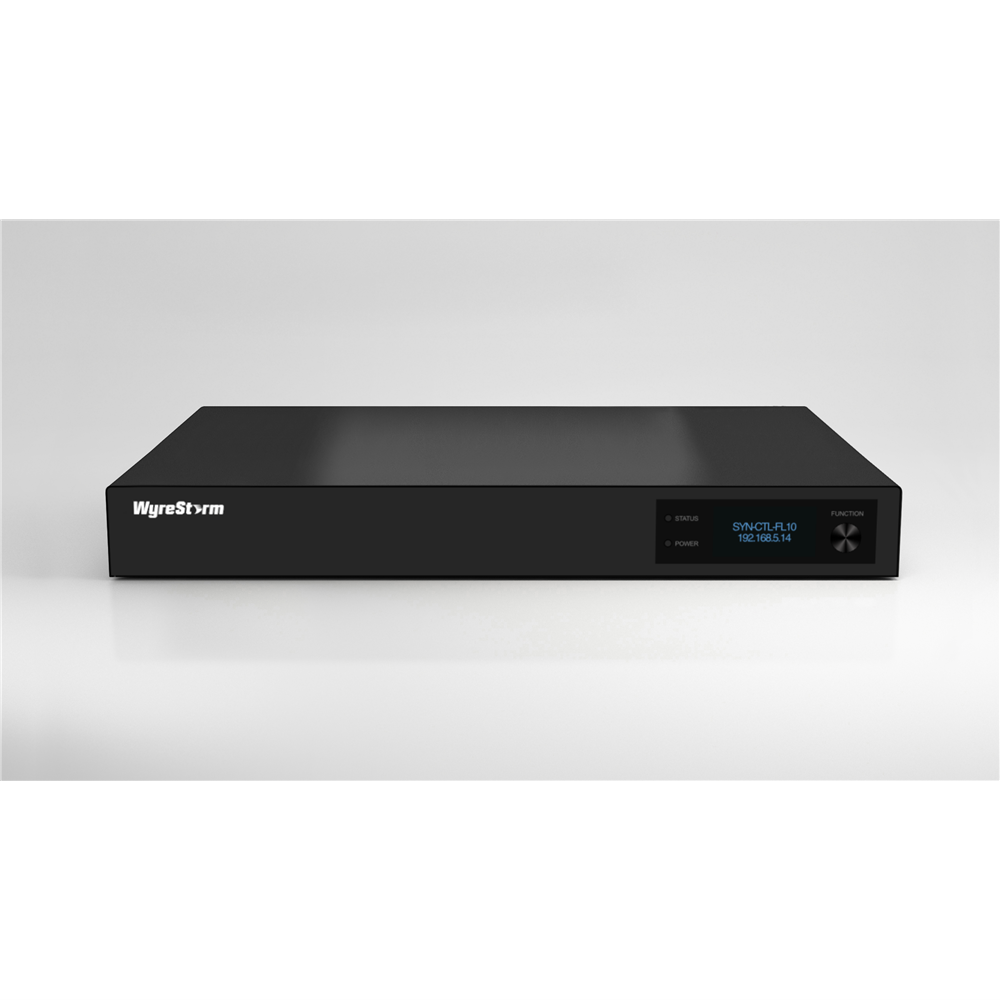

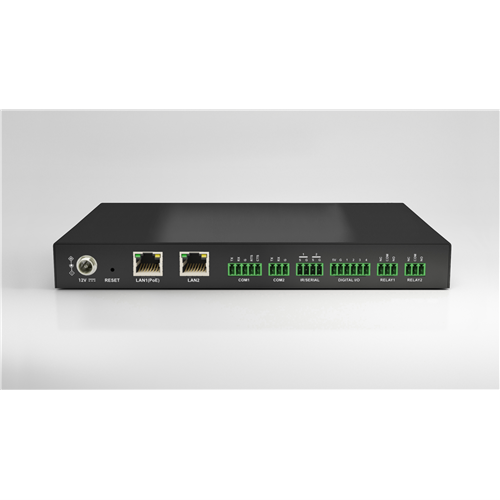

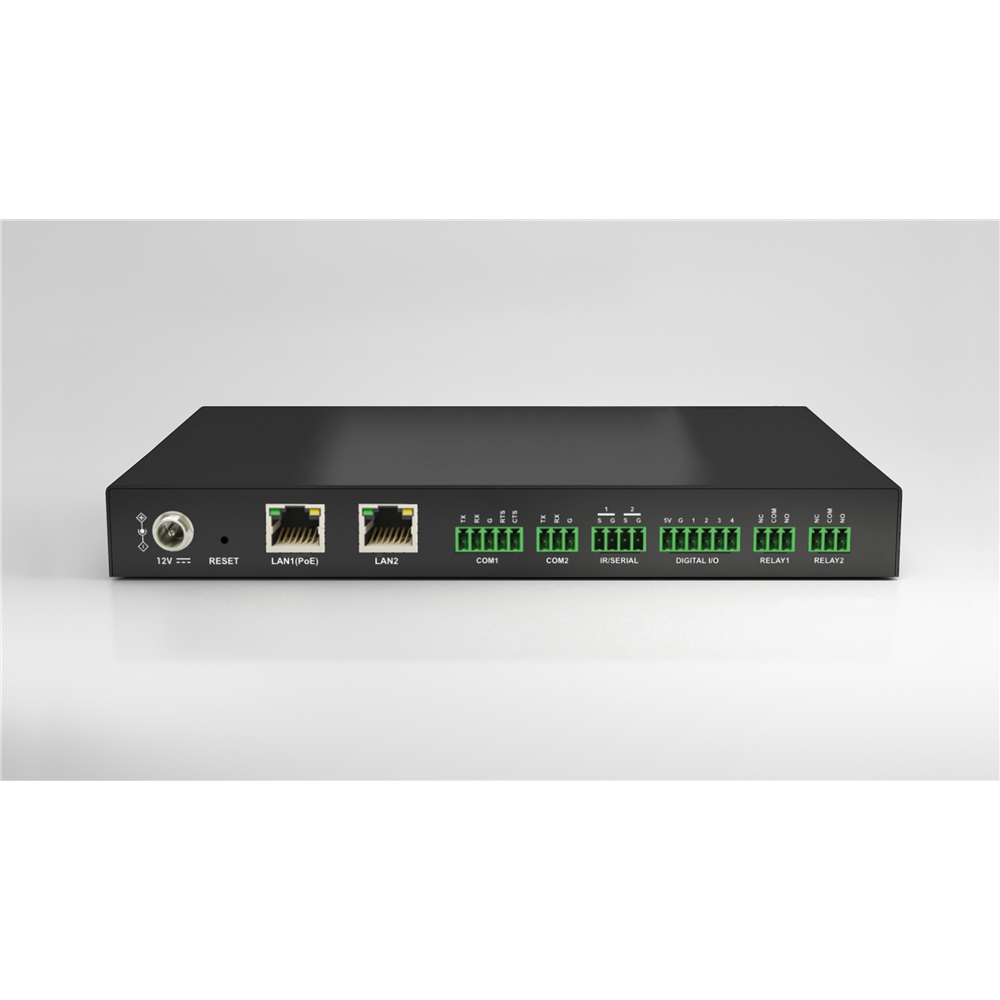

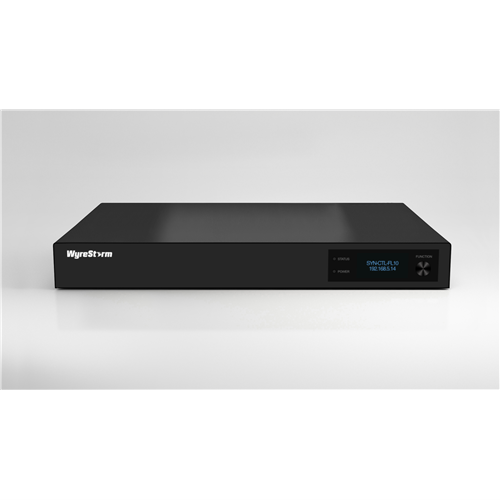

Synergy Control Flow FL10 Processor
Powerful and flexible compact automation controller SYN-CTL-FL10 is designed to simplify the integration and management of modern AV, building, and IoT systems. Built on the proven Node-REDTM platform, it provides a visual, flow-based programming environment that enables rapid deployment, customization, and control without the complexity of traditional coding.
Open-Source PlatformBecause this solution is built directly on Node-RED™, a highly respected open platform backed by extensive community support, users benefit from a much gentler learning curve. This ensures you are never locked into a closed ecosystem, so while you have access to Wyrestorm training resources you simultaneously have immediate access to a vast, diverse open source community with online learning resources and tutorials.
AI FriendlyMany AI Large Language Models can create very accurate code due to extensive online resources You can just drop our API document into Anthropic ClaudeAI and it will create a JSON file which can be easily imported to Node-RED™. AI Large Language Models can also debug your code with high accuracy if you simply export your flow. With a library of over 5,000 pre-built nodes, and AI assistance, integration with third party hardware takes a fraction of time, compared to traditional programming.
Industrial Grade HardwareBy integrating robust, industrial-grade hardware with the advanced capabilities of Sygma cloud connectivity, businesses can significantly improve system reliability, streamline day-to-day maintenance workflows, and drastically lower their long-term operational costs.
Visual Programming LanguageBecause Node-RED™ is built as a visual programming language, even basic development tasks are handled by simply moving intuitive drag-and-drop nodes across a screen instead of writing lines of complex and traditional text-based computer code.
Technical SpecificationsGENERAL INFORMATION
LAN
2 x RJ45 Gigabit Ethernet ports
PoE Support
IEEE 802.3af PD (LAN 1)
Serial
1 x configurable RS-232/422/485 port, 1 x RS-232 port
IR
2 x configurable IR output / serial Tx ports
I/O Connections
4 x configurable digital input/output channels
Relay
2 x SPDT relay ports
Display
1 x OLED Screen
Button
1x RESET button; 1x Front Panel button
Control Method
LAN (Web UI / Telnet API)
Automation Platform
Node-RED
ENVIRONMENTAL
Operating Temperature / Humidity
32–113°F (0–45°C), 10%–90% RH, non-condensing
Storage Temperature / Humidity
−4–158°F (−20–70°C), 10%–90% RH, non-condensing
ESD Protection
Human body model: ±8kV (air-gap discharge) / ±4kV (contact discharge)
Power
12V DC; PoE
Power Consumption
3.6W (Max)
Dimensions (W x H x D)
215mm x 25mm x 120mm (8.46″ x 0.98″ x 4.72″)
Net Weight
1.54lbs (0.70kg)
GPIO DIGITAL INPUT
Input Voltage Range
0–30 VDC
Logic High Threshold
> 2 VDC
Logic Low Threshold
< 0.8 VDC
Undefined Region
0.8–2.0V DC
Input Impedance
> 10k ohms
Pull-up Resistor
Programmable 5 V, 1k Ω
GPIO DIGITAL OUTPUT
Output Impedance
60Ω
POWER
5V 0.2A
RELAY
Contact Rating
1 A @ 30 VAC/VDC
IR OUTPUT
Carrier Frequency
20 kHz – 60 kHz
COM PORTS
Baud Rate
Up to 115200 bps
Protocols
Port 1: RS-232 / RS-422 / RS-485; Port 2: RS-232
Flow Control
RTS/CTS (COM1 only)
Pin Definition
RS-232: 1 = Tx, 2 = Rx, 3 = GND, 4 = RTS, 5 = CTSRS-422: 1 = Tx-, 2 = Rx+, 3 = GND, 4 = Tx+, 5 = Rx-RS-485: 1 = Tx-, 3 = GND, 4 = Tx+
In the Box1x SYN-CTL-FL10 Unit1x 12V DC Power Adapter4x AC Power Cord (US, EU, UK, AU plugs)3x 3.5mm 3-pin Phoenix Male Connectors1x 3.5mm 4-pin Phoenix Male Connector1x 3.5mm 5-pin Phoenix Male Connector1x 3.5mm 6-pin Phoenix Male Connector4x Wall Mount Brackets (with Screws)2x Rack Mount Brackets1x Quickstart Guide
