RTI 100M 4K60 4:4:4 HDBASET EX TENDER KIT W/ ARC & ETHERNET

Product Code: RT-VEX10018GKIT

Brand
RTI
RRP: POA


Quantity In Cart:
Unit of Measure
EACH



3 Year
Technical Specifications
Brands RTI
Input/output type HDMI
Product type Extenders
  • Details
  • Downloads
  • Where to Buy
  • Ordering

VEX100-18G-KIT HDBaseT Extender Kit

The VEX100-18G-KIT offers the very best in extender performance and flexibility. This exceptional 4K HDBaseT™ solution delivers ultra-high resolution HDMI video with HDCP 2.2 support, bi-directional IR, RS232 and PoH (Power over HDBaseT) up to lengths of 328ft/100m over a single CAT-5e or higher cable. The VEX100-18G-KIT also provides installers the ability to extend the control network without the need for additional cables.

Included in the box: VEX100-18G-TX (1), VEX100-18G-RX (1), IR Receiver (1), IR Transmitter (1),15V/2A DC power supply (1), Mounting brackets (2)


Details

HDBaseT™
No bottleneck with the latest HDBaseT™ 18Gbps standard that provides the highest possible bandwidth that currently exists.

4K UHD
Enjoy stunning picture quality with 4K UHD resolution.

2160p/60Hz/4:4:4
Eliminate blurred fast motions in action movies. 4K resolution paired with 60Hz refresh rate provides a crystal clear and crisp picture quality.

Long Distance
Go beyond the distance limitations of HDMI cables. 4K 60Hz 4:4:4 video can be transmitted over a Cat-5e cable up to 230ft/70m and 1080p video up to 328ft/100m.

HDCP 2.2
Be fully compliant with the latest copy protection algorithms to avoid black screens when connecting an HDMI source.

ARC
Watch TV or movies in 5.1 Dolby or DTS audio by sending the TV audio to an AVR located up to 328ft/100m away.

Power over HDBaseT™
Get rid of extra power supplies for HDBaseT™ receivers. Remote devices can be powered over the HDBaseT cable.

Features

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Supports 4K UHD video up to 70m (Full 3840 x 2160 @50/60Hz 4:4:4 resolution) and 1080P up to a distance of 100m over single CAT cable
  • Supports ARC (Audio Return Channel) from connected display via HDMI or optical digital inputs
  • Supports Bi-directional IR from all input and output locations and bi-directional RS-232 pass through”
  • Supports all known HDMI audio formats including Dolby TrueHD®, Dolby Atmos®, Dolby Digital Plus® and DTS-HD Master Audio® transmission
  • Extend your control network with an integrated Ethernet port (LAN Serving).
  • Supports bi-directional PoH (Power over HDBaseT™) to power extender from either the transmitter or receiver end
  • HDCP 2.2 support

Specifications

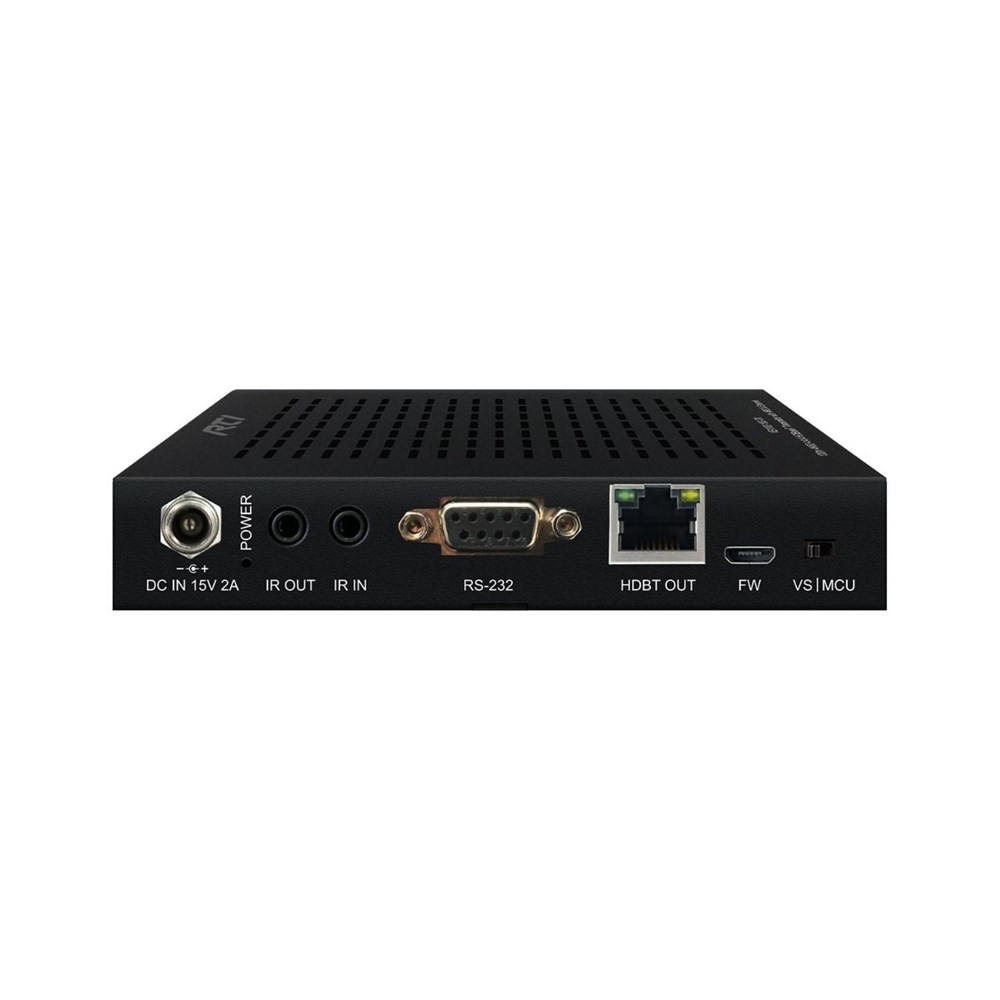

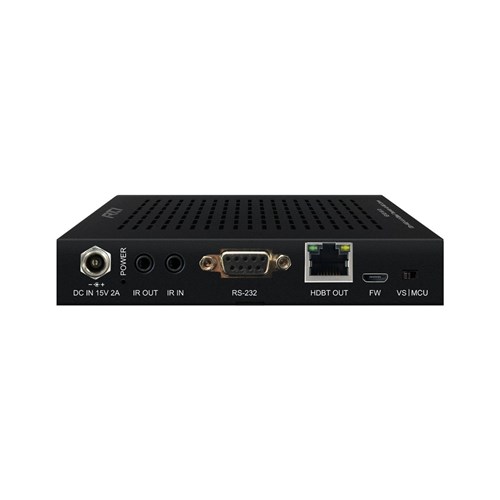

VEX100-18G-TX Transmitter

  • Video Input Connectors:    1 x HDMI Type A, female
  • Video Output Connectors:    1 x HDBaseT™ RJ45 Connector
  • Audio Output Connectors:    2 x RCA (L/R), 1 x Optical (SPDIF)
  • Ethernet Port:    1 x RJ45 Connector
  • RS-232 Serial Port:    1 x DB-9 female
  • IR Input Ports:    1 x 3.5mm Stereo Jack
  • IR Output Ports:    1 x 3.5mm Mono Jack
  • Dimensions (without connectors or feet):    5.3” x 5.1” x .9” (134mm x 129mm x 22mm)

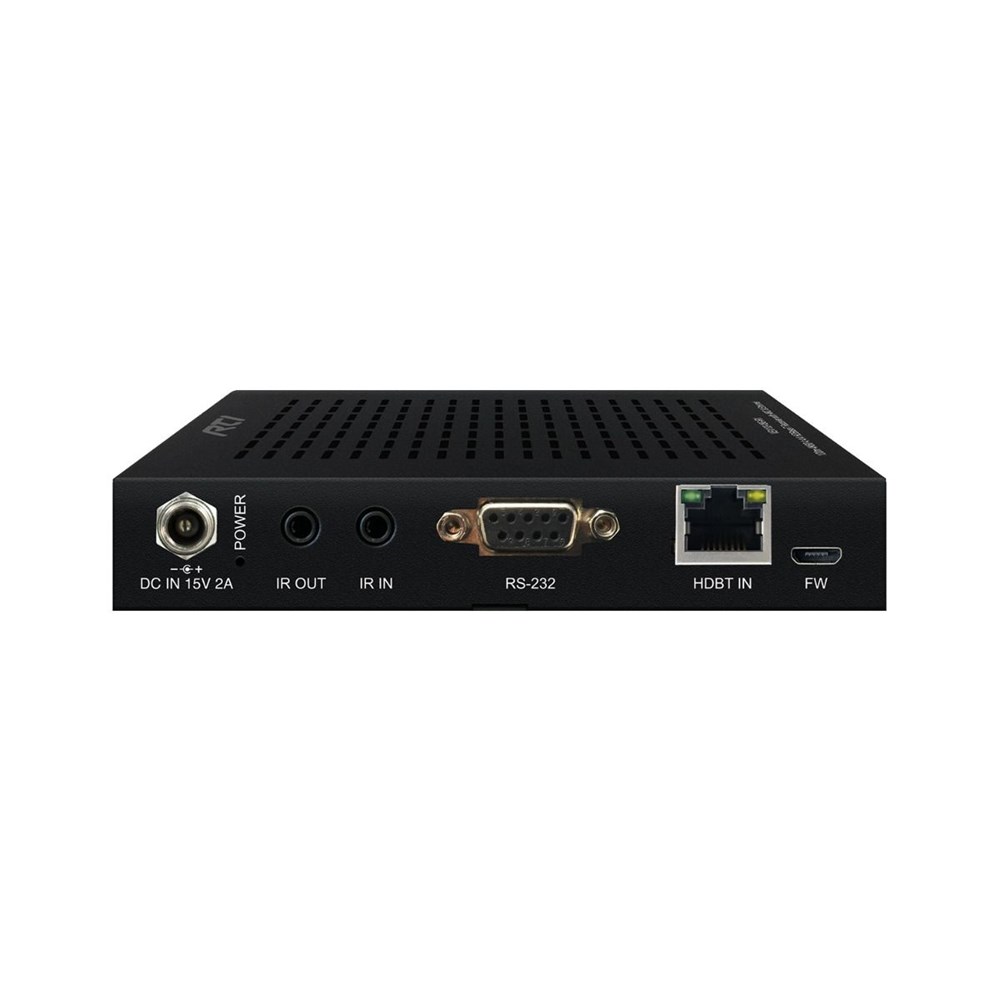

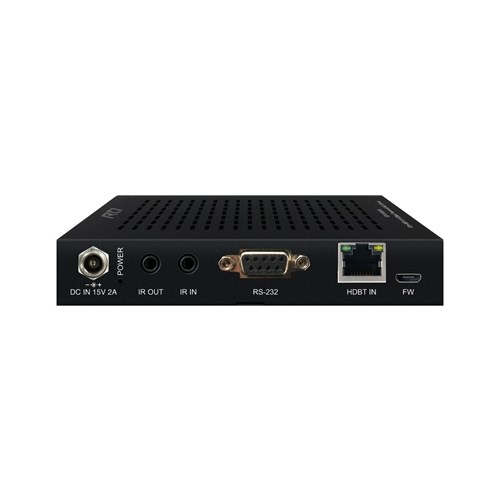

VEX100-18G-RX Receiver

  • Video Input Connectors:    1 x HDBaseT™ RJ45 Connector
  • Video Output Connectors:    1 x HDMI Type A, female
  • Audio Intput Connectors:    1 x Toslink
  • Ethernet Port:    1 x RJ45 Connector
  • RS-232 Serial Port:    1 x DB-9 female
  • IR Input Ports:    1 x 3.5mm Stereo Jack
  • IR Output Ports:    1 x 3.5mm Mono Jack
  • Dimensions (without connectors or feet):    5.8” x 5.1” x .9” (148mm x 129mm x 22mm)

General Specs

  • Power Supply:    1 x 15V/2A DC, Screw Connector
  • HDBaseT™ Transmission Distance:
    • 1080p@50/60Hz ≤ 328ft (100m)
    • 3840 x 2160 @50/60Hz 4:4:4 ≤ 229ft (70m)
  • Max. Bandwidth:    18Gbps
  • Shipping Weight (Kit):    3.5lbs (1.6kg)
  • Operating Temperature:    32°F to 104°F (0°C to 40°C)
  • Storage Temperature:    -4°F to 140°F (-20°C to 60°C)
  • Warranty:    Three Years (Parts & Labor)
