Professional Tracking Camera PTC500+ Aver

Product Code: AF-PTC500+

Brand
Aver
RRP $6,929.00


Quantity In Cart:
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
No refurbished products
3 Year
Technical Specifications
Brands AVer
Product Category PTZ Cameras
Native Resolution 1080p
  • Details
  • Downloads
  • Where to Buy
  • Ordering

PTC500+

The Future of Tracking


Professional Auto Tracking Camera
The PTC500+ integrates auto tracking, Multi-Presenter Detection, and streaming with a superior dual lens tracking design.
Boasting a PTZ camera with a powerful 30X optical zoom and a secondary 120° FOV panoramic camera, the PTC500+ stably captures full HD 1080p video without the need for a camera operator.

  • 30X Optical Zoom
  • 120° FOV
  • 3 Tracking Modes
  • Multi-Presenter Detection
  • USB / IP / HDMI / 3G-SDI
  • Full HD 1080p

USB Connectivity Rocks!

Are you ready to experience plug-and-play video streaming? New USB connectivity for the PTC500+ allows you to shift from audience mode to presenter mode during a video conferencing session. Also, unparalleled UVC and UAC protocols make these cameras compatible with popular streaming and broadcasting software so you can go live anytime.

Up to 30X Optical Zoom
Featuring a PTZ camera with market-leading 30X optical zoom, the PTC500+ sports a 350° pan and 120° tilt radius that are perfectly suited for large classrooms or auditoriums. Full HD 1080p 60fps video and a powerful remote autofocus function track the moving presenter more precisely and display important details more distinctly. Capture the full joy of the classroom with the most realistic and dynamic image quality.


No Extra Devices Needed
Exclusive algorithms enable the PTC500+ to automatically track a presenter’s face and movements. Speakers are free to walk around the classroom without wearing any accessories to give guidance and solve problems for students, ensuring quality education. With no need to worry about the connection restrictions, charging security, or added expense of a wearable device, you can focus on building zero-distance interactive teaching.

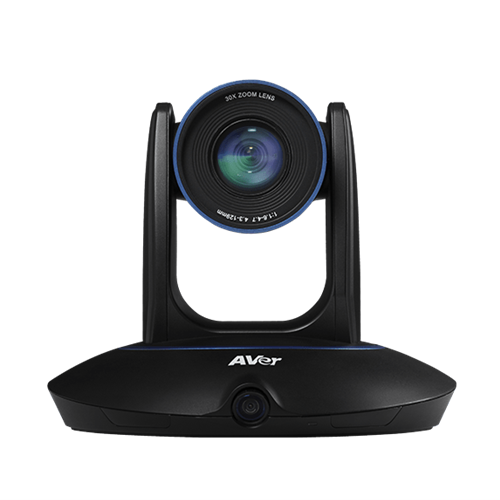

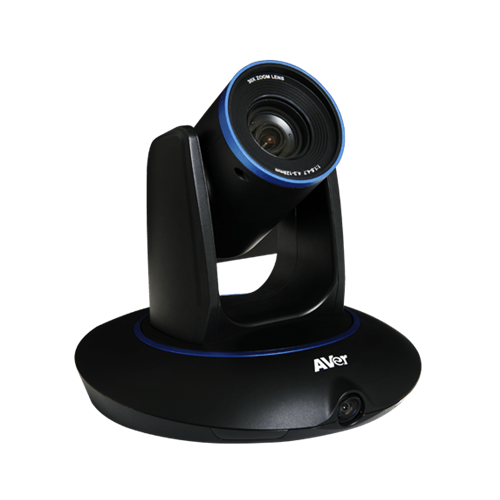

Dual Lens Design
A dual lens design integrates a PTZ camera with a super-wide 120° FOV secondary camera to track the speaker and capture a panoramic view of the classroom at the same time. Also, enable and adjust PIP mode while capturing to simultaneously view the speaker and the rest of the room. Clearly present every detail of the lesson and never miss a teachable moment.

Multi-Presenter Detection
Multi-Presenter Detection accurately helps when there are two or more people in the effective area. This feature allows the camera to continue tracking when teachers conduct group discussions, interactive games, and more in front of the class. Use one camera to capture every detail of every learning situation.

*Multi-Presenter Detection only works in Wide Area Tracking and Stage Tracking modes.

Three AI Tracking Modes

  • Wide Area Tracking
    Capture Every Interaction
    Track your target everywhere with Wide Area Tracking. This feature provides presenters the flexibility to leave the stage and interact with a crowd or students, all while being continuously tracked even if obscured by other people or objects.
  • Stage Tracking
    Create Perfect Video
    Get high-quality, hands-free video streaming and recording with Stage Tracking. Fluidly track your target with Effective Zone settings allowing for up to 8 blocking zones to capture strategic, professional-looking video.
  • Segment Tracking
    Never Miss The Content
    Segment Tracking enhances your ability to capture content on multiple displays. Create up to 4 Content Zones to perfectly capture the content on display rather than the presenter.

Specifications

Camera
  • Image sensor: 1/2.8" 1080p Exmor CMOS
  • Effective Picture Elements: 2 Megapixels
  • Output Resolutions: Auto, 1080p/60, 1080p/50, 1080p/30, 1080i/60, 1080i/50, 720p/60
  • Minimum Illumination: 0.47 Lux (IRE50, F1.6, 60fps); 0.23 Lux (IRE50, F1.6, 30fps)
  • S/N Ratio: >50dB
  • Gain: Auto, Manual
  • TV Line: 900 (Center), 600 (Corner)
  • Shutter Speed: 1/5 to 1/32,000 sec
  • Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS)
  • White Balance: Auto, Manual
  • Optical Zoom: 30X
  • Digital Zoom: 12X
  • Sensor Zoom: 1X
  • Viewing Angles:
    • DFOV : 73° (Wide) to 2.6° (Tele)
    • HFOV : 65° (Wide) to 2.3° (Tele)
    • VFOV : 38° (Wide) to 1.3° (Tele)
  • Focal Length: f = 4.3 mm (Wide) to 129 mm (Tele)
  • Aperture (Iris): F = 1.6 (Wide) to 4.7 (Tele)
  • Minimum Working Distance: 0.1 m (Wide), 1.2 m (Tele)
  • Pan / Tilt Angles:
    • Pan: ±175°
    • Tilt: +90°/-30°
  • Pan / Tilt Speed (Manual):
    • Pan: 2° to 50°/sec
    • Tilt: 2° to 50°/sec
  • Preset Speed:
    • Pan: 160°/sec
    • Tilt: 160°/sec
  • Preset Positions: 10 (IR), 256 (RS-232)
  • Camera Control - Interfaces: RS-232 (DIN8)/IP
  • Camera Control - Protocols:
    • VISCA (RS-232/IP)
    • PELCO-D & PELCO-P (RS-232)
    • CGI (IP)
  • Image Processing: Noise Reduction
  • Power Frequencies: Auto, 50 Hz, 60 Hz
Panoramic Camera (Full View)
  • Image Sensor: 1/2.8" 60fps low lux CMOS sensor
  • Effective Picture Elements: 2 Megapixels
  • Output Resolutions: auto, 1080p/60, 1080p/30, 720p/60
  • Focal Length: 2.12 mm
  • White Balance: Auto
  • Exposure: Auto
  • Viewing Angles:
    • DFOV = 120°
    • HFOV = 110°
    • VFOV = 74°
AI Auto Tracking Functions
  • Tracking Modes: Wide Area, Stage, Segment
Audio
  • Channels:
    • 1ch Mono (RTSP)
    • 2ch Stereo (HDMI/UAC)
  • Codecs:
    • AAC-LC (48K)
    • G.711 (8K)
  • Sample Rate: 48/8 KHz
Interface

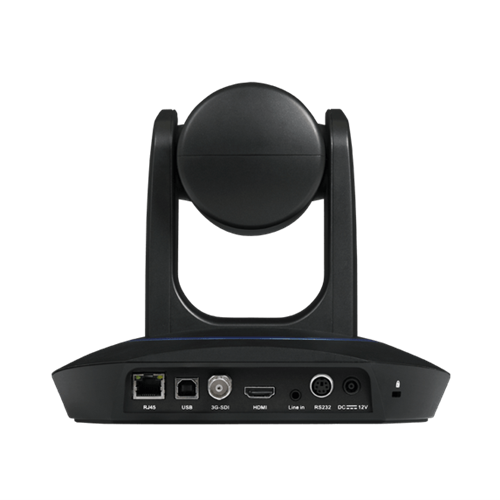

  • Video Outputs: 3G-SDI, HDMI, IP, USB
  • Audio Outputs: HDMI, IP, USB
  • Audio Inputs: Line in
General
  • Power Requirement: AC 110–220V to DC 12V/5A
  • Power Consumption: 24W
  • PoE: PoE+
  • Dimensions (W x H x D): 202 x 178 x 210 mm
  • Net Weight: 1.75 (±0.1) kg
  • Application: Indoor
  • Tally Lamp: N/A
  • Security: Kensington Slot

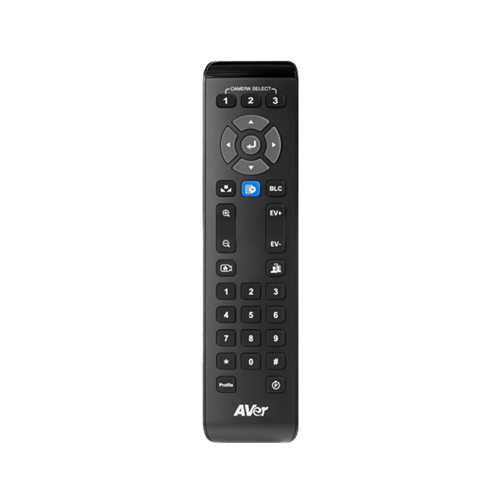

  • Remote Control: Infrared
  • Operating Conditions:
    • Temperature: 0°C to 40°C
    • Humidity: 20% to 80%
  • Storage Conditions:
    • Temperature: -20°C to 60°C
    • Humidity: 20% to 95%
IP Streaming
  • Resolution: 1080p 60fps (Dual Stream)
  • Network Video Compress Formats: H.264, MJPEG
  • Maximum Frame Rate: 1080p 60fps (Dual Stream)
  • Bit-Rate Control Modes: CBR
  • Bit-Rate Range Setting: 512 Kbps to 6 Mbps
  • Network Interface: 10/100/1000 Base-T
  • Multi-stream Capability:
    • 3 (2 for RTSP, 1 for Web Page)
    • 1080p 60fps (max.)
  • Network Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA Over IP, ONVIF
  • NDI®|HX Capability: N/A
USB
  • Connector: USB 2.0
  • Video Formats: MJPEG, YUY2
  • Maximum Video Resolution: 1080p
  • USB Video Class: UVC1.1
  • USB Audio Class: UAC1.0
Web UI
  • Live Video Preview: Yes
  • Camera PTZ Control: Pa, Tilt, Zoom, Focus, Preset Control
  • Camera/Image Adjustment: Exposure, White Balance, Picture
  • Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
  • IP Searching and Configuration Tool: Supports Windows® 7 or later
  • PTZ Management: Supports Windows® 7 or later
  • PTZ Control Panel: Supports iPadOS® 11 or later
  • CaptureShare:
    • Supports Windows® 7 or later
    • Supports macOS® 10.14 or later
Warranty
  • Camera: 3 Years
  • Accessories: 1 Year
  • Package Contents:

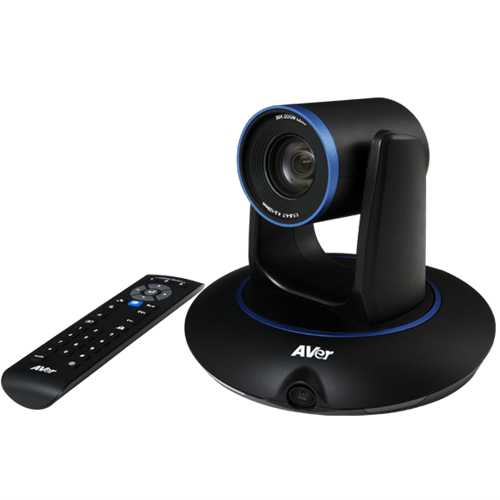

    • Remote Control
    • Power Adapter
    • Power Cord
    • Quick Start Guide
  • Optional Accessories
    • AVer CL01 PTZ Camera Controller
    • L-Type Wall Mount
    • D-Type Ceiling Mount
