Radial JDI Duplex - Premium Stereo Passive DI Inputs: 1/4", 3.5mm, RCA & XLR

Product Code: RA-DUPLEX

Brand
Radial Engineering
RRP $869.00
*Recommended Retail Price may not be a true representation of the market price

Quantity In Cart:
Unit of Measure
EACH



3 Year
Features
UPC EAN 06761010 3409 3 Radial Part No. R800 1020

Technical Specifications
Brands Radial Engineering
Product Category Vocal and instrument processors
Product type Audio Interfaces
Product type DI boxes
  • Details
  • Downloads
  • Where to Buy
  • Ordering

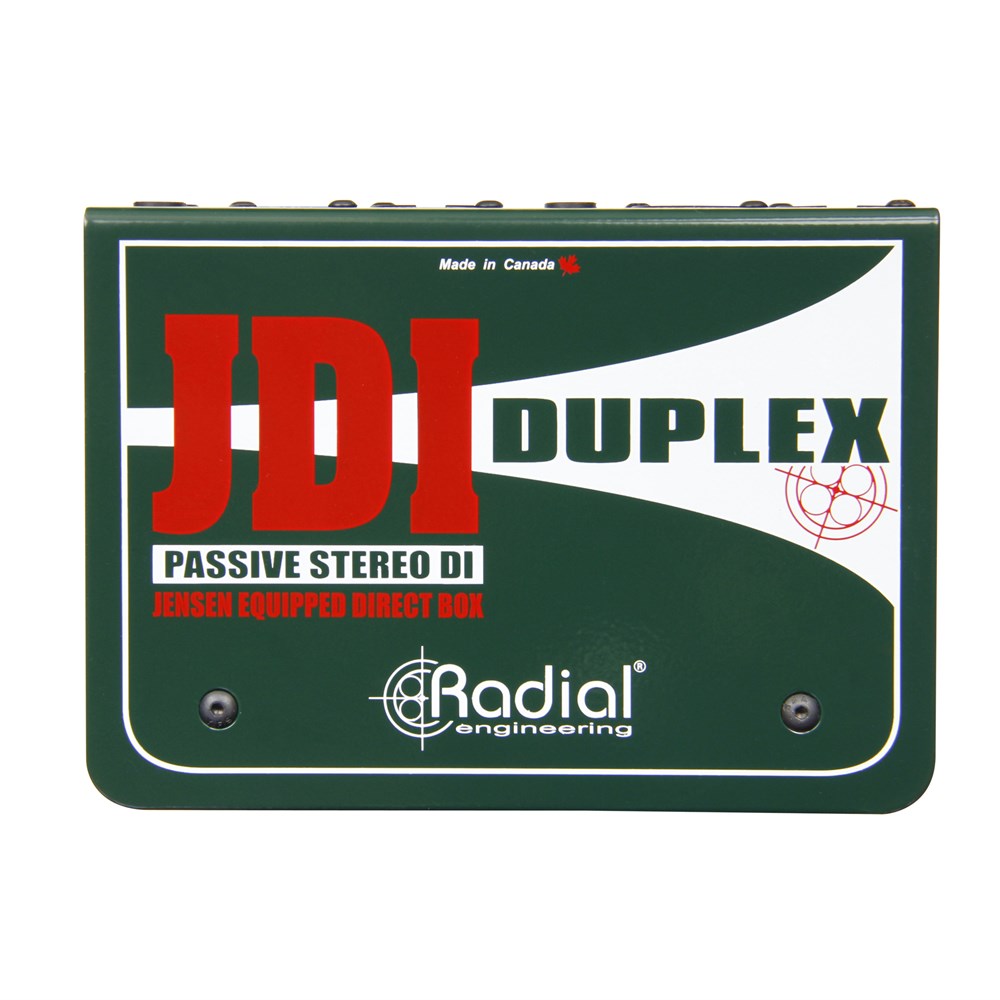

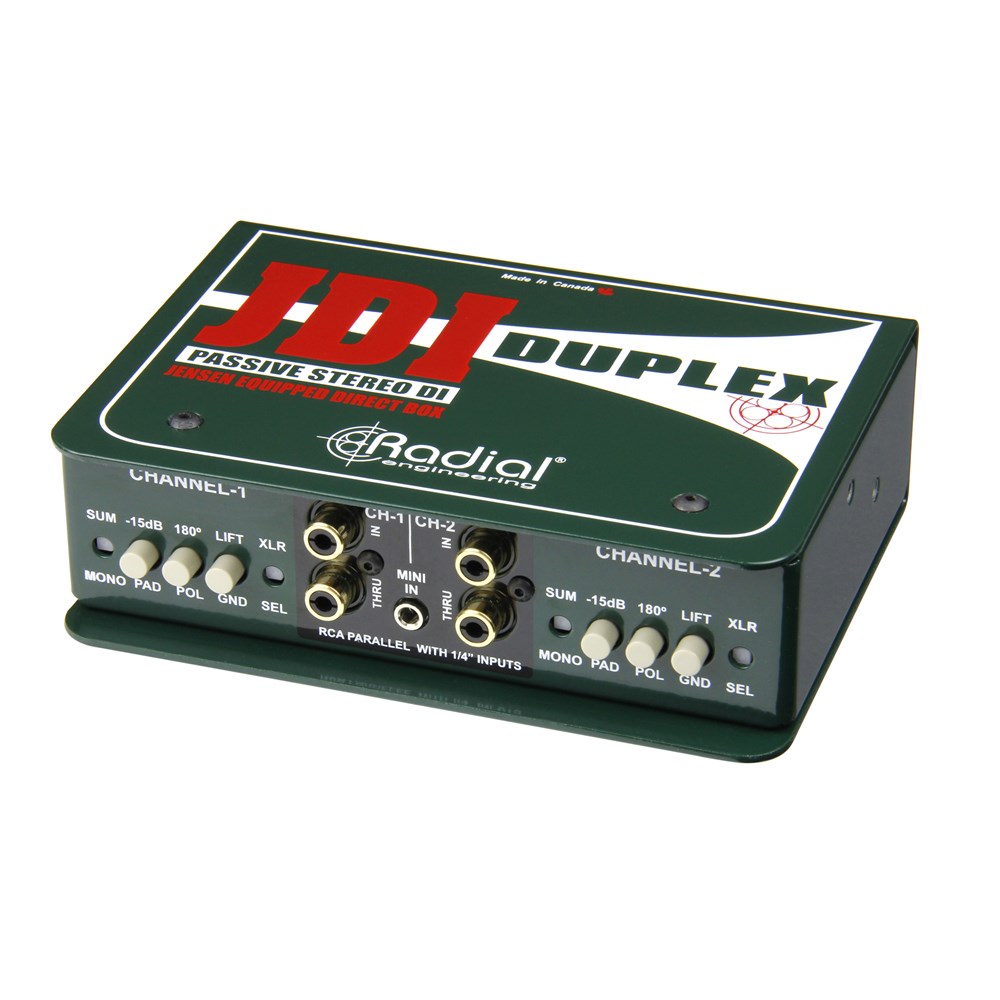

Passive Full-Featured Stereo Direct Box

The JDI Duplex is a high performance 2-channel passive direct box designed for enhanced connectivity for any application, with numerous input connector types and premium Jensen transformers for exceptional audio performance.



  • Jensen transformer equipped passive DI
  • Eliminates hum and buzz from ground loops

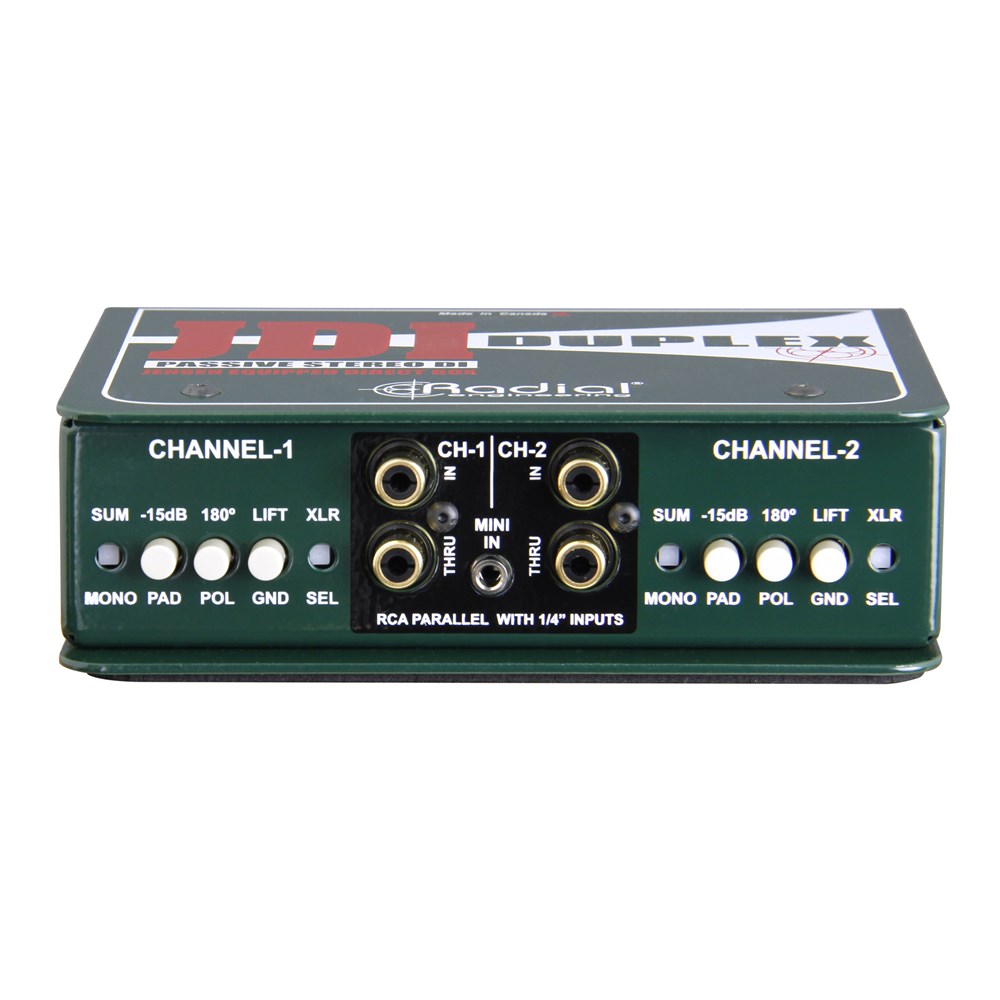

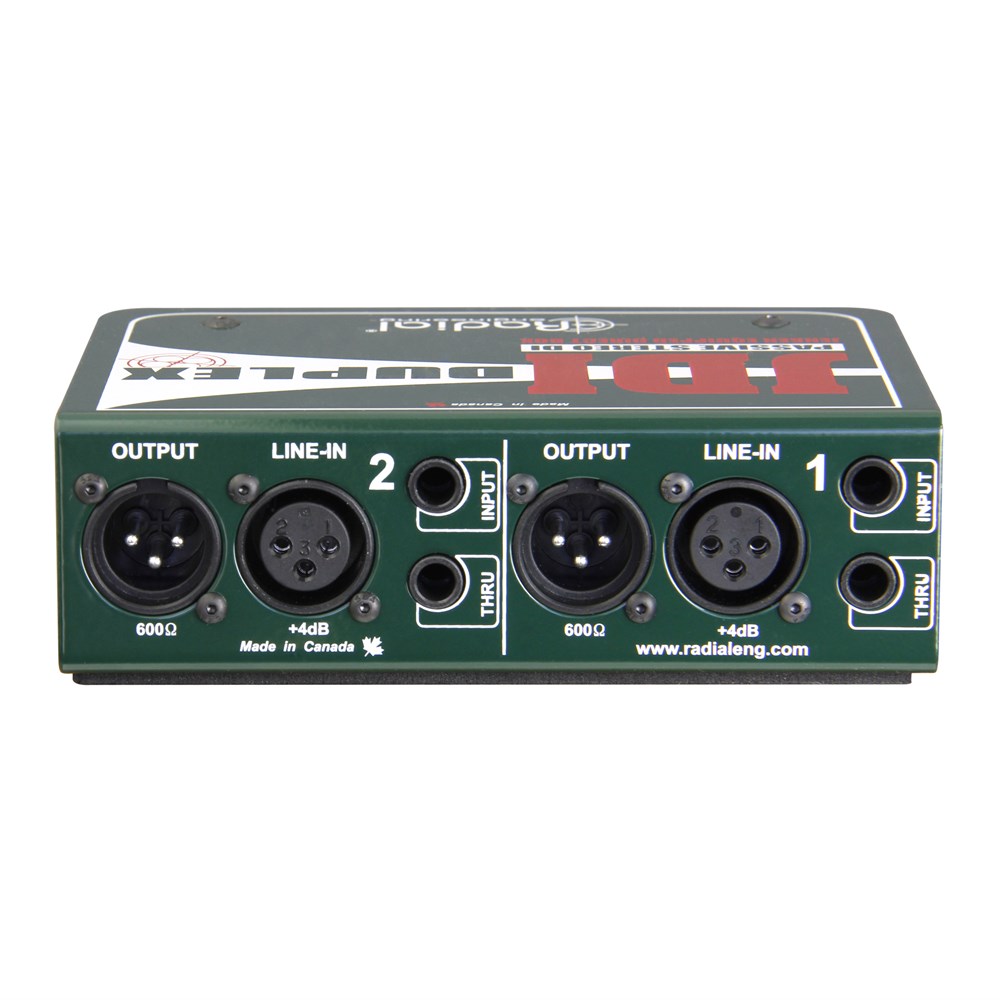

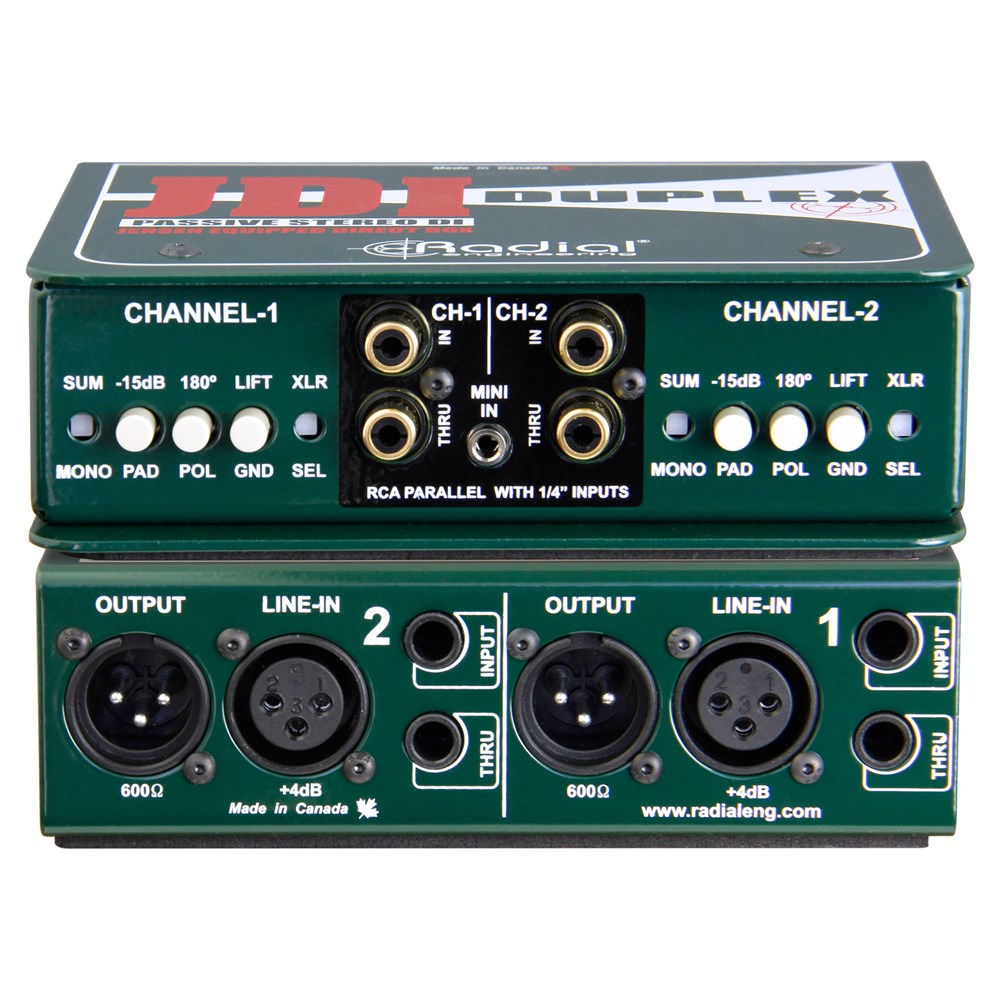

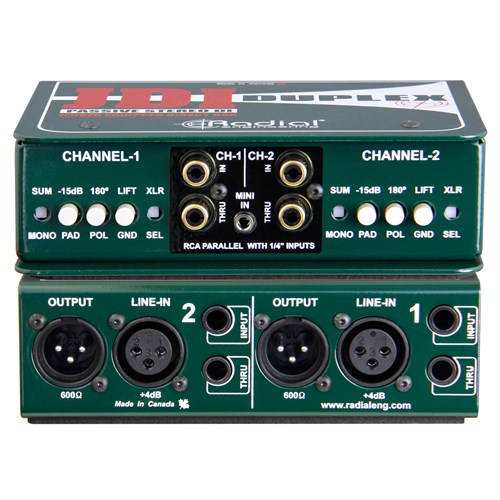

  • 1/4″, 3.5mm, RCA, and XLR inputs to connect to any source
  • Exceptional signal handling and noise rejection

Unparalleled tone, multiple connector options

The JDI Duplex takes the exceptional transparency and wide bandwidth of the JDI Stereo passive direct box, and adds numerous connector types and line-level inputs to provide the audio technician with the ability to interface with any stereo sound source. Designed to handle extreme signal levels without distortion, it utilizes two world-class Jensen JT-DB-EPC audio transformers to deliver a smooth, warm sounding Bessel curve - reminiscent of the finest vintage gear. Ruler flat from 10Hz to 40kHz and with virtually zero phase deviation, the JDI Duplex delivers the natural, pure sound of the instrument without artifact. The inputs can be accessed via 1/4", RCA, 3.5mm TRS, or XLR line-level connectors, making it easy to plug in any sound source, from stereo instruments to consumer playback equipment, or professional +4dB line-level audio equipment.

JDI Duplex Applications

Duplex in Multimedia System

Whether you have a CD player, iPod, computer or professional +4dB balanced source, the Duplex can handle any situation.

Duplex with Stereo Keyboard

The Duplex is able to withstand huge transients without distortion. This gives digital keyboards a warm, smooth vintage tone.

Duplex with Two Stereo Sources

With the dual stereo architecture, the Duplex can easily be set up to handle two different stereo sources at the same time.

Artists

Jan Ozveren

Charlie Puth, Alejandro Sanz, Shakira, Jennifer Hudson, Frank Ocean, Corinne Bailey Rae

"I prefer Radial DIs over any other DI box for their warmth and transparency, as well as size and functionality. I use the Radial JDI Stereo and JDI Duplex, both are unrivaled in their range of interfacing products for guitar and beyond!"

Ric'Key Pageot

Madonna, Justin Timberlake, Timbaland, Musical Director - Cirque du Soleil

"I'm really happy with my Radial Duplex DI. In the past I always found it hard to get a good warm piano sound in without being abrasive but since I've been using the Duplex, I'm not afraid to push anymore when playing a piano patch. I also love the fact that I can use the RCA as a thru to go to my personal keyboard monitor. Smart!"
