Amplifiers

}

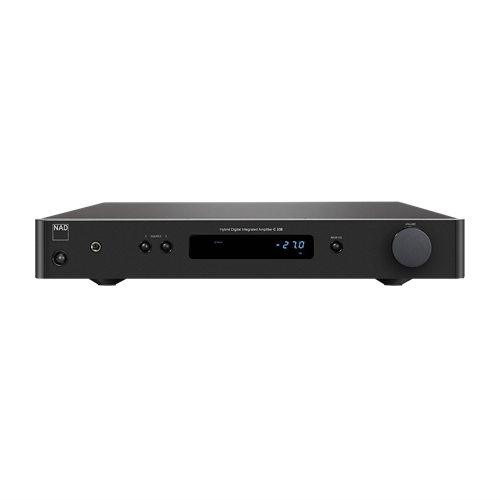

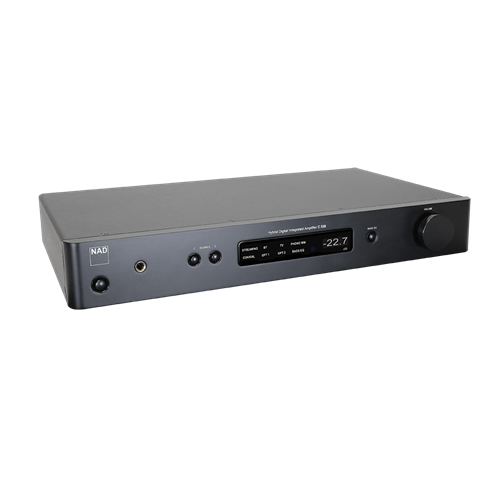

NAD C 338 HYBRID DIGITAL DAC AMPLIFIER

Product Code: NA-DC338

Brand
NAD
RRP $1,299.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands NAD
Amplifier Type Integrated Amplifier
Channel count 2
Series Classic Series
  • Details
  • Downloads
  • Where to Buy
  • Ordering

NAD'S most versatile amplifier ever with chromecast built-in & hybrid digital technology

The C 338 adds big sound to your favourite music sources and brings incredible flexibility to any stereo system. With Spotify Connect®, Bluetooth®, and the first-ever hi-fi amplifier to have built-in Chromecast®, the C 338 allows you to stream and cast music directly from any music streaming app, letting you enjoy your music wirelessly. Add a turntable using the phono input and experience the warmth of vinyl collections with the room-filling sound of NAD’s HybridDigital™ amp technology. Power, volume, source selection, and device settings are all controlled using the intuitive interface of the NAD Remote App for iOS and Android.

NAD's Most Versatile Amplifier Ever with Chromecast built-in and Hybrid Digital Technology


Introducing the NAD C338
Getting the Basics Right
Built with NAD’s renowned music-first approach to audio architecture and amp design, the C 338 is equipped with the most advanced components commonly found in NAD’s class-leading line of amplifiers. Always starting with the details you can hear and advancing from there, NAD develops low-noise circuitry with the precision and stability to deliver incredible, near-zero distortion sound for the most difficult speakers.

HybridDigital™ Amp Technology
The search for a high-performance Class D solution led NAD to HybridDigital™, an innovative amplifier technology that uses a variable modulation frequency to bring out the life-like qualities of music, while reducing distortion under every operating condition. This highly optimized design gives phenomenal performance to the C 338 amplifier, both measured and subjective.

Efficient Class D Power
NAD has worked tirelessly to create the best performing Class D amplifiers that are energy efficient and produce beautiful sound—not heat—regardless of basic design principles. Using advanced measurements and data, NAD developed the C 338’s highly efficient power supply with a customised Hypex® UCD output stage to pump out 50 watts continuously and over 200 watts instantaneously to meet the demands of the most dynamic music. This new design is very linear over a wide bandwidth and provides consistent, noise-free performance for the amplifying stages with near perfect regulation of voltage.

Always Ready for Streaming
The C 338 has Chromecast built-in so you can cast music, tunes, podcasts, and playlists from your favourite apps on your phone, tablet or laptop to your stereo system. Spotify Connect® lets you discover millions of songs and stream them directly to your C 338 using the Spotify® app for a rich, wireless music experience. With the added flexibility of Bluetooth®, your music streaming possibilities are truly limitless with the C 338.

Built-in Phono Stage for Vinyl Listening
Using a MM phono stage and an innovative low-noise circuit path, the C 338 can reproduce the warmth of LPs with accurate RIAA equalization and control the infrasonic noise that is in all recordings, without ever affecting the bass response.

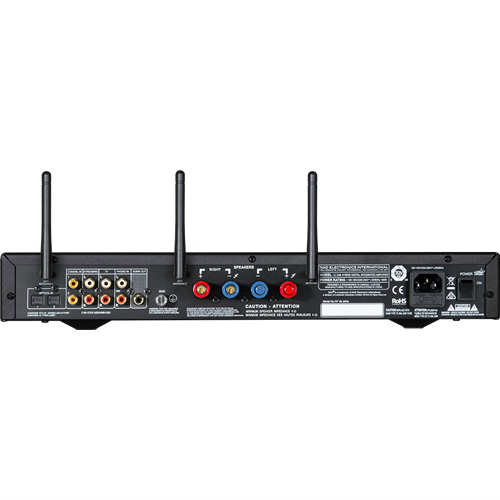

Flexible Connectivity
With a wide array of connections, including a separate headphone amplifier that can drive high-impedance studio monitor headphones, the C 338 is ready for any type of listening. Line inputs can accommodate all kinds of analogue source components, offering ideal input impedance with linear ultra-low noise buffer amplifiers to preserve the musicality of recordings. Also connect a subwoofer with low impedance line outputs and extend the versatility of this budget-friendly, do-it-all amplifier.

Key Features

  • 50W x 2 Continuous Power into 8 or 4 Ohms
    90W / 150W / 200W IHF Dynamic Power into 8 / 4 / 2 Ohms
  • First hi-fi amplifier to feature Chromecast built-in
    Integrated Bluetooth® for added music streaming flexibility
  • Built-in Phono Preamp for Turntables
    Stereo Line, Optical Digital and Coax Digital inputs
  • NAD Remote App support for tablet and smartphone
    Dedicated Headphone Amplifier
  • Subwoofer Output

Preamplifier

  • Line In, Subwoofer Out
    • THD (20Hz-20kHz)
      <0.005% at 2V out
    • Signal/Noise Ratio
      >106dB (IHF; A-weighted, 500mV out, unity gain)
    • Input Impedance (R and C)
      56 kilohm + 100pF
    • Maximum Input Signal
      >4.5Vrms (ref. 0.1% THD)
    • Output Impedance
      Source Z + 200 Ohm
    • Input Sensitivity
      50mV (100Hz ref. 500mV out, Volume maximum)
    • Maximum voltage output – IHF load
      >4.5V (ref. 0.1% THD)
  • Line In, Headphone Out
    • THD (20Hz-20kHz)
      <0.005% at 1V out
    • Signal/Noise Ratio
      >105dB (IHF; A-weighted, 32 Ohm loads, ref. 2V out, unity gain)
    • Frequency Response
      ±0.3dB (20Hz-20kHz)
    • Channel Separation
      >56dB at 1kHz
    • Output Impedance
      0.5 Ohm

General Specifications

  • Line In, Speaker Out
    • Continuous Output Power into 4 Ohms and 8 Ohms (Stereo)
      >50W (at rated THD, 20-20kHz, both channels driven)
    • IHF Dynamic Power
      8 Ohm 80W
      4 Ohm 150W
      2 Ohm 210W
    • THD (20Hz-20kHz)
      <0.03% (250mW to 50W, 8 Ohm and 4 Ohm
    • Signal/Noise Ratio
      >98dB (A-weighted, 500mV input ref. 1W out in 8 Ohm)
    • Clipping power
      >60W (at 1kHz 0.1% THD)
    • Peak output current
      >18A (in 1 Ohm, 1 ms)
    • Damping Factor
      >300 (ref. 8 Ohm, 20Hz to 6.5kHz)
    • Frequency Response
      ±0.3 dB (20Hz-20kHz)
    • Channel Separation
      1kHz >75dB
      10kHz >65dB
    • Input Sensitivity (For 50W in 8 Ohm)
      Line In: 380mV, Digital In: 18% FS
    • Sample Rate
      Up to 24 bit/192kHz
  • Phono In, Speaker Out
    • THD (20Hz-20kHz) (Stereo)
      <0.3% at 50W out
    • Signal/Noise Ratio
      >82dB (200 Ohm source, A-weighted, ref. 500mV out)
      >76dB (MM cartridge source, IHF A-weighted, ref. 500mV out)
    • Input Sensitivity
      4.1mV (ref. 50W 1kHz 4 Ohm out, Volume maximum)
    • Frequency Response
      ±0.3dB (20Hz-20kHz)
    • Input Impedance
      47 kilohm + 100pF
    • Maximum Input Signal
      >80mVrms (ref. 0.1% THD)

Power Consumption

  • at ECO Standby mode
    0.4 Watts*
  • at Control Standby mode
    1.8 Watts**
  • OFF mode (Power switched OFF)
    0 Watts
* – After 20 minutes of no user interface interaction and no active source input
** – With established wireless Bluetooth connectivity and 20 minutes of no user interface interaction and no active source input
NOTE: Bluetooth connectivity can be enabled or disabled via press and hold of PLAY button of AMP 3 remote control

Weight & Dimensions

  • Gross Dimensions (W x H x D)*
    435 x 70 x 285mm (17 1/8 x 2 13/16 x 11 1/4)”
  • Net Weight
    4.85kg (10.7lb)
  • Shipping Weight
    5.85kg (12.9lb)
