Hearing Loop and Induction Loop

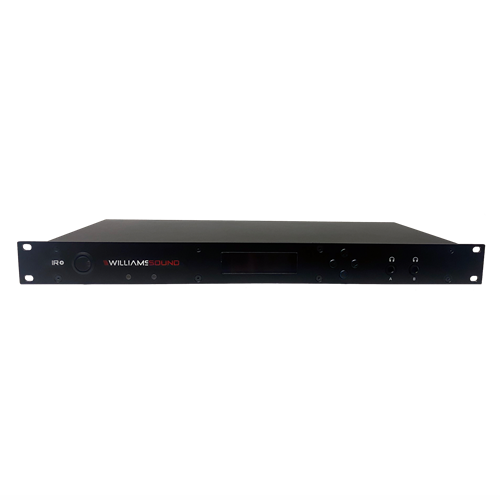

IR Plus Modulator w/ WaveCast

Product Code: WI-IRM1

Brand
Williams AV
RRP $6,599.00


Quantity In Cart:
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
No refurbished products
5 Year
Technical Specifications
Brands Williams AV
Product Category Hearing augmentation
Product Category Hearing Loop and Induction Loop
Product type IR Transmitter
  • Details
  • Downloads
  • Where to Buy
  • Ordering

IR Plus

Induction loop transmitters

IR TRANSMITTERS
IR M1


The IR Plus features a distributed infrared emitter array architecture allowing up to four emitters either stacked together for large room arrays or distributed throughout the room to accommodate wings in room design, balconies or other obscured venue locations.

The rack mounted or remotely located IR M1 Control Center comes standard with support for up to four IR emitters. Each emitter runs back to the modulator via a CAT5e cable, providing the audio and power needed to support the remote emitter. Each emitter has a coverage area of 18,000 sq. ft.

The IR Plus Control Center can also provide audio over Wi-Fi. Connect the IR M1 to a Wi-Fi multicast router or in-house network you can stream audio over Wi-Fi to the Williams AV WaveCAST app


IR M1

  • Dimensions:
    • 19” (W) x 1.75” (H) x 8.2” (D)
    • (48.3 cm x 4.5 cm x 20.8 cm)
  • Weight: 5.2lb. (2.4 kg)
  • Color: Black
  • Rack Mount: Single Rack Unit
  • Power Supply:
    • International Desktop Supply
    • Input: 36 W, 110-240 VAC 50-60 Hz
    • Output: +48VDC, 0.75A center-positive
  • Power Switch: Rocker switch with LED
  • Signal to Noise Ratio: 67 dB (typical)
  • Modulation: FM Wideband, +50kHz deviation, 50uS pre-emphasis
  • Carrier Frequency: Selectable, 2.3/2.8 or 3.3/3.8MHz
  • Frequency Response: 40 to 16,000Hz, +1 dB, -3dB, electrical response
  • Total Harmonic Distortion: Less than 2%, electrical response
  • Audio Processor Functions: DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
  • Auto Carrier Shut-Off: Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
  • Infrared Test LED: Dual IR LED for receiver testing, monitoring, and audio signal testing.
  • Audio Input: (2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
  • Dante: Optional
  • Internal Test Tone: 400 Hz internal test tone selectable as audio input source for setup and diagnostics
  • Remote Configuration: Available through embedded website
  • Headphone Output: (2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs
  • Emitter Output Jack: Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
  • Operating requirements: 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
  • Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
  • Warranty: 2 years on Modulator, 90 days on accessories
