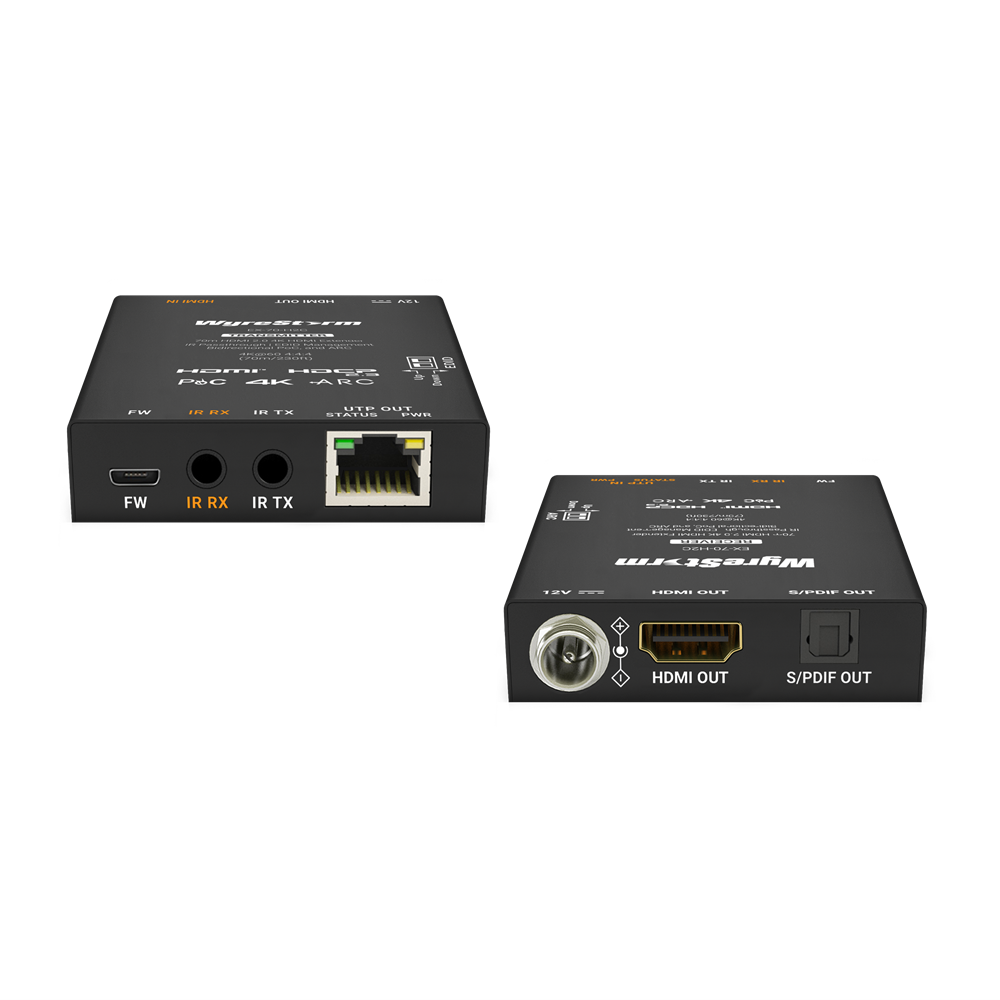

The EX-70-H2C is a high-performance video distribution solution designed for both residential home theaters and multi-media conference halls, capable of extending full 4K@60Hz (4:4:4) and 18Gbps signals up to 70m (230ft) over a single Cat6/6a cable. It includes an HDMI OUT loop-out on the TX unit for a local monitor, and features essential functionalities like bi-direction IR pass-through for remote device control, bi-direction POC (Power over Cable) for flexible power delivery, and ARC (Audio Return Channel) support with an S/PDIF audio de-embedding port, all packaged in a compact, durable steel chassis.
HDMI 2.0 and HDCP 2.2 compliant, supporting the highest available video bandwidth of 18Gbps to ensure transmission of premium 4K video, HDR, and gaming signals.
It extends HDMI and IR signals up to 230ft (70m) over a single Cat6/6a cable, or 164ft (50m) over Cat5e.
Features Power over Cable (POC), meaning only one power supply is needed for either the TX or RX unit, simplifying installation. It also supports bi-direction IR pass-through for controlling source devices from the display location and vice versa.

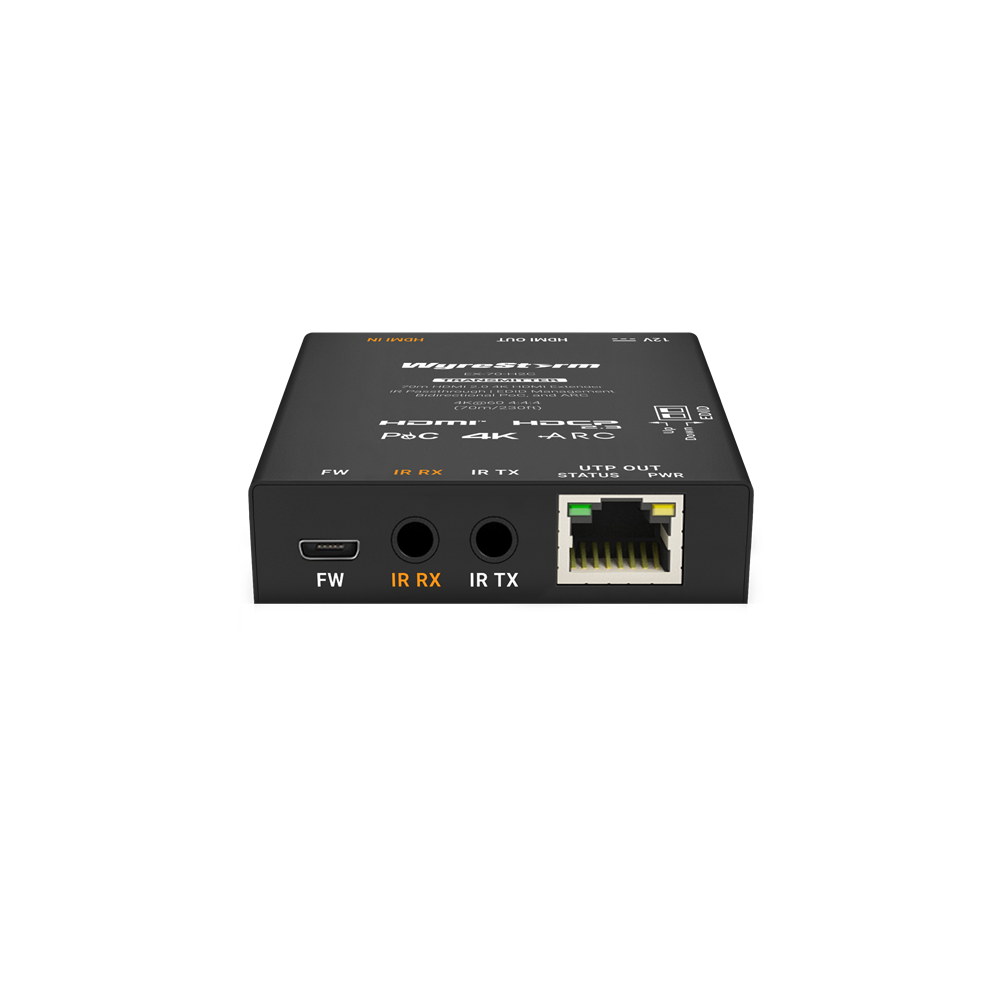

Includes an HDMI OUT port on the TX unit to connect a local display (loop-out). It also supports ARC (Audio Return Channel), allowing audio from the remote TV to be sent back and de-embedded via the S/PDIF output on the RX unit.
AUDIO AND VIDEO
Input/Output Signal Type
HDMI 2.0, HDCP 2.3
Input/Output Resolutions
Supports VESA and SMPTE resolutions up to 4K@60Hz (4:4:4), including 3840×2160@60Hz, 4096×2160@50Hz, 4K@30Hz, 3840×1080@60Hz, 3440×1440@60Hz, 2560×1600@60Hz, 2560×1440@60Hz, 2560×1440@50Hz, 1080P@120Hz, 1080P@100Hz, 1080P@75Hz, 1080P@60Hz, 720P@60Hz
Maximum Data Rate
18Gbps
Maximum Pixel Clock
600MHz
Supported Standards
DCI | RGB
Audio Formats
HDMI: Supports multichannel audio up to PCM 7.1, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio and DTS:XS/PDIF: PCM 2.0ch, Dolby Digital, DTS 5.1
Transmission Distance
Cat 6/6A/7:70m/230ft – 1080P@60Hz, 4K@60HzHDMI:Input/Output: 15m/49ft – 1080p@60HzInput/Output: 10m/33ft – 4K@60HzInput: 10m/33ft – 4K@30HzOutput: 15m/49ft –4K@30Hz
POWER
Power Supply
DC 12V/1A, PoC
Power Consumption (Max)
4.2W (per pair, via PoC)
ENVIRONMENTAL
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
10% to 90%, non-condensing
ESD Protection
Human-body Model: ±8kV (Air-gap discharge) / ±4kV (Contact discharge)
DIMENSIONS
Height x Width x Depth
15mm / 0.59in x 63mm / 2.48in x 80mm / 3.15in
Weight
0.29lb (0.13kg) per unit
Safety and Emission
CE | FCC | RoHS | RCM | EAC | UKCA
