  • EX-40-KVM-5K KVM Extender Kit for HDMI & USB. 4K60 40M USB2.0 to 350 Mbps, HDBT3.0
This is a Special Order Item

EX-40-KVM-5K KVM Extender Kit for HDMI & USB. 4K60 40M USB2.0 to 350 Mbps, HDBT3.0

Product Code: WY-EX40KVM5K

Brand
Wyrestorm
RRP $1,669.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
  • Details
  • Downloads
  • Where to Buy
  • Ordering
EX-40-KVM-5K is an HDBT 3.0 extender kit that delivers uncompressed video up to 5K@30Hz and 5120×1440@60Hz, with full support for 4K@60Hz 4:4:4 and all HDR formats. It supports USB 2.0 pass-through with 1x USB-B on TX and 4 x USB-A on RX, making it ideal for KVM applications. Audio features include HDMI audio format support, analog audio pass-through from TX to RX, and de-embedding on both ends. An HDMI loop-out is provided on the TX for local preview. RS-232 port functions are configurable via DIP switch for control signal pass-through and firmware updates.

Technical Specifications
AUDIO & VIDEO
Inputs

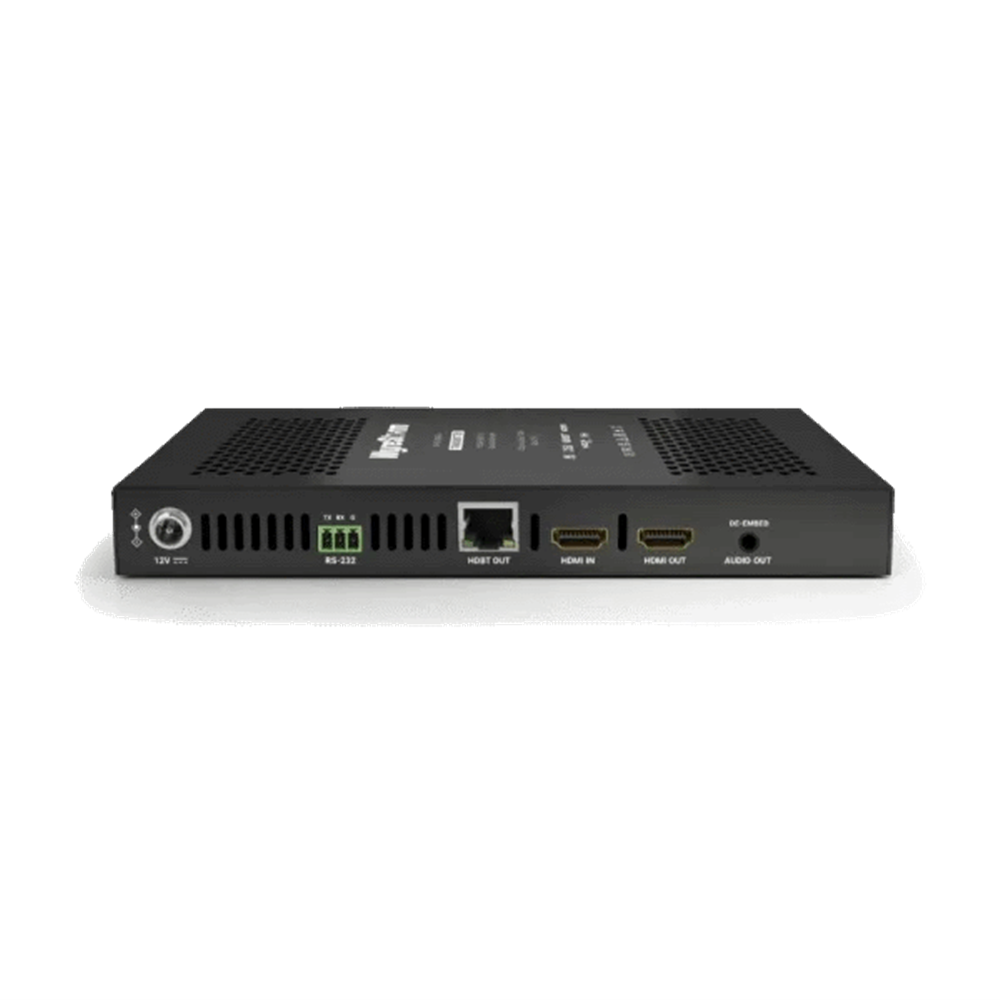

TRANSMITTER
1x HDBT OUT
1x RS-232
1x HDMI IN
1x HDMI OUT
1x Audio de-embed
1x Audio IN
1x USB 2.0 type-B (Host)

Receiver
1x HDBT IN
1x RS232
1x HDMI OUT
1x Audio de-embed
1x Audio out
4x USB 2.0 type-A (Devices)

Video Resolution

SMPTE:
1280x720P@60Hz 1920x1080I@60Hz, 1920x1080P@240Hz, 3840×2160@120Hz (YUV420), 4096×2160@60Hz, 4096×21609@120Hz (YUV420), 5120×1440@60Hz, 5120×2160@30Hz

VESA:
800×600@60Hz, 1024×768@60Hz, 1280×768@60Hz, 1280×800@60Hz, 1280×960@60Hz, 1280×1024@60Hz, 1360×768@60Hz, 1366×768@60Hz, 1400×1050@60Hz, 1440×900@60Hz, 1600×900@60Hz, 1600×1200@60Hz, 1680×1050@60Hz, 1920×1200@144Hz
2560×1440@144Hz, 2560×1600@60Hz, 2560×1600@120Hz (YUV420), 3440×1440@100Hz,
3840×1080@120Hz, 3840x 1440

Output Audio

HDMI & HDBaseT: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
Audio pass through & Audio de-embedding: PCM 2.0ch only

Data Rate

HDMI & HDBT: up to18 Gbps
USB 2.0: up to 350 Mbps

COMMUNICATION & CONTROL
HDMI
HDMI 2.0b | HDCP 2.3 | EDID | CEC

HDBaseT
HDMI 2.0 | HDCP 2.3 | EDID | USB 2.0 | CEC | RS-232 | 1-way PoH

RS-232
1x RS-232:3-pin Phoenix Female | Extender Control
Through the DIP Switch, can set the function of the RS-232 Port: RS-232 pass through over HDBT | Update MCU FW | Update the HDBT FW

POWER
Power Supply
DC 12V/3A

Additional Features
Supports HDMI 2.0b and HDCP 2.3
Supports all HDR formats, including static HDR (HDR10, HLG) and dynamic HDR (Dolby Vision, HDR10+).
Uncompressed HDMI 2.0 video transmission.
Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X.
Support update FW through RS232 port (setup by DIPSwitch).
One-way standard PoH (from RX to TX), one power adaptor connects to RX can power supply both TX and RX.
4-pin DIP Switch for configuration and upgrade.
EDID copy from the display.
12V/3A DC with US, EU, UK, AU Power cables included
Mounting brackets included
In the Box
1x EX-40-KVM-5KKVM Extender Transmitter
1x EX-40-KVM-5KKVM Extender Receiver
1x DC 12V 3A with US/EU/UK/AU cable
2x 3-pin 3.5mm Phoenix Male Connector
8 x Mounting Brackets (with Screws)
1x USB2.0 Type-A to Type-B cable
