EX-40-H2-ARC 4K60 Extender Set 4K:40M ,1080P:70M,RS232,2way IR ,Dolby Vision & HDR,ARC,PoH

Product Code: WY-EX40H2ARC

Brand
Wyrestorm
RRP $859.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
  • Details
  • Downloads
  • Where to Buy
  • Ordering
The EX-40-H2-ARC is a 4K60 4:4:4 HDBaseT 2.0 extender designed for residential applications that demand audio return flexibility. Featuring ARC and S/PDIF pathways from RX to TX and analog audio breakout from the HDMI input, this unit is the perfect fit for installations involving modern TVs and legacy audio systems.

4K HDR

Supports 4K@60Hz 4:4:4 over 40m with full HDR compatibility


AUDIO RETURN CHANNEL

Audio Return Channel (ARC) or S/PDIF return from RX to TX

AUDIO BREAKOUT

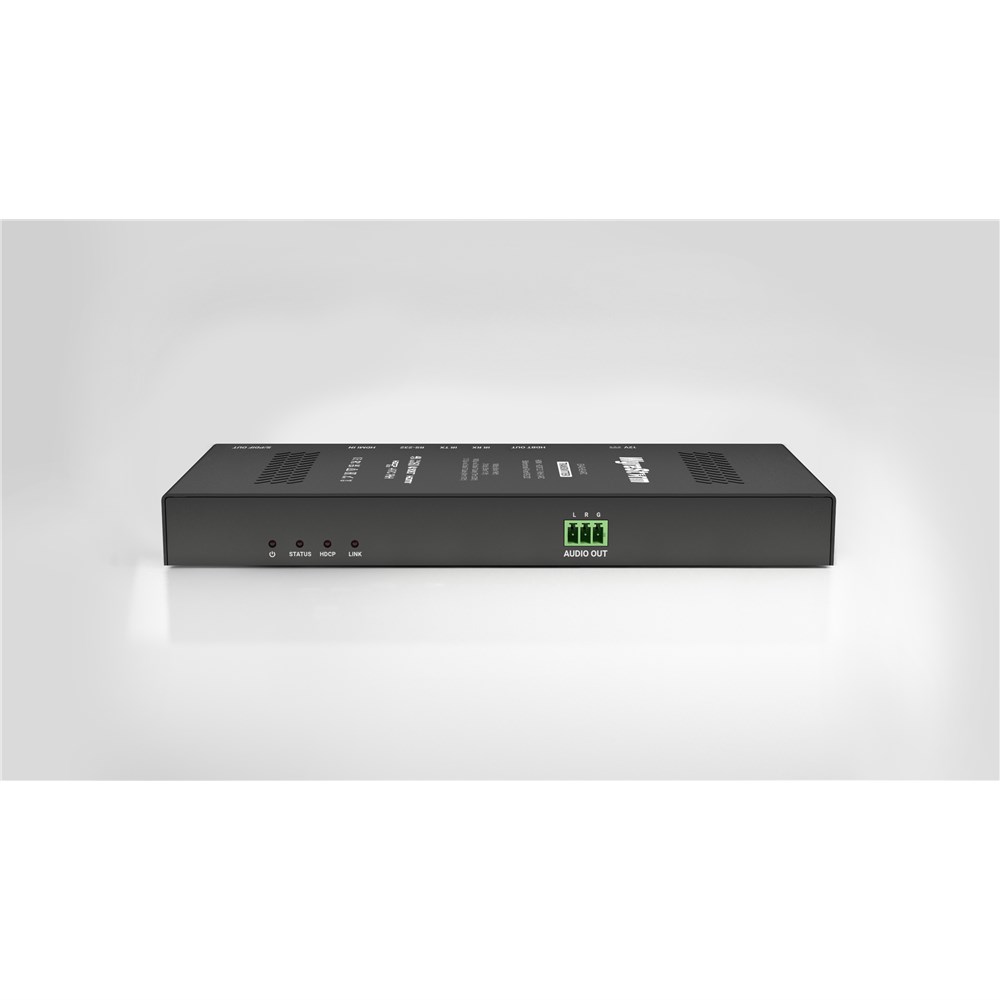

Analog 2ch audio breakout for legacy amplifier integration

SIMPLE SETUPS

Bi-directional PoC, IR, and RS-232 for simplified wiring and control.





Technical Specifications

AUDIO & VIDEO

Inputs

1x HDMI (TX), 1x HDBaseT (RX)

Outputs

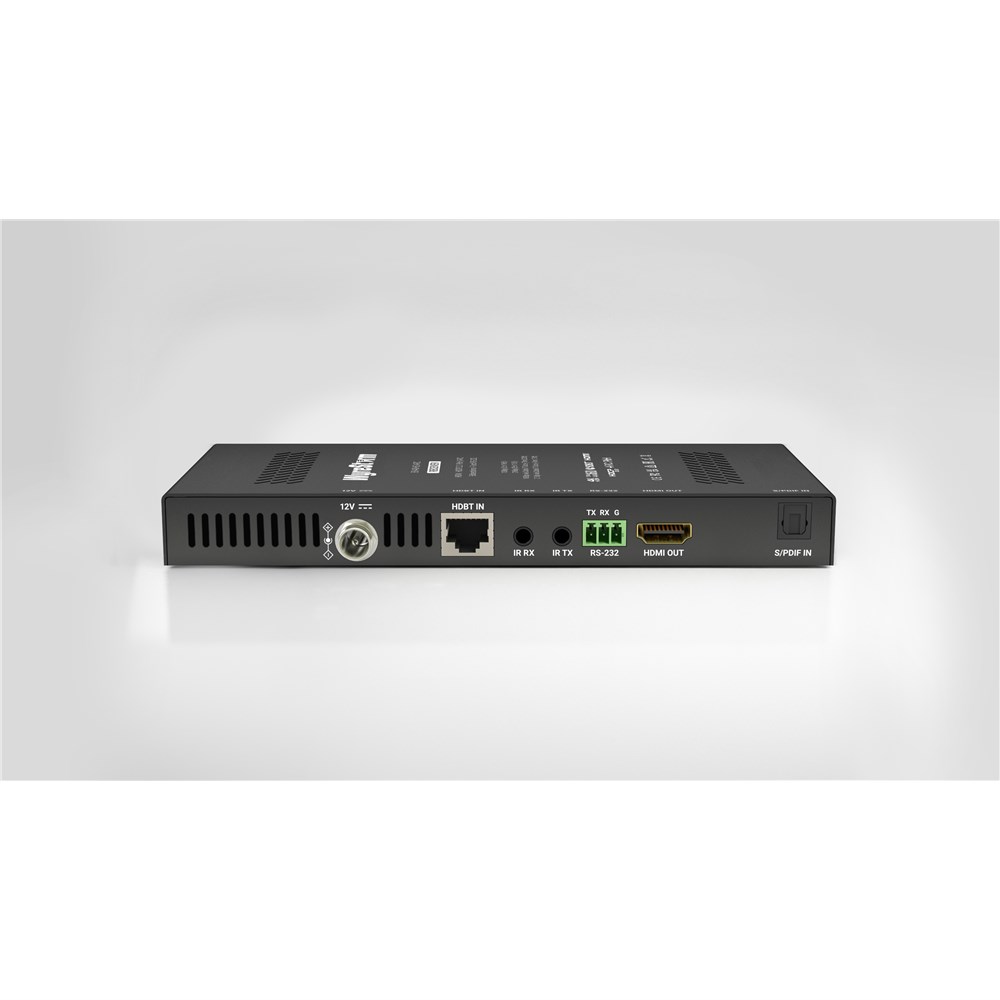

1x HDMI (RX), 1x HDBaseT (TX), 1x Toslink, 1x Analog 3-pin Phoenix

End to End Latency

<1ms

Resolutions Supported

800×600, 1024×768, 1280×768, 1280×800, 1280×960, 1280×1024, 1360×768, 1366×768, 1440×900, 1600×900, 1600×1200, 1680×1050, 1920×1080, 1920×1200, 3840×2160, 4096×2160

Input Signal Type

HDMI with HDCP 2.2

Maximum Pixel Clock

600 MHz

Maximum Data Rate

18Gbps

Video Resolutions (Max)

Up to 4096×2160 @ 60Hz 4:4:4

Audio Formats Supported

HDMI: PCM 2.0/5.1/7.1, Dolby TrueHD, Atmos, DTS:X
S/PDIF and ARC: PCM 2.0, Dolby Digital, DTS 5.1

Transmission Distance

Cat 5e/6:
35m/115ft 4K@60Hz 4:4:4
60m/197ft 1080P@60Hz
Cat 6a/7:
40m/131ft 4K@60Hz 4:4:4
70m/197ft 1080P@60Hz
HDMI:
Input/Output: 15m/49ft 1080p@60Hz
Input/Output: 10m/33ft 4K@30Hz 4:4:4
Input/Output: 5m/16ft 4K@60Hz 4:4:4

COMMUNICATION & CONTROL

HDMI

HDCP 2.2 | EDID | CEC (transparent on ARC)

RS-232

Bi-directional, 3-pin Phoenix

IR

Bi-directional, 3.5mm TRS

POWER

Power Supply

DC 12V/3A

Max Power Consumption

Receiver is powered by transmitter: 18.72W
Transmitter is powered by receiver: 18.96W
Transmitter and receiver are powered separately:
Transmitter: 8.4W
Receiver: 6.6W

ENVIRONMENTAL

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Humidity

10% to 90%, non-condensing

ESD Protection

Human-body Model: ±8kV (Air-gap discharge) / ±4kV (Contact discharge)

DIMENSIONS

Height x Width x Depth

21mm / 0.83in x 195mm / 7.68in x 94.8mm / 3.73in

Weight

Transmitter: 0.4kg/0.88lb
Receiver: 0.4kg/0.88lb

ENVIRONMENTAL

Safety and Emission

CE | FCC | RoHS | RCM | EAC | UKCA

Additional Features

  •  Uncompressed HDMI 2.0 video up to 4K@60Hz 4:4:4 over a single Cat6a/7 cable, with support for up to 70m at 1080p
  • Supports HDMI ARC and S/PDIF audio return from the display to the source
  • Bi-directional Power over Cable
  • Dolby Vision (LLDV), HDR10, HDR10+, HLG • CEC transparency for ARC
  • Supports HDR10, HDR10+, HLG, and Dolby Vision (low-latency)
  • EDID copy from display
  • Includes PSU, mounting hardware, IR cables, and Phoenix connectors

In the Box

  • 1x EX-40-H2-ARC Transmitter
  • 1x EX-40-H2-ARC Receiver
  • 1x 12V DC 3A Power Supply (US/EU/UK/AU)
  • 3x 3-pin Screw Down Male Phoenix Connectors
  • 1x IR Receiver
  • 1x IR Transmitter
  • 4x Mounting Brackets (2x TX | 2x RX)
  • 1x Quickstart Guide
