PTZ Cameras

Aver CAM550 Dual Lens PTZ Cam CAM550 Aver

Product Code: AF-CAM550

Brand
Aver
RRP $2,929.00


Quantity In Cart:
Unit of Measure
EACH



3 Year
Technical Specifications
Brands AVer
Native Resolution 4K
  • Details
  • Downloads
  • Where to Buy
  • Ordering

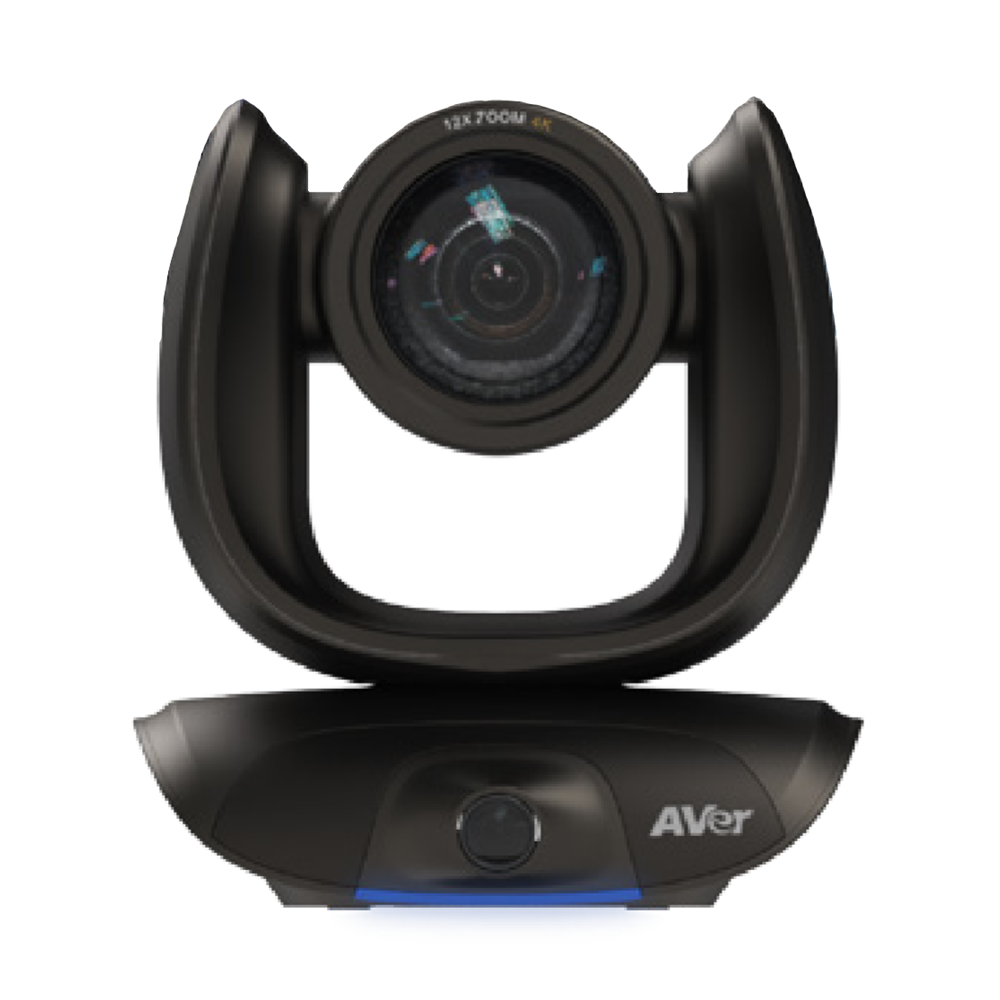

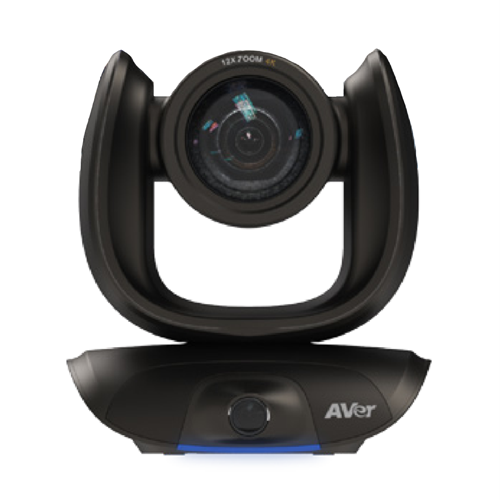

AVer CAM550


4K Dual lens PTZ Conferencing Camera

Product Specifications

Dual Camera

PTZ optical zoom lens

  • Image sensor: Sony 4K EXMOR, crystal clear in any lighting
  • Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
  • 24X Zoom*: 12X optical; 2X digital zoom
  • Wide field of view: DFOV 85°; HFOV 76°; VFOV 46°
  • Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)
  • Lens F#: 1.8 (wide) ~ 2.8 (tele)
  • AE, white balance: auto, manual override via PTZApp 2
  • True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions*
  • Minimum focus distance: 1.5m
  • Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)
  • Preset number: 10 via IR remote, 128 via RS232

Secondary fixed lens (AI lens)

  • Image sensor: Sony 4K EXMOR
  • Frame rates and resolution set according to PTZ lens settings
  • Wide field of view: DFOV 95°; HFOV 78°; VFOV 50°

Features

  • Dynamic auto framing: secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants.
  • Preset framing tracks both preset area and speaker*
  • Simultaneous 3-way output: USB, HDMI and IP connections
  • Gesture control provides intuitive camera controls
  • HDMI Picture in Picture (PIP) function
  • Smart gallery** function offers great visibility for individual participant in the meeting room
  • Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology** (One RJ45 cable transfers IP streaming to USB.)
  • Audio tracking support: Integration with 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link** function

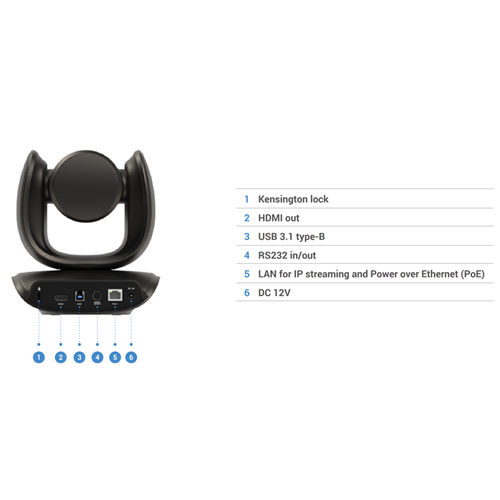

Connectivity

  • USB type-B 3.1 connector, backward compatible with USB 2.0
  • 12V/2A DC jack power adapter
  • Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
  • IP (RJ45)
  • HDMI
HDMI & PoE
  • HDMI 1.3: 1080p 30fps/ 60fps
  • PoE+: 802.3at


Video Format

  • YUV, YUY2, MJPEG
  • Network video compression format: H.264, H.265
  • Network protocol: RTSP, RTMP

USB

  • 3.1 Gen 1, backward compatible with USB 2.0
  • UVC 1.1 (USB video), UVC1.5*
*UVC1.5 utilizes a different platform environment and requires an extra FW upgrade. Please contact technical support for more details.

Control

  • IR remote control
  • VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
  • Remote side: VISCA over IP, IP (RJ45)
  • UVC plug and play
  • WebUI: Browser IP access via Chrome. (Not support IE)
  • OSD setting: HDMI out to TV monitor
  • PTZApp 2

Power Supply

  • AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
  • PoE+: 802.3 at

Free Applications for Meeting Collaboration (For Windows® and Mac® computers)

  • EZManager 2: Camera Central Management Software
    • Remotely group FW/SW upgrades, control the camera, and manage settings
  • PTZApp 2: Camera Settings Software
    • Smart gallery/Virtual USB streaming/Preset Link
    • View live video, participant metrics, and meeting-interval information
    • Enable Skype for Business far-end control
    • Upgrade firmware automatically/manually
    • Control the camera
    • Set parameters and adjust the camera image
    • View operation status, diagnose issues
  • EZLive: Broadcasting Software
    • Multi-camera real-time streaming, annotating, image capturing, and video recording

Environment Data

  • Operation temperature: 0 to 40°C
  • Operation humidity: 20% to 80%
  • Storage temperature: -20 to 60°C
  • Storage humidity: 20% to 80%

Dimensions

  • Package dimensions: 253(L)*253(W)*271(H) mm
  • Package weight: 4.8KG
  • Camera: 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg
  • Remote control: 200 x 50 x 121mm/90g

Package Contents

  • CAM550 unit
  • Power adapter (10 ft/3 m)
  • USB 3.1 type-B to type-A cable (3m)
  • Remote control
  • Mini DIN9 to mini DIN8 RS232 adapter cable
  • HDMI cable (3 m)
  • Wall mount bracket and screws
  • QR code card
  • Tripod screw
  • Drill paper

Optional Accessories

  • Mini DIN8 to D-Sub9 cable
  • Ceiling mount*
  • Foldable TV mount
  • USB2.0 type-B to type-A cable (5 m)
  • USB 3.1 Extension Cable (10 m/20 m/30 m)
*CAM550 is a dual lens camera and doesn’t support upside-down installation. For ceiling mounting, please purchase the AVer ceiling mount.

Security and Mount

  • Kensington lock
  • 1/4” tripod mounting screw
  • Camera wall-mount bracket included
  • Optional foldable TV mount
  • Optional ceiling mount

System Requirements

  • Windows® 7/10
  • MacOS X 10.7 or later
  • Google Chromebook™ version 29.0.1547.70 or higher

Hardware Specs

  • 3.2 GHz Intel® Core™ i5-4460 processor
  • 4 GB RAM or more
  • USB 3.1 port, backward compatible with USB 2.0

Compatible Applications

  • Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
