Collaboration systems

ADECIA Ceiling Array Mic White RM-CG-W Yamaha

Product Code: RY-RM-CGW

Brand
YAMAHA REVOLABS
RRP $6,819.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Yamaha
Product Category Collaboration systems
  • Details
  • Downloads
  • Where to Buy
  • Ordering

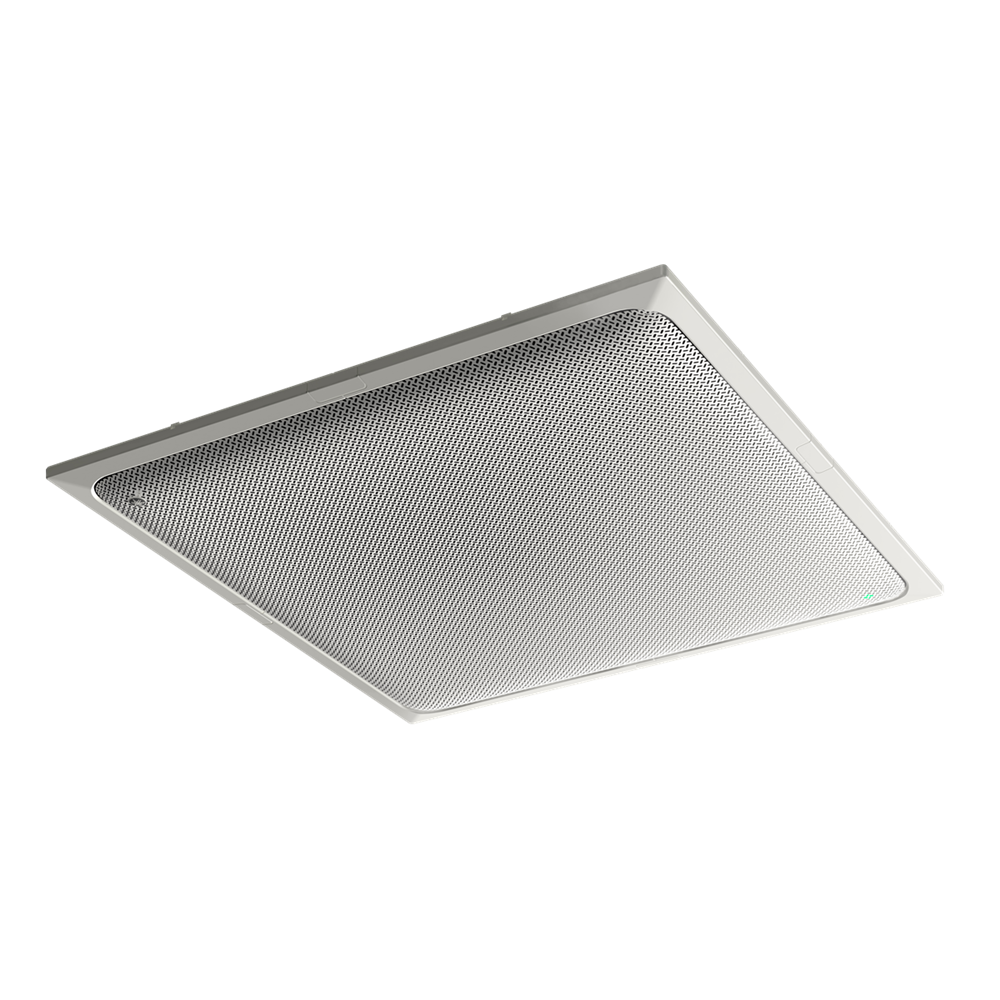

CEILING MICROPHONE (White)

A ceiling array microphone equipped with unique audio signal processing technology that enables high-quality communication

  • “Dynamic Voice Tracking” that scans for human voice
  • Four “Auto Tracking Beams” track simultaneous speech allowing for lively conversations
  • Utilizes innovative Yamaha technologies like Adaptive Echo Canceller, Automatic Gain Control, Noise Reduction, and Dereverberation
  • Automatic detection and configuration with Remote Conference Processor RM-CR
  • Standard network audio support for “Dante”
  • Utilizes one PoE+ network cable connection avoiding troublesome wiring and enabling audio control via Dante
  • Supports 3 types of mounting methods for use with a variety of ceiling conditions

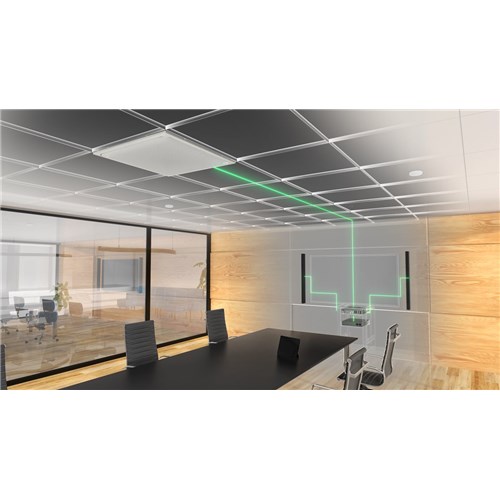

ADECIA Ceiling

A family of products designed to be easily installed and work seamlessly together to provide complete and customizable communications solutions for meeting spaces or classroom audio. The ADECIA ceiling microphone & line array speaker solution helps overcome challenges with implementation, configuration and room acoustics by providing all components required for a successful installation and automatic technologies that reduce set up time, costs and complexities. Watch our ADECIA video series and learn more about our new ceiling mounted microphone!

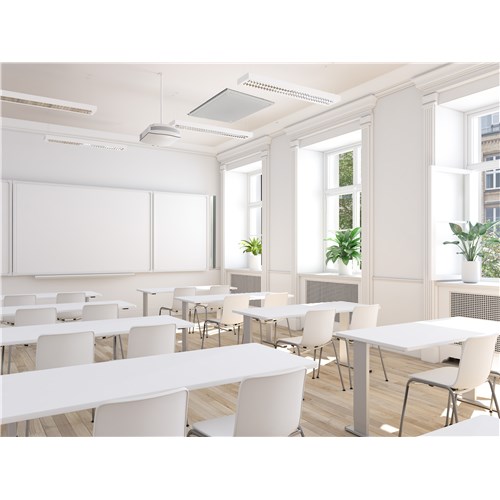

HYBRID CLASSROOM AUDIO
  • Touchless for added safety protocols
  • Easily managed remotely by AV/IT departments
  • Lecture capture + Voice-lift
  • Ability to connect to legacy products such as control systems, codecs, speakers
  • Freedom to move throughout classroom without sacrificing audio pickup

Best audio in shortest time:
  • Auto-detects installed components
  • Auto-configures the devices
  • Auto-optimizes audio performance for room audio environment (reverberation characteristics, echo behavior, speaker/mic position, and more)

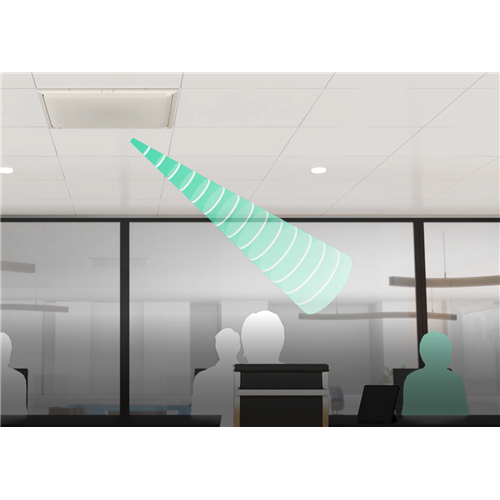

Dynamic, multi-beam tracking technology:
  • Constant live tracking beams search for voice when the conference room microphone and speaker system are in use
  • Supports lively discussions with multiple participants
  • No fixed lobes = no dead spots
  • Room set up flexibility – no need to preprogram lobes when design changes

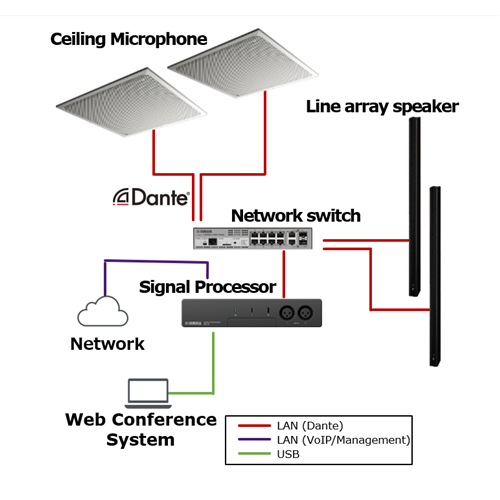

Easy install/set up:
  • Three-step guided configuration
  • No need to program fixed beams
  • Components utilize one network cable connection avoiding troublesome wiring
  • Integration into all audio environments: USB, analog I/O, Bluetooth, SIP telephony and Dante
  • Open API for integration with other Yamaha or 3rd-party components

RM CG GENERAL


Description
  • Ceiling Microphone
Colour
  • White
Dimensions (WxDxH)
  • W560×D560mm×H90mm(including protrusions/microphone panel: H22mm)
Weight
  • 5.6kg
Power requirements
  • PoE(IEEE 802.3af), DC 48V
Maximum Power Consumption
  • 7.2 W
In Operation
  • Temperature 0℃~40℃ Humidity 30%~90% (No condensation)
Storage
  • Temperature -20℃~60℃ Humidity 20%~90% (No condensation)
Indicator
  • Front Indicator(Mute/Unmute & Status) ・Network Port Indicator
Mount
  • Ceiling Mount (*can’t replace a grid ceiling panel.) Wire hanging VESA mount
Max device number with RM-CR
  • 2(Connection with other than RM-CR is not limited to this device)
Accessories
  • Construction description, (Guarantee), grillex1, screws for grille (M3x8mm)x5(*), screw coverx4, cutting template x1, Cringx1, screws for C ring x2, hanger anglex1, screws for hanger angle(M4x20mm)x5(*), terminal coverx1, safety wire x1,binding bandx1, clamp platex2 (*)including a spare respectively
Dust Protection
  • IP5X for dust protection(with junction cover)
Plenum Rating
  • UL2043(with junction cover)

Product Documents
