AV switching and distribution

This is a Special Order Item

4K60Hz SDVoE Fiber Transceiver 10GbE Dolby Vision & HDR Video Wall Multiview

Product Code: WY-NHD600TRXF

Brand
Wyrestorm
RRP $3,469.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type Extenders
  • Details
  • Downloads
  • Where to Buy
  • Ordering

NetworkHD™ 600 Series 4K60 4:4:4 10Gb SDVoE Fiber Transceiver


SKU: NHD-600-TRXF

The NHD-600-TRXF is a SDVoE fiber transceiver capable of lossless & latency-free 4K60 over a 10Gb network. The TRXF allows you to transmit and receive A/V simultaneous through a single device or be programmed to act as a dedicated TX or RX. The SFP+ connector supports up to 300m (984ft), 10Gbps transmission distance for extremely long reach commercial applications. 3 x High-Speed USB 2.0 ports allow extension for keyboard & mouse applications and even compatibility with webcams, touchscreens, and media storage.


Highlights

  • TRANSCEIVER
    One model to rule them all! As a transceiver the TRX can transmit and receive up to 4K60 video simultaneously. Additional settings also allow you to choose whether it is a TX, RX or TRX.
  • USB
    Got USB? The TRXF is equipped with 3 x High-Speed USB 2.0 ports for extension of webcams, touchscreens, data storage and more. Genlock mode allows for a lag-free experience.
  • FIBER
    Equipped with an SFP+ connector, transmit or receive 4K60 video up to 300m (984ft) with zero latency and lossless video using multi-mode fiber.
  • VIDEO WALL & MULTIVIEW
    Up to an 8×8 video wall can be processed with bezel and gap correction along with the ability to process multiview PiP up to 16 windows.

Features

  • Supports 4K UHD and DCI resolutions up to 60fps RGB or YUV 4:4:4
  • Supports Dolby Vision, HDR10 and HLG HDR formats and ITU-R BT.2020 and BT.2100 color spaces
  • Equipped with an SFP+ connector, transmit or receive 4K60 video up to 300m (984ft) with zero latency and lossless video using multi-mode fiber.
  • Capable of high-bitrate multichannel audio passthrough, including Dolby Atmos™ and DTS:X
  • HDCP 2.2 and HDCP 1.x support
  • 3x USB 2.0 ports for extension of keyboard/mouse, webcams, touchscreens & media storage
  • Powerful video scaling can match a connected display to the video source, leaving the original source content unaltered
  • Video resolution, framerate and color space conversion using SMPTE/ITU recommended methods
  • Genlock scaler mode for zero end-to-end latency
  • Supports seamless AV source switching via Fast Switch mode
  • Secondary video stream with alternate scaling options can be used for multiview source content
  • Fully featured multiview image compositing includes arbitrary source window placement, resizing, image duplication and image offset functions
  • Video wall processing including display bezel compensation
  • Balanced analog audio port can be configured as an input or output for a discrete audio stream or HDMI de-embedding
  • Bidirectional IP to Infrared / RS-232 functionality via the API or 3rd-party drivers
  • Auxiliary 1GbE channel for network connectivity of attached source devices
  • Powerful matrix functionality includes routing control of all audio, video, RS-232 and IR signals
  • Compatible with NHD-000-RACK4 for easy rack mounting
  • Secure A/V transmissions using AES encryption methods
  • *Preview streams not supported

Specifications

AUDIO AND VIDEO

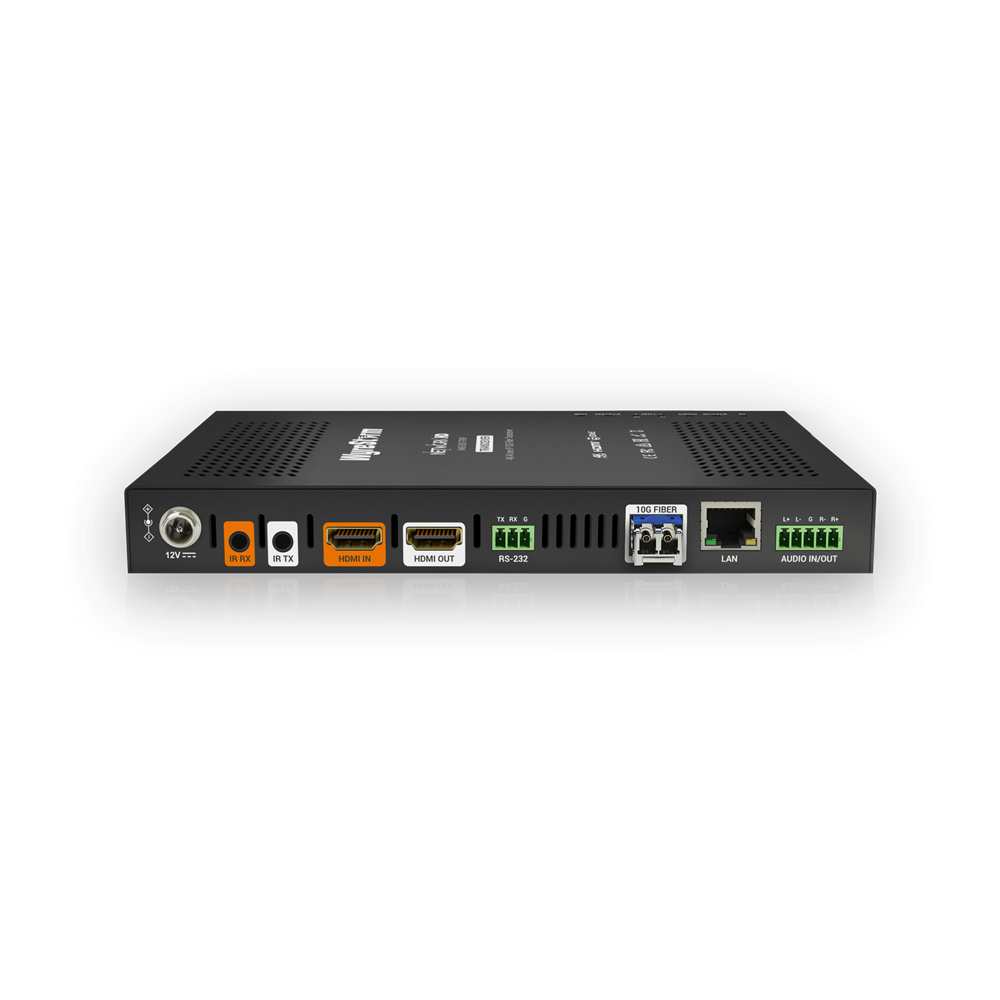

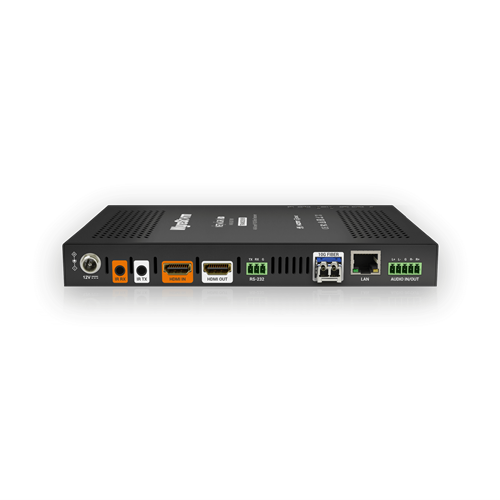

  • Inputs/Outputs
    • 1 x HDMI 2.0 input
    • 1 x HDMI 2.0 output
    • 1 x 5-pin balanced analog audio in/out
    • 1x 10Gb/s SFP+ GBIC
    • 10GBASE-SR: 300m using OM3 multi-mode
    • 10GBASE-LR: 10km using OM3 single-mode
  • Output Video Encoding
    • SDVoE Pixel Pipeline
  • Encoding Data Rate
    • 1080p@60Hz 8bit – 3.4Gbps
    • 4K UHD@30Hz 4:4:4 8bit – 6.4Gbps
    • 4K UHD@60Hz 4:4:4 8bit – 8.7Gbps (with light compression)
  • End to End Latency (Max)
    • Genlock Mode: Uncompressed = 30us, Compressed <120us
    • Fast Switch Mode: 1~2 video frames = min. between 16.7 – 33.4ms @ 60fps
  • Video Resolutions (Max)
    • 4096x2160p @ 60Hz 8bit 4:4:4 or RGB
    • 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
    • 3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
    • 1920x1080p @60Hz 12bit
  • Supported Standards
    • RGB | DCI
  • Maximum Pixel Clock
    • 600 MHz
  • 3D
    • HDMI 1.4b 3D: TnB, SbS, F.P

COMMUNICATION AND CONTROL

  • HDMI
    • HDCP 2.2 & 1.x compliant
  • Ethernet
    • 1 x 1GbE LAN 8-pin RJ45
  • RS-232
    • 1x 3-pin Phoenix Connector | 2 Way | Broadcast | Routed | API Programmable
  • Infrared
    • 1 x IR TX 3.5mm TS Mono Jack | API Programmable
    • 1 x IR RX 3.5mm TRS Stereo Jack | API Programmable

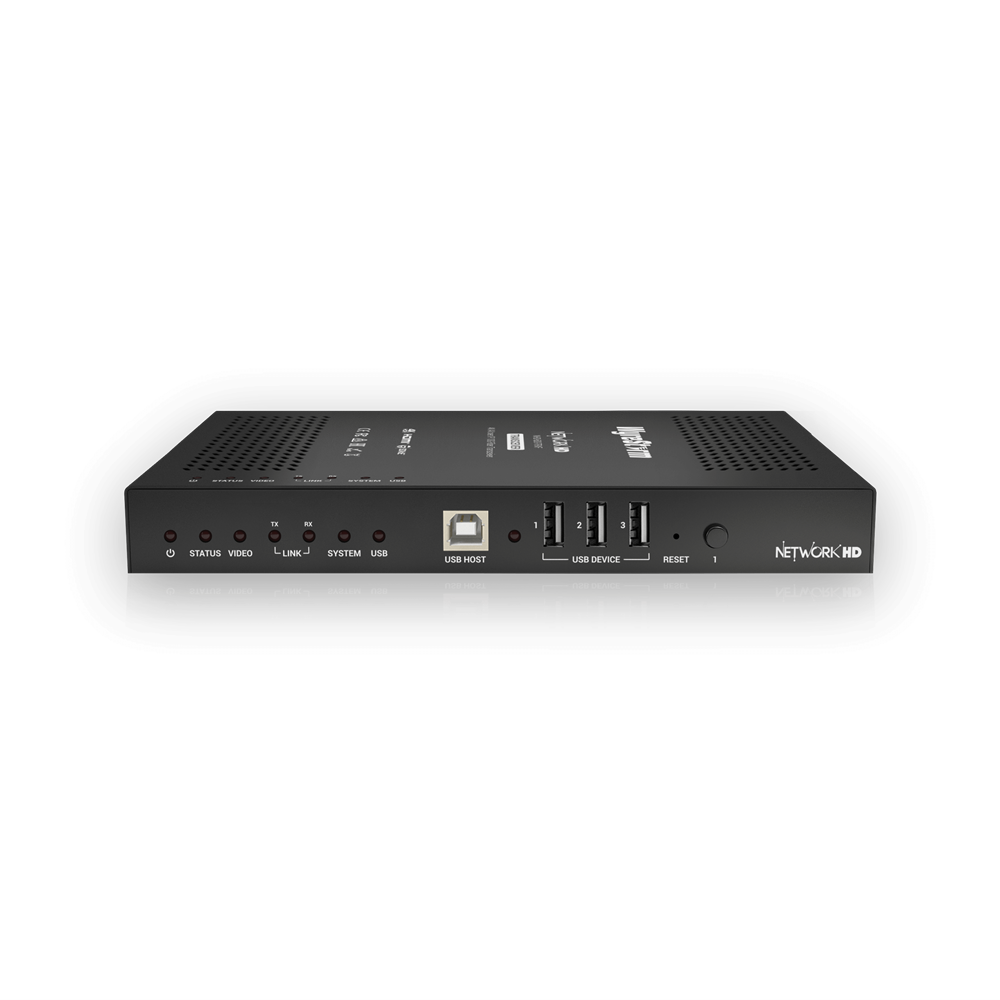

  • USB
    • 3 x USB 2.0 Type A
    • 1 x USB 2.0 Type B Host
    • USB Bandwidth: 480Mbps

POWER

  • Power Supply
    • 12V 2A DC PSU
  • Max Power Consumption
    • Max: 24w
  • Average:
    • 10w

ENVIRONMENTAL

  • Operating Temperature
    •  +32°F ~ +104°F (0°C ~ +45°C) | 10% ~ 90% non-condensing
  • StorageTemperature
    •  -4°F to ~ 140°F (-20°C ~ +70°C) | 10% ~ 90% non-condensing
  • Maximum BTU
    • 34 BTU/hr

DIMENSIONS & WEIGHT

  • Length x Width x Height
    •  140mm x 215mm x 25mm
  • Weight
    • 1.75lbs

REGULATORY

  • Safety and Emission
    •  CE | FCC | RoHS | EAC | RCM
