4K30Hz IP extender set 1Gbe Zero Latency , USB 2.0 mutli-channel audio

Product Code: WY-EX100KVMIP

Brand
Wyrestorm
RRP $1,249.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Input/output type USB
Product type Extenders
  • Details
  • Downloads
  • Where to Buy
  • Ordering

4K@30Hz IP-Based KVM Extender

SKU: EX-100-KVM-IP

The EX-100-KVM-IP, a top-tier KVM over IP solution, excels in transmitting 4K video at 30Hz with virtually zero latency, making it an essential tool in professional environments. It stands out for its ability to ensure efficient, reliable performance across various settings, including corporate, educational, and specialized AV scenarios. Its advanced features cater to the needs of high-resolution displays and real-time interactions, enhancing the overall user experience in demanding and dynamic professional contexts.

SUPPORTS 4K@30Hz RESOLUTION WITH ULTRA-LOW LATENCY (<1ms)
This EX-100-KVM-IP delivers high-definition 4K video quality at a smooth 30 frames per second, coupled with an ultra-fast response time of less than 1 millisecond. This combination is crucial for applications that require both high visual fidelity and real-time interaction, such as video conferencing or dynamic digital signage.

USB 2.0 OVER IP AND BUILT-IN USB HUB
The inclusion of USB 2.0 over IP functionality allows for easy extension of USB devices over the network. Additionally, the integrated USB hub supports direct connection of multiple peripherals, streamlining workstation setups and enhancing user convenience in diverse settings, from office environments to interactive kiosks.

EFFORTLESS SETUP AND USER-FRIENDLY OPERATION
The EX-100-KVM-IP is plug-and-play use with zero configuration required, offering hassle-free setup and immediate operation out of the box. This feature makes it exceptionally user-friendly, particularly in fast-paced or non-technical environments.

LONG-RANGE CONNECTIVITY OVER 1G NETWORKS
With its capability for unlimited distance transmission over a 1G network, the EX-100-KVM-IP is ideal for large-scale settings requiring long-range connectivity.

Additional Features

  • Supports 4K@30Hz resolution
  • Ultra-low latency (<1ms)
  • USB 2.0 over IP support
  • Supports HDCP1.4

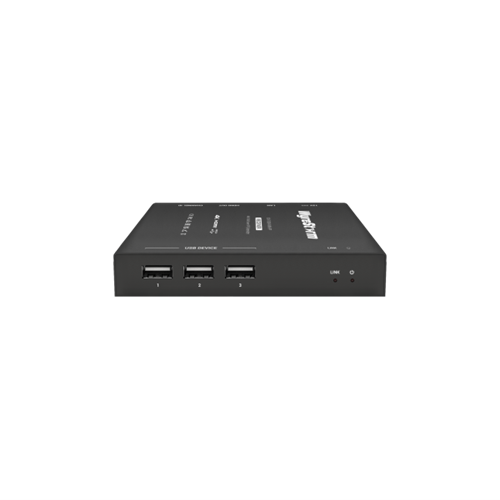

  • Built-in USB 2.0 hub
  • HDMI inputs and outputs
  • Supports EDID limited copy
  • Multi-channel audio support
  • Easy installation and versatile application
  • Durable and compact design
  • Compliance with global certifications (CE EMC, FCC, RCM, RoHS)
  • Unlimited distance transmission over 1G network
  • Plug-and-play with zero configuration
  • Pin DIP switch setting for up to 16 extenders sets to work in the same network.

Technical Specifications

AUDIO & VIDEO

  • Inputs
    • ENCODER
      • 1x HDMI: 19-pin type A
    • DECODER

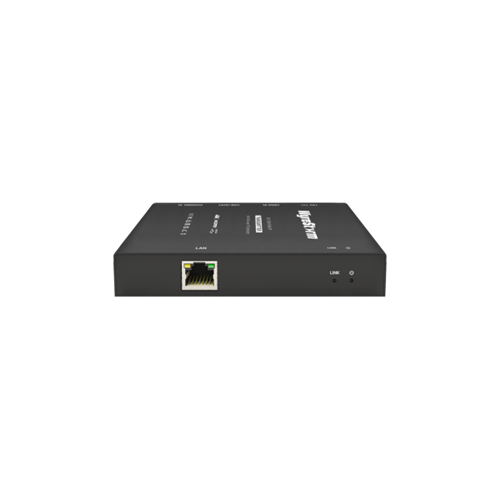

      • 1x LAN: 8-pin RJ-45 Female
  • Outputs
    • ENCODER
      • 1x LAN: 8-pin RJ-45 Female
    • RECEIVER
      • 1x HDMI: 19-pin type A
  • Audio Formats: PCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1ch, DTS-HD High Resolution Audio, DTS-HD Master Audio
  • Output Video Encoding: Compressed IP
  • Encoding Data Rate: 9Gb/s
  • End to End Latency (Max): 80us
  • Video Resolutions (max):
    • 1920x1080p @60Hz 12bit
    • 3840x2160p @30Hz 8bit
    • 4096x2160p @30Hz 8bit
  • Supported Standards: DCI | RGB
  • Maximum Pixel Clock: 300MHz

COMMUNICATION & CONTROL

  • HDMI: HDMI 1.4b | HDCP 1.4
  • USB: Not more than 0.5A per USB port is recommended

POWER

  • Power Supply: 12V 1A
  • Max Power Consumption: 2.5W (per unit)

In the Box

  • 1x EX-100-KVM-IP Extender Set
  • 2x DC 12V Power Supply (US, EU, UK, AU)
  • 4x Mounting Brackets (with screws)
  • 1x 1.5m USB Type B Cable
  • 1x QuickStart Guide
