4K30 Hz NetworkHD encoder H.264/H.265 compatible with 110 series

Product Code: WY-NHD120TX

Brand
Wyrestorm
RRP $1,229.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type Extenders
  • Details
  • Downloads
  • Where to Buy
  • Ordering

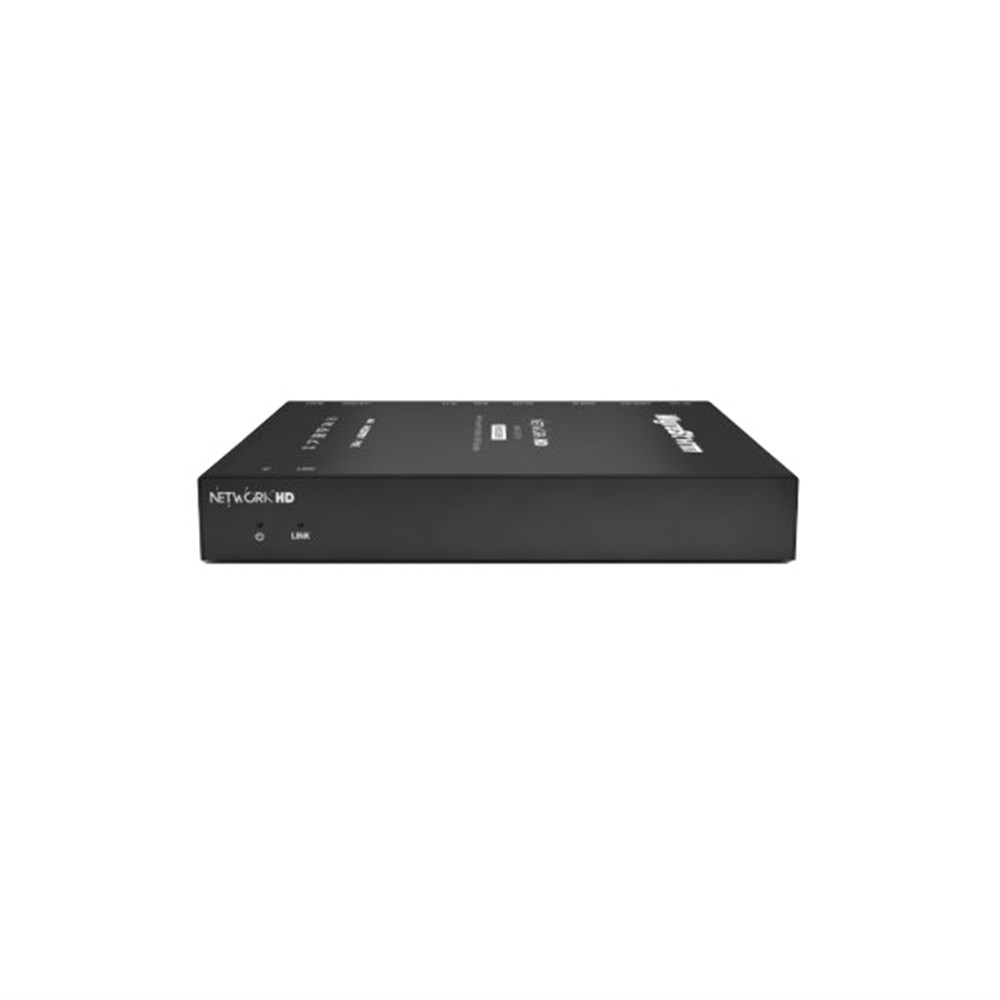

NetworkHD™ 120 Series 4K30 4:2:0 Encoder

The NetworkHD 120 series takes the award-winning 100 series and elevates to a new level. The 120 series components support both video encoding/decoding. With 4K resolution, video transmissions look better than ever and use up to 6x less bandwidth. AV stream are fully secure over the network using AES 128-bit encryption methods, ensuring any sensitive data cannot be maliciously accessed. Of course, the series would not be complete without retaining the powerful video wall and Multiview processing. The 120 series does one better by adding screen rotation and mosaic video wall ability.


Features

  • Supports up to 4K @ 30Hz video content
  • Support all SD and HD formats – including interlaced content
  • Low bandwidth or high-quality transmission methods. Low latency ~ 80ms. High-quality ~250ms
  • Analog audio de-embed for easy connection to external audio DSP or amplifier
  • Image scaling – use mixed resolution displays throughout an installation
  • Seamless video switching – no black screens or freeze frames
  • Hugely scalable I/O, utilizing multicast technology
  • Flexible IP address settings: AutoIP/Static/DHCP
  • Customizable CEC, IR or RS-232 control of connected devices
  • Up to 16×16 video walls with image scaling, bezel compensation and rotation
  • Mosaic video walls for custom screen orientation.
  • Custom “No Source” idle image upload for branded down time
  • Breakaway, independent routing of all video, audio, IR, and RS-232 streams
  • Infrared signal generation via API – supports Hex Global Cache format
  • Batch firmware update and batch settings functions offers a massive reduction on installation times
  • HDCP 2.2 compliant
  • IEEE 802.3af PoE compliant PD
  • Includes Wall and Rack mounting brackets


TAILORED FOR MULTIPLE MARKETS
The NetworkHD™ 100 Series utilizes low bandwidth, infinitely scalable technology with the addition of powerful video wall support up to 16×16 for the best all-round solution for commercial AV installations. A 100 Series encoder can either be paired with a 100 Series decoder for matrix switching to individual screens or for video wall decoding, with both decoders including HDMI and analog audio breakout outputs, or an NHD-150-RX decoder for multiview monitoring.

Low Bandwidth Encoding
The NHD-120-TX can encode AV signal using low bandwidth compression technology. Using this technology provides incredibly efficient video streams.

4K Resolution
The NHD-120-TX is now supporting 4K content that ensures compatibility with the HDMI v1.4 HDCP 2.2 video source, while a built-in scaler ensures hassle-free mixing of the latest 4K displays and 1080p screens within an installation.

AES Encryption
Security is key in today’s world. The NetworkHD 120 series support AES 128-bit AV encryption over the network. Data sent from an NHD-120-TX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd-parties.

Powerful Routing Engine
Boasting the ultimate in signal flexibility, the 120 Series can discretely deliver audio, infrared, and RS-232 streams separate to the video via a modular IP network. True signal breakaway can create custom assignments.

SECURITY
Equipped with the latest security protocols including SSH, TLS and HTTPS. Data and communications from the 120 series in encrypted end-to-end.

TWO TRANSMISSION METHODS
Low bandwidth or high-quality transmission methods. Low latency transmission methods of 150ms and high-quality of 300ms.

NHD CONTROL APP COMPATIBLE
Compatible with the NetworkHD Touch and Companion Control apps. Control source, matrix and video wall switching with preview streams of each encoder.

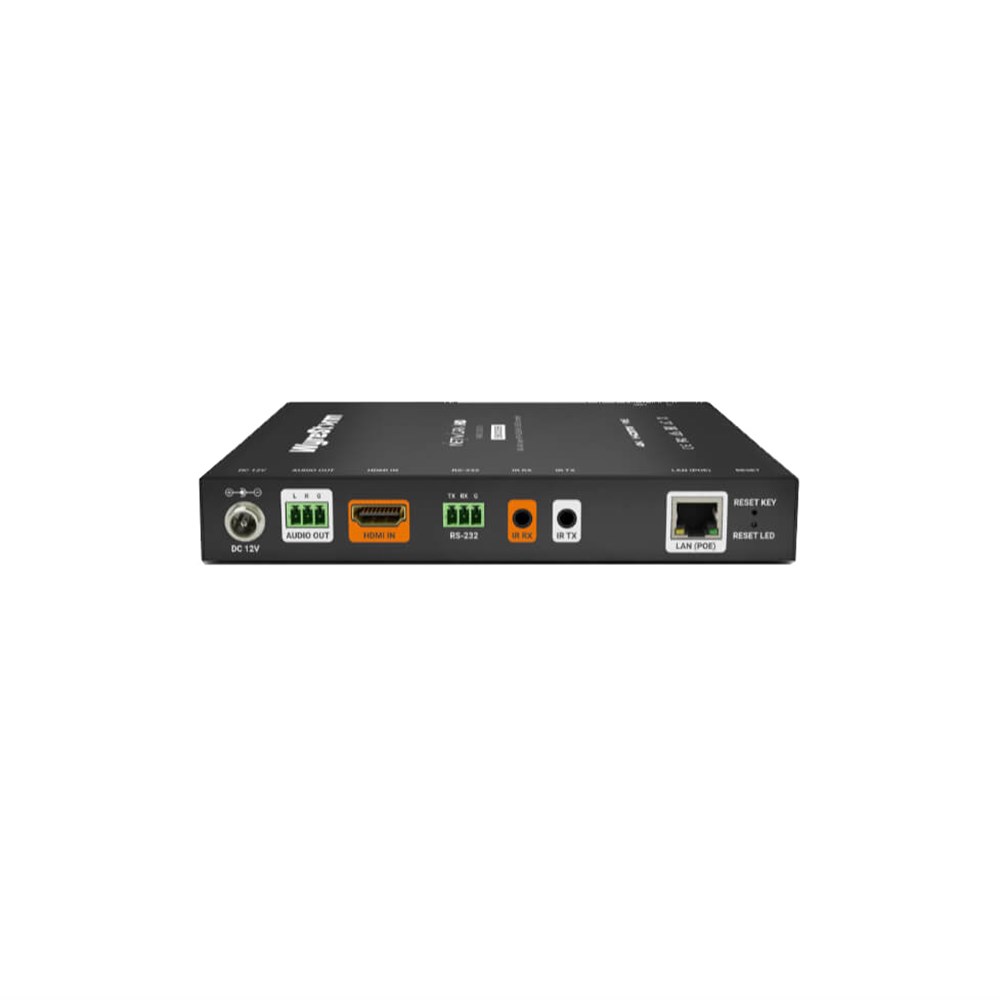

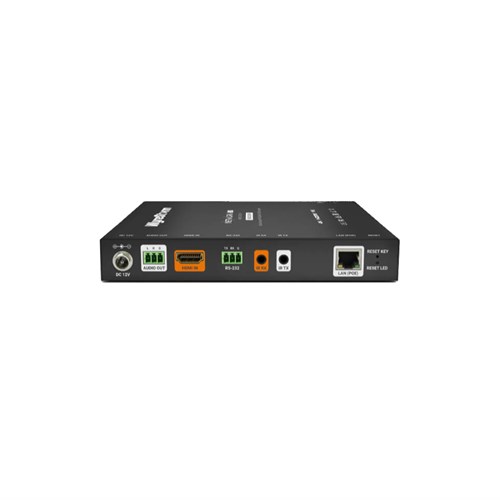

Specifications

AUDIO & VIDEO
  • Inputs
    • TX: 1 x HDMI 19-pin HDMI type A
    • RX: 1x 8-pin RJ-45 female | 10/100Base-T
  • Outputs
    • TX: 1x 3-pin Phoenix Analog Audio (de-embed from HDMI input)
    • RX: 1x HDMI 19-pin HDMI type A, 1x 3-pin Phoenix Analog Audio
  • Both HDMI and Analog outputs allow discrete audio routing from any available NHD-120-TX on the same network.
  • End to End Latency
    • 1080p: High Quality Mode: ~250ms, Low Latency Mode: ~80ms
    • 4K: High Quality Mode: ~300ms, Low Latency Mode: ~150ms
  • Audio Formats:
    • LPCM/MPEG4 AAC stereo, 48KHz
  • Video Resolution (Max):
    • 1920x1080p @ 60Hz
    • 3840x2160p @ 30Hz 4:2:0 8bit
  • Maximum Pixel Clock:
    • 297MHz
COMMUNICATION & CONTROL
  • HDMI:
    • HDMI 1.4| HDCP 2.2 | EDID | CEC
  • RS-232:
    • 1x 3-Pin Phoenix – API controlled from CTL
  • LAN:
    • 1x 8-pin RJ-45 female | 10/100Base-T | PoE 802.1af
  • IR:
    • 1x IR TX: 3.5mm TS Jack Socket
    • 1x IR RX: 3.5mm TS Jack Socket
    • IR signals can be bi-directional passthrough or via API commands from NHD-000-CTL for routable IR to discrete TX/RX devices
  • Security Protocols
    • AES 128 | SSH | TLS | HTTPS
POWER
  • Power Supply:
    • 12V DC 1A | 802.3af PoE Compliant
  • Max Power Consumption:
    • 3.6W (DC adapter)

In the Box

  • 1x NHD-120 Encoder or Decoder
  • 2x 3-pin Terminal Block
  • 2x Wall Mounting Brackets
  • 2x Rack Mounting Brackets
  • 1x IR Transmitter
  • 1x IR Receiver
  • 1x Quickstart Guide
