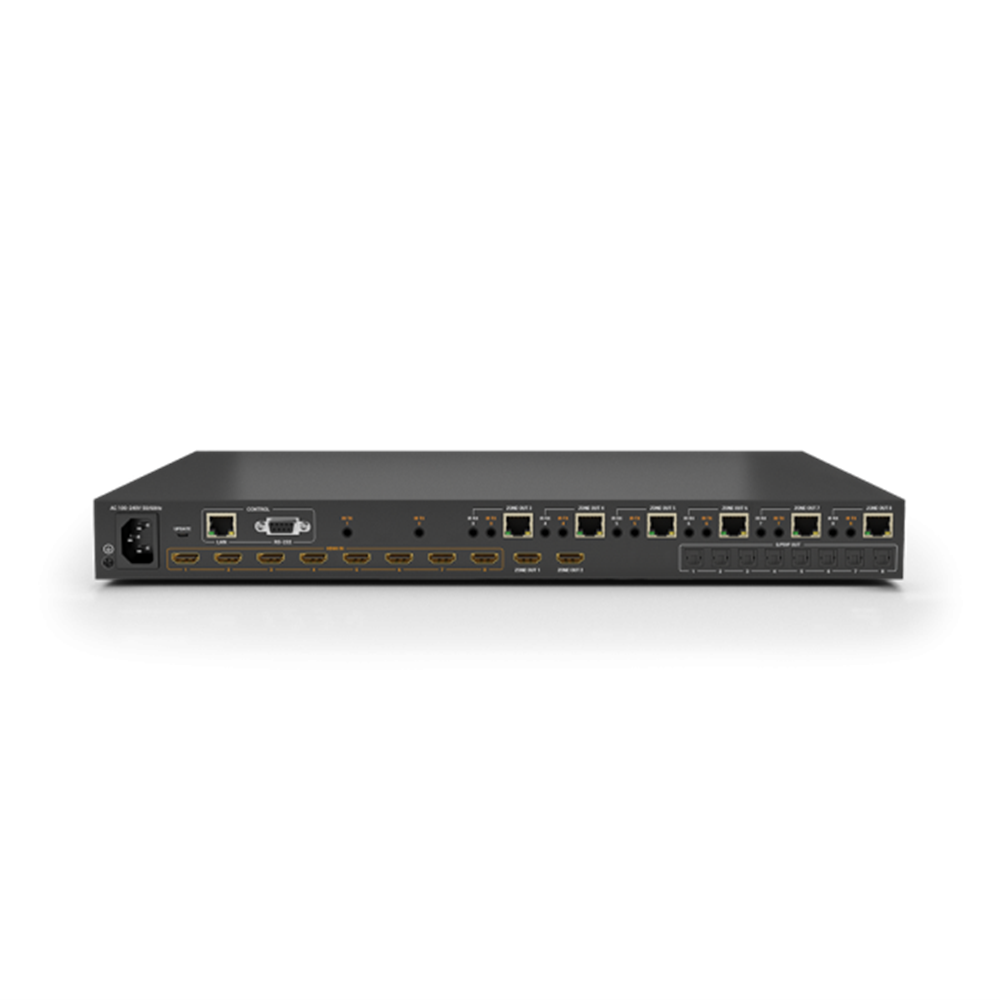

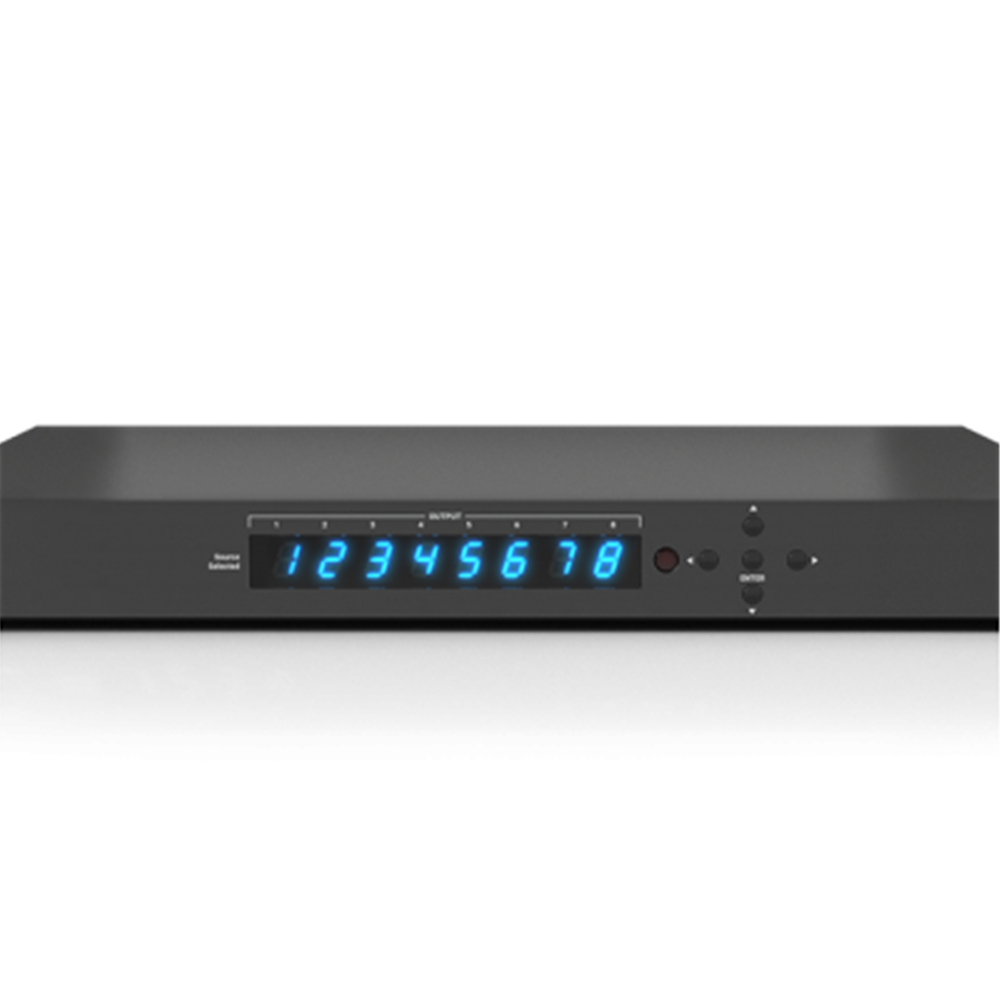

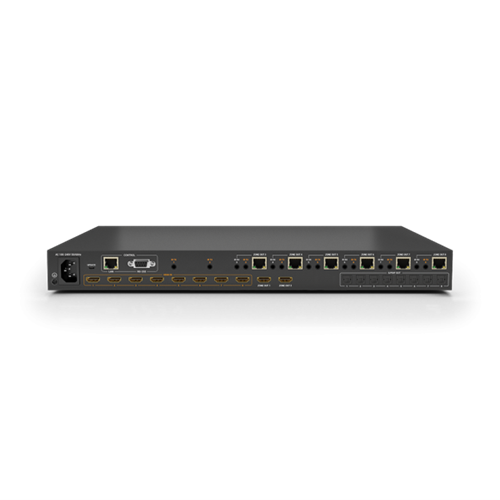

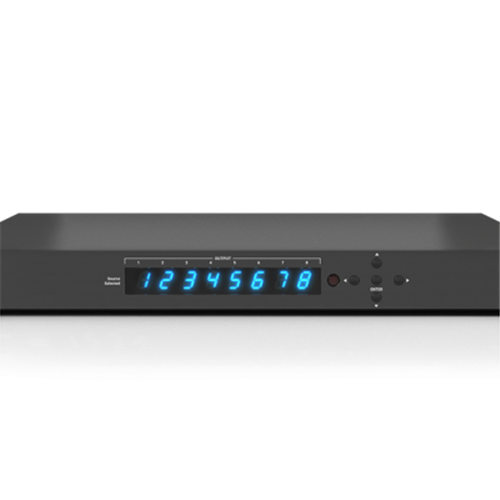

An established leader in AV matrix solutions, WyreStorm introduces an 8×8 form factor as a convenient kit for the first time. Offering transmission of HDMI content up to 4K UHD & HDR content to 35m/115ft, pairing HDBaseT with WyreStorms powerful crosspoint HDMI switching chipset. The EXP-MX-0808-KIT has 6 HDBaseT zone outputs with PoH and 2 switched HDMI outputs which can be paired with WyreStorms HAOC hybrid optical HDMI cables or any extender for transmission via HDBaseT or OM3 fiber. The EXP-MX-0808-KIT doesn't stop there, offering zone audio breakout via S/PDIF, CEC triggering for all connected screens and the A/V mute function enhances the offering for the modern home or commercial installation.

4K UHD AND HDR SUPPORT

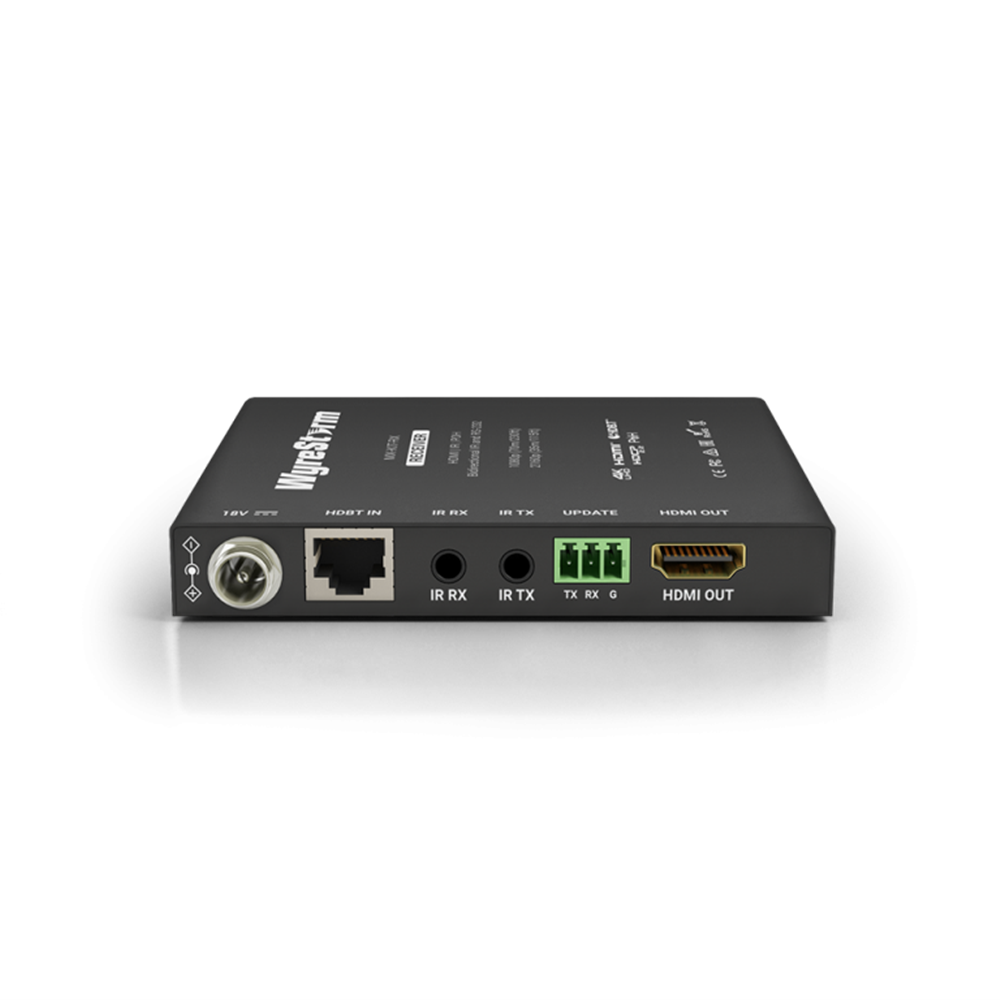

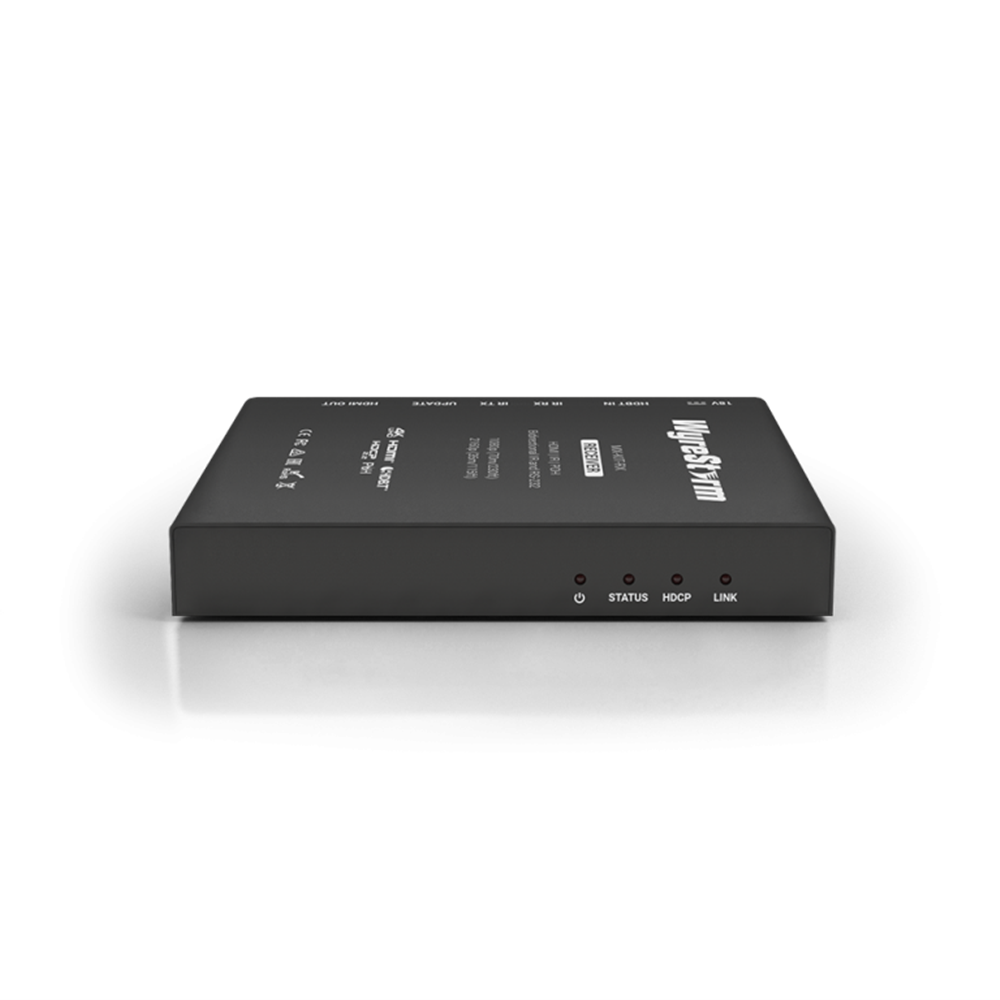

Small in price yet big on specification, this 8×8 kit can handle current video content up to 4K/60 4:2:0 covering a majority of current source devices, even supporting 10-bit HDR content at up to 30Hz and multi-channel audio. Powerful HDBaseT technology sends this, IR control and PoH for the included recievers up to 35m/115ft.

DE-EMBEDDED AUDIO
With audio functionality to match its video capability, the 8×8 kit has the ability to extract audio signals from the output, following the zone. Having S/PDIF connectivity means having the flexibility to send multi-channel 5.1 audio to local AVR’s or downmix to stereo using the EXP-CON-DAC-D.

CEC TRIGGERING
Working automatically on signal presence or triggered via the API, this 8×8 kit can send power trigger commands to all compatible connected screens or projectors meaning an integrated autonomous control solution.

A/V MUTE FUNCTION
Certain applications in the residential, education and commercial markets don??t always require a source to be routed through to an output. The 8×8 kit makes it possible to mute the video output as well as the audio, meaning that the HDMI signals to the zones can be independently switched off via the API

• Content up to 4K/60 4:2:0 8-bit or 4K/30 4:2:0 10-bit
• The latest HDR standards, including 30Hz HDR-10 & Dolby Vision
• HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
• HD Multichannel audio up to DTS:X and Dolby Atmos to all outputs
• True 8×8 matrix with 6 HDBaseT zones and 2 switched HDMI outputs
• HDBaseT enables 60Hz 4K UHD content (8-bit) to be sent over HDBaseT to 35m/115ft
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices (up to 9Gbps or 4K/30)
• 8 assignable Toslink outputs allow audio to be independently de-embedded from outputs or inputs
• Automatic (signal sensing) or manual (API operated) CEC power triggering of all connected screens or projectors (CEC compatibility required)
• A/V Mute function gives complete distribution control to a user allowing the signal to any zone to be independently switched off
• SmartEDID feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
• Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
• Embedded WyreStorm WebUI enables simple source switching and installer set-up & configuration
• WebUI includes full EDID management to copy EDID from connected devices
• Independent user control interface with separate password-protected installer settings
• Personalise switching interface with source and output labelling
• Hide unused I/O for cleaner appearance and navigation
• WebUI includes full EDID management to read, copy, store or import EDID from connected devices
• Assign a different EDID to each connected source device
• API triggered standby mode puts unit into low power state during downtime
• Flexible control options ?C front panel buttons, infrared remote control, local IR, RS-232, Telnet or WebUI
• Simple switching matrix remote control included, which can also be learned into a universal remote handset to allow the control of multiple devices from one handset
• 2-way IR for far-end device control from control system or source control from a zone.
• Compact 1U chassis with adjustable depth rack mounting brackets included
• US, UK, EU & AU Power cables included
• Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
• Transmit content from HDMI outputs 1&2 up to 50m/164ft using a WyreStorm HAOC HDMI cable
