AV switching and distribution

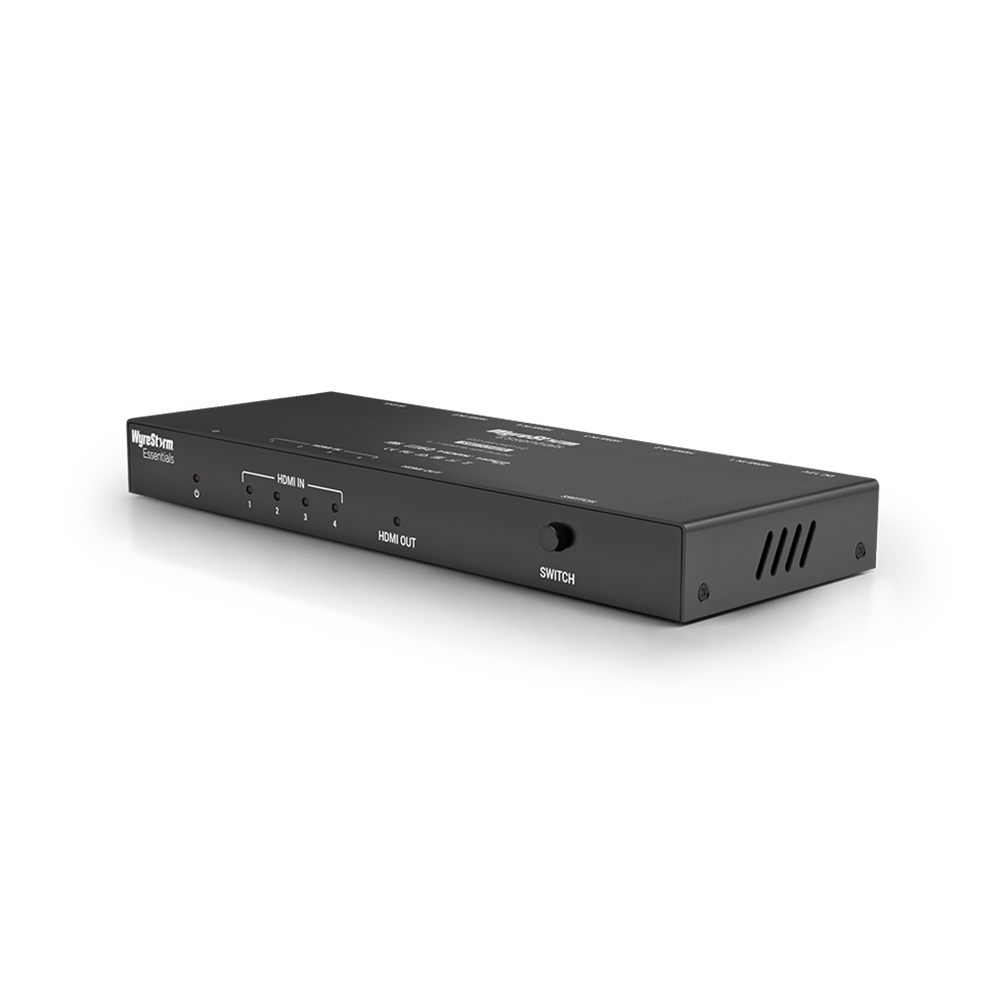

4 X 1 HDMI Switcher 4K HDR 18Gbps Dolby vision

Product Code: WY-EXPSW0401H2

Brand
Wyrestorm
RRP $219.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type Switchers
  • Details
  • Downloads
  • Where to Buy
  • Ordering

WyreStorm Essentials™ 4K HDR 4×1 HDMI Switcher with Auto-Switching, HDCP 2.2 & Remote


SKU: EXP-SW-0401-H2

The WyreStorm EXP-SW-0401-H2 is a powerful plug-and-play 4K switcher solution. With up to 18Gbps pure HDMI support, which allows up to four 4K HDR sources to be routed to a single display. The EXP-SW-0401-H2 is capable of auto switching, giving the user the convenience of simply turning on their favorite device without the requiring manual intervention. Furthermore, the EXP-SW-0401-H2 is equipped with signal compensation, allowing an extender or splitter to connect to its output without degrading or delaying the signal.

  • AUTO SWITCHING
    WyreStorm’s Essentials line of switchers follows the last in first out rule when it comes to auto-switching, making this a convenient feature when a new source is introduced.
  • PLUG AND PLAY
    A trend you may notice is the plug-and-play features WyreStorm’s Essentials product line possesses and it doesn’t stop at our switchers. You can find the same auto EDID and HDCP negotiation found in other Essentials products, but specifically signal regeneration is what makes WyreStorm’s Essentials switchers the king of plug-and-play!
  • SIGNAL REGENERATION
    While the EXP-SW-0401-H2 is a stand-alone device, sometimes wiring to the display is too long for a standard HDMI cable, or maybe there are additional displays added. Because of its signal regeneration feature, additional devices can be connected to the output of the switch, like an extender set or splitter, all without signal delay or degradation.
  • SLIM BY DESIGN
    Slim design allows discrete placement, but sleek enough to show off in open space.

Features

  • A true plug-and-play HDMI switcher, supporting up to four 4K HDR sources to one screen
  • Compatible with the latest HDR standards, such as HDR10, HLG and Dolby Vision
  • HDCP 2.2 compliant
  • Automatic input cable equalization and signal regeneration eliminates signal degradation
  • Slim design allows discrete placement, but sleek enough to show off in open spaces

Specifications

AUDIO AND VIDEO
  • Inputs:    4x HDMI In: 19-pin type A
  • Outputs:    1x HDMI Out 19-pin HDMI type A
  • Video Encoding:    HDMI | TMDS
  • Encoding Data Rate:    NA
  • End to End Latency:    NA
  • Video Resolutions (Max):
    Video Resolutions Video Resolutions
    1920x1080p @60Hz 16bit 7m/23ft
    3840x2160p @60Hz 8bit 4:2:0 3m/12ft
    4096x2160p @60Hz 12bit 4:2:2 Dolby Vision/HDR10 3m/12ft
  • Supported Standards:    DCI | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020 | BT.2100
  • Maximum Pixel Clock:  600MHz
  • Color Depth:    12bit
COMMUNICATION AND CONTROL

  • HDMI:    HDCP 2.2 | EDID | DVI-D supported with adapter (not included)
  • IR:    1x IR Ext. Port
  • Push Button:    Front Panel Push Button
POWER
  • Power Supply:    12V DC 1A
  • Max Power Consumption:    3.2W
ENVIRONMENTAL
  • Operating Temperature:    0 ~ + 45°C (32 ~ + 113 °F), 10% ~ 90%, non-condensing
  • Storage Temperature:    -20 ~ +70°C (-4 ~ + 158 °F), 10% ~ 90%, non-condensing
  • Maximum BTU:    10.92 BTU/hr
DIMENSIONS AND WEIGHT
  • Rack Units/Wall Box:    <1U
  • Height:    16mm/0.62in
  • Width:    175mm/6.9in
  • Depth:    66.2mm/2.6in
  • Weight:    0.25kg/0.55lbs
REGULATORY
  • Safety and Emission:    CE | FCC | RoHS | EAC | RCM
